Engine Controls

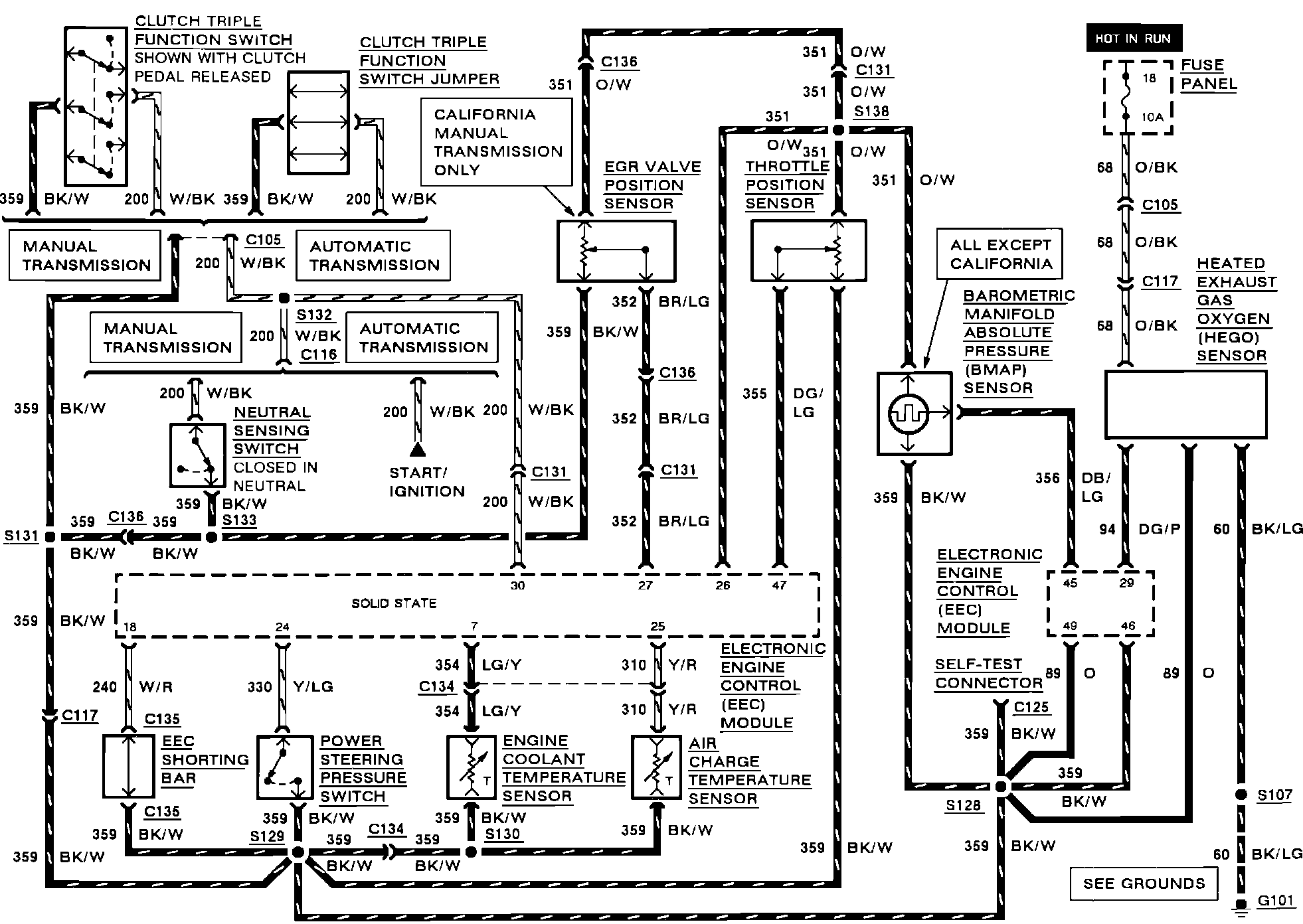

Fig. 14a Electronic Engine Controls:

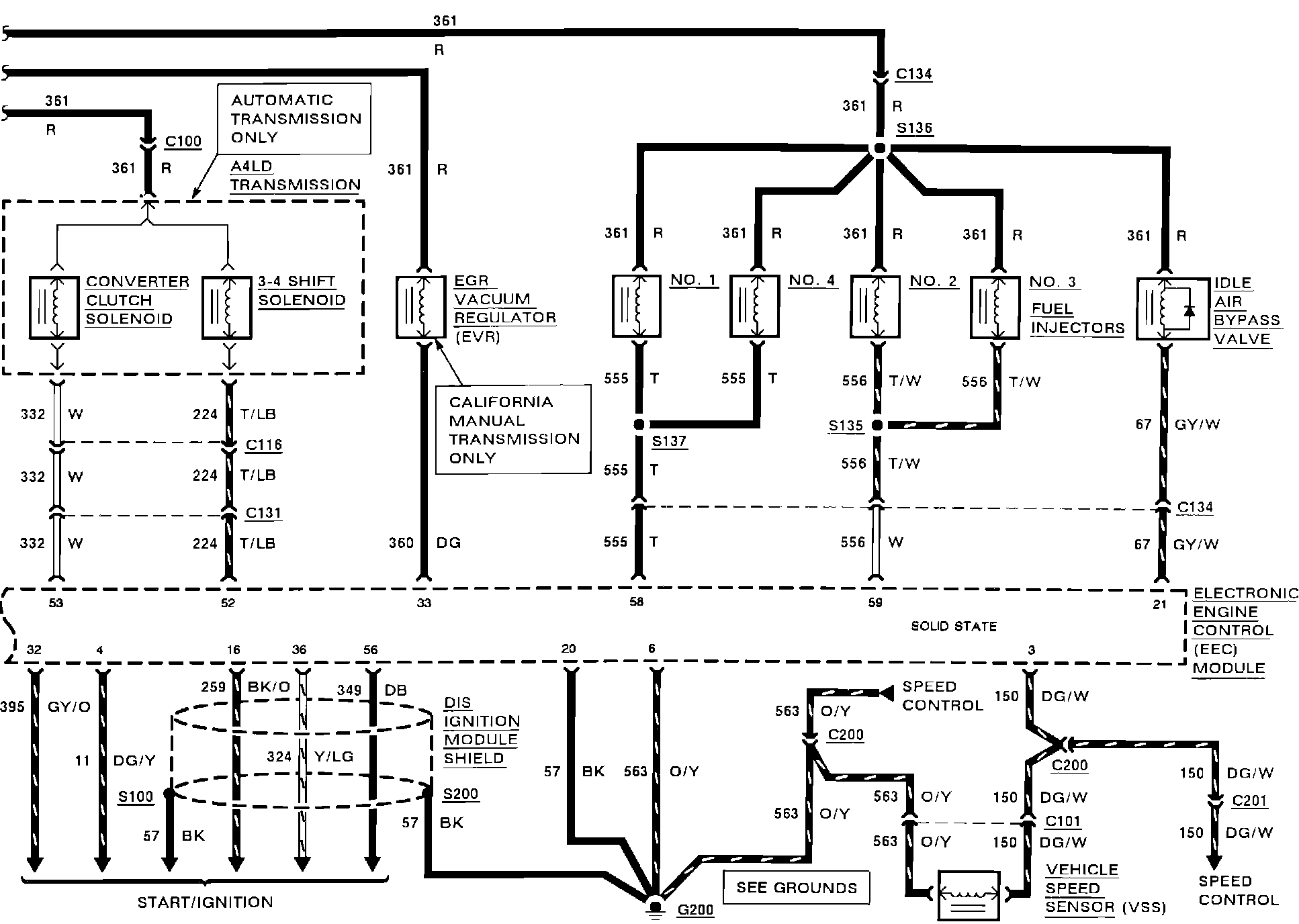

Fig. 14b Electronic Engine Controls:

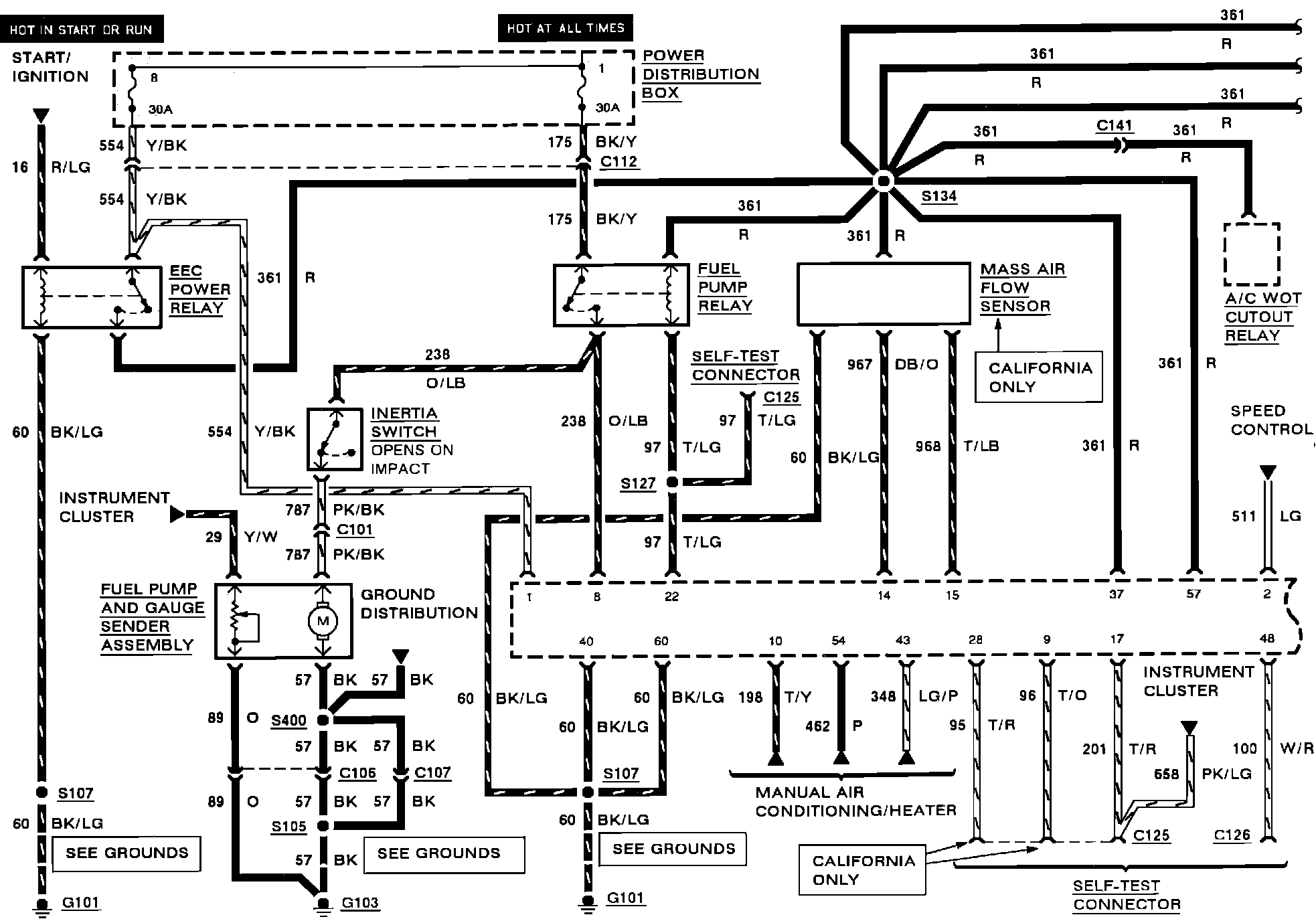

Fig. 14c Electronic Engine Controls:
