Connector Locations

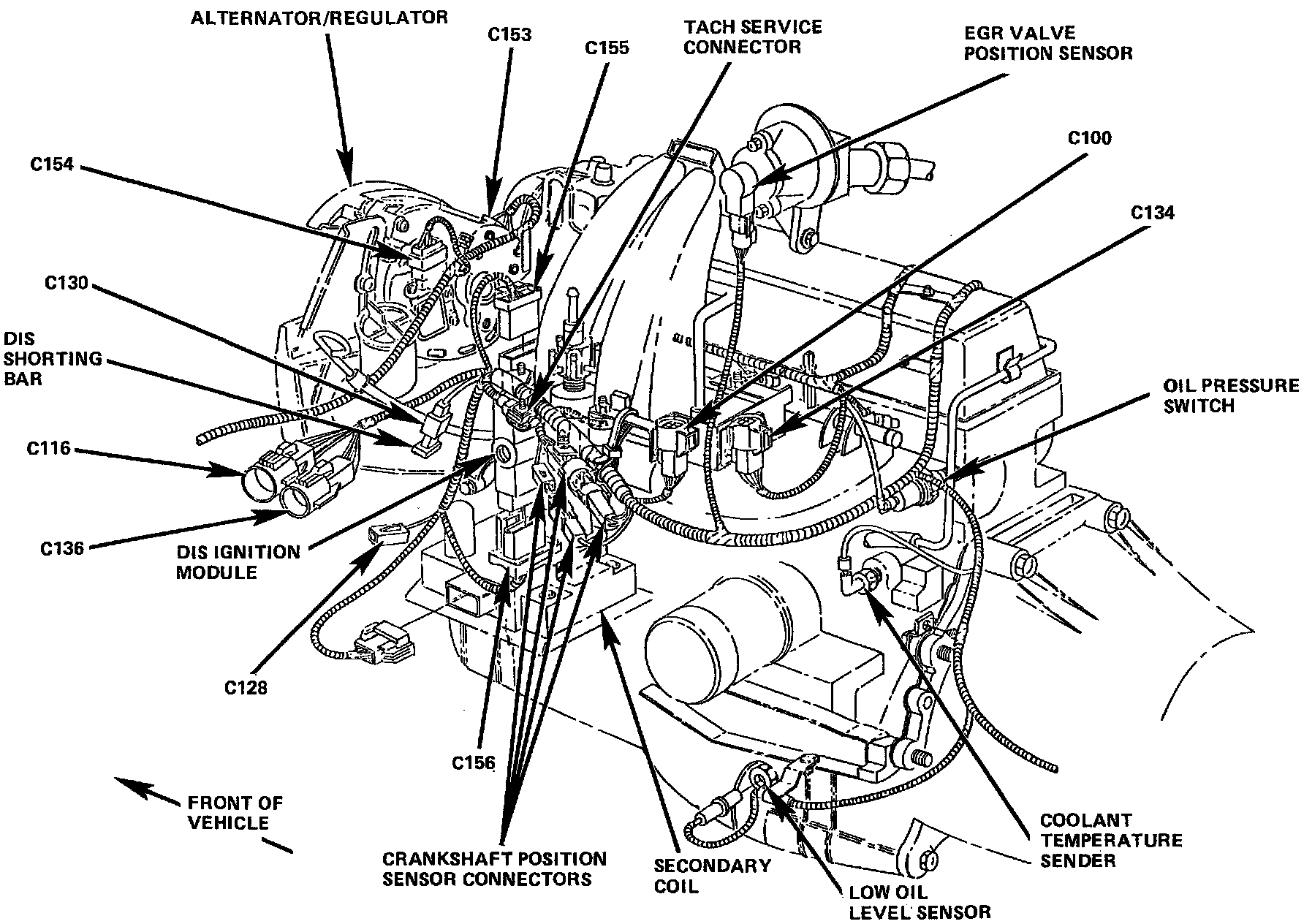

DIS Shorting Bar:






The SPOUT connector (DIS Shorting Bar C130), is located in the engine compartment on the LH side of the engine near the front, in the wiring harness.
