Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1990
>>
Ranger 2WD V6-177 2.9L
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Intake Manifold
>>
Specifications
>>
General Specifications
General Specifications

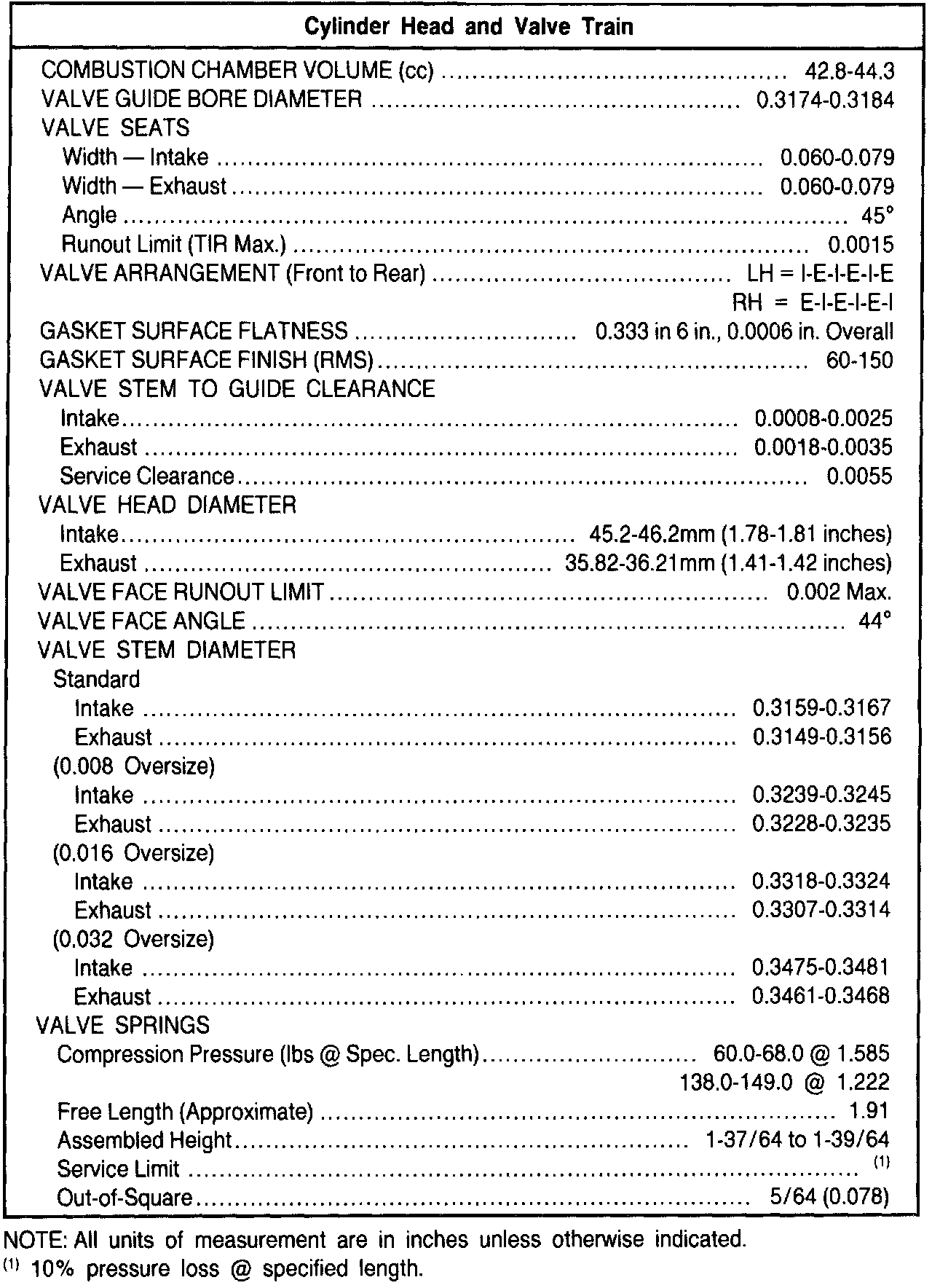

Service Specifications:
Service Specifications:
Service Specifications:
Service Specifications:
Compression Test Percentages - All Engines:
Belt Tension Allowable Limits:
