DIS Connector Pin Numbers - Manual Revision

90ford34 ENGINE/EMISSIONS DIAGNOSIS SHOP MANUAL - 1990 - PAGE 17-364 - DIS CONNECTOR PIN NUMBERS REVISED
Article No. 90-18B-29
LIGHT TRUCK: 1990 RANGER






ISSUE: The DSI connector pins 7-12 indicated on page 17-364 of the Ignition/Erratic Diagnostic Monitor (IDM) Pinpoint Test N in the 1990 Engine/Emissions Diagnosis Shop Manual are incorrect. The correct pins are 1-6.

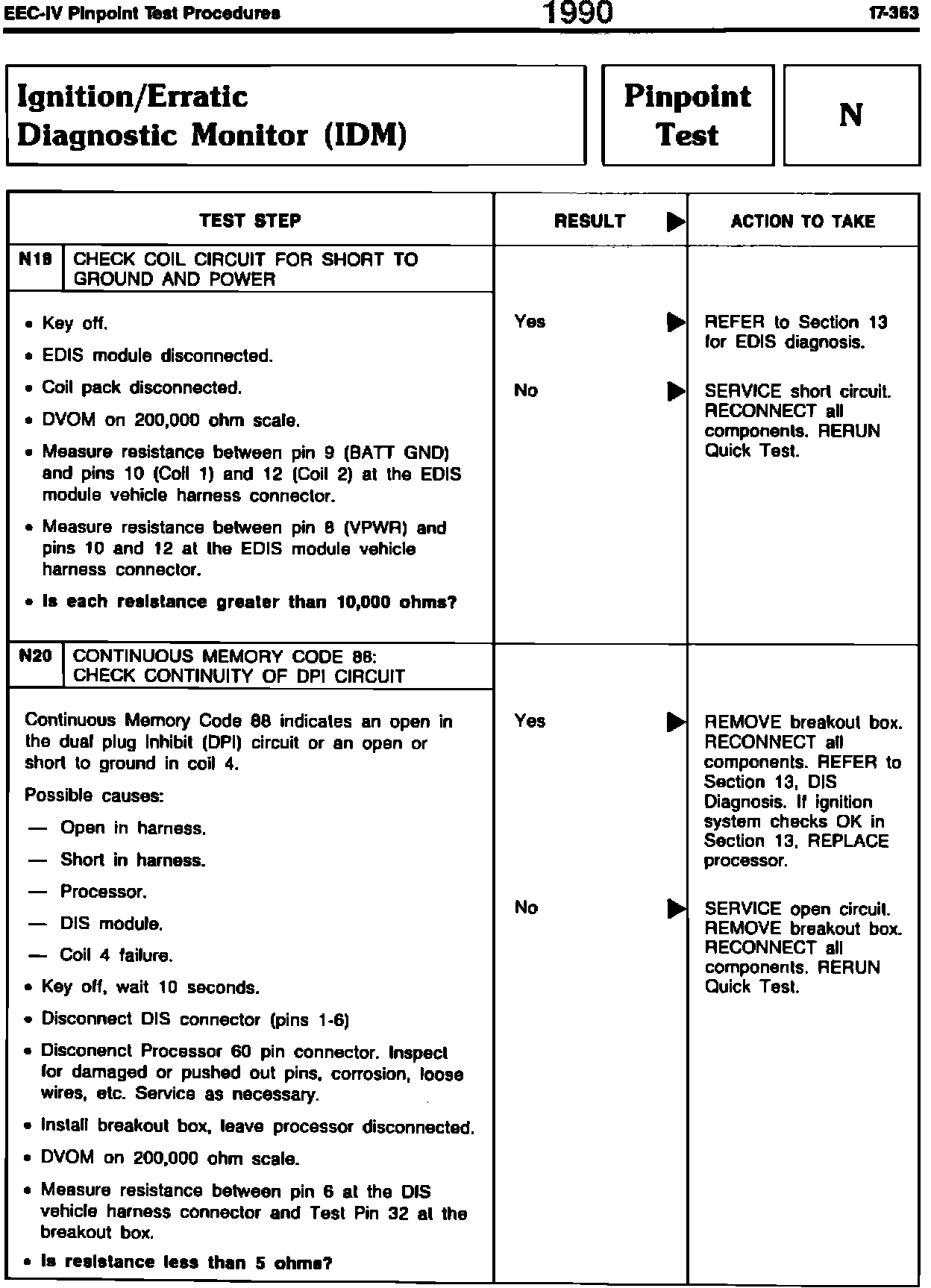

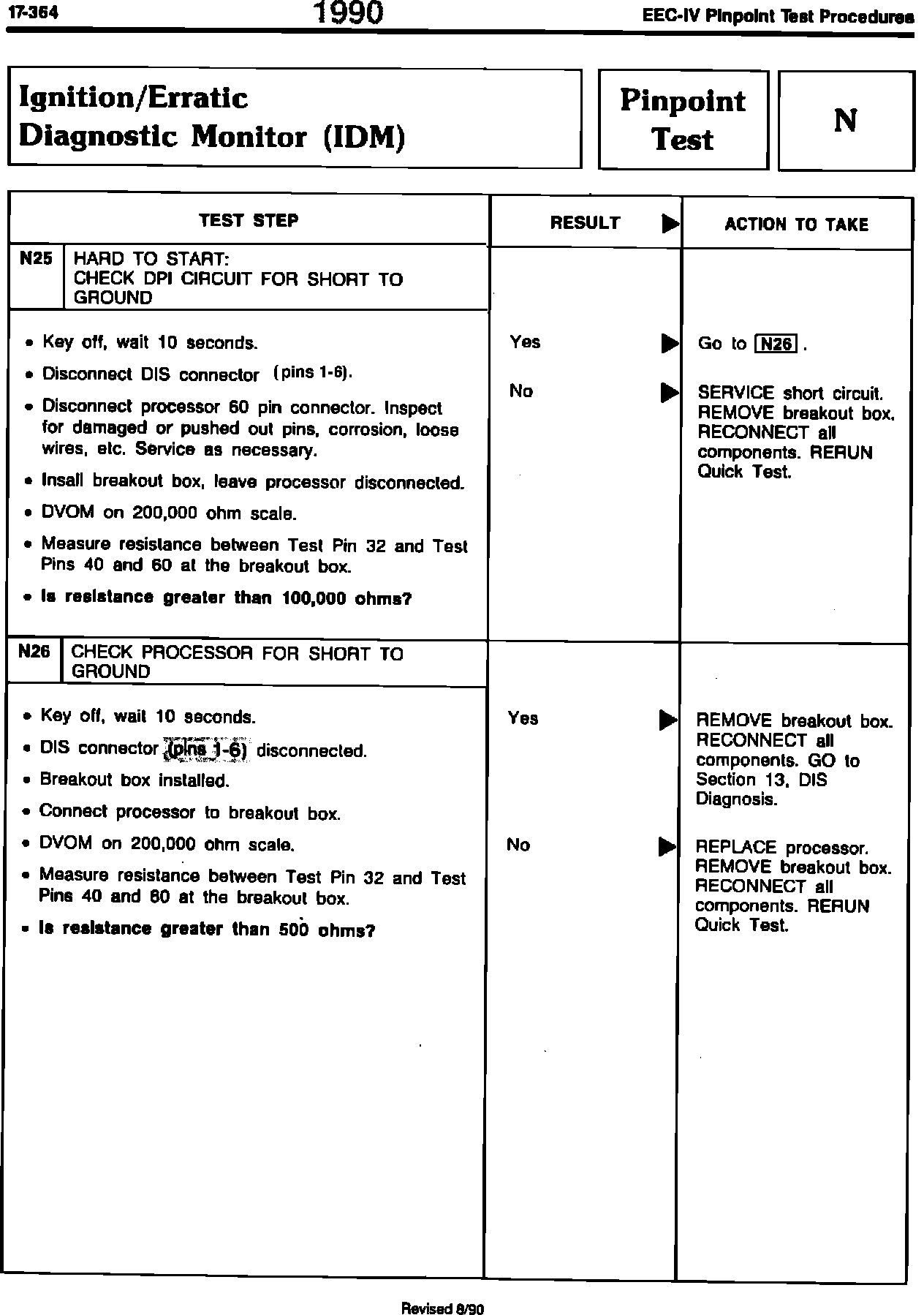

ACTION: Refer to the pages following this TSB article for the updated test procedures.
OTHER APPLICABLE ARTICLES: 89-5A-13
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000
