Barometric Pressure Sensor
>>
Locations

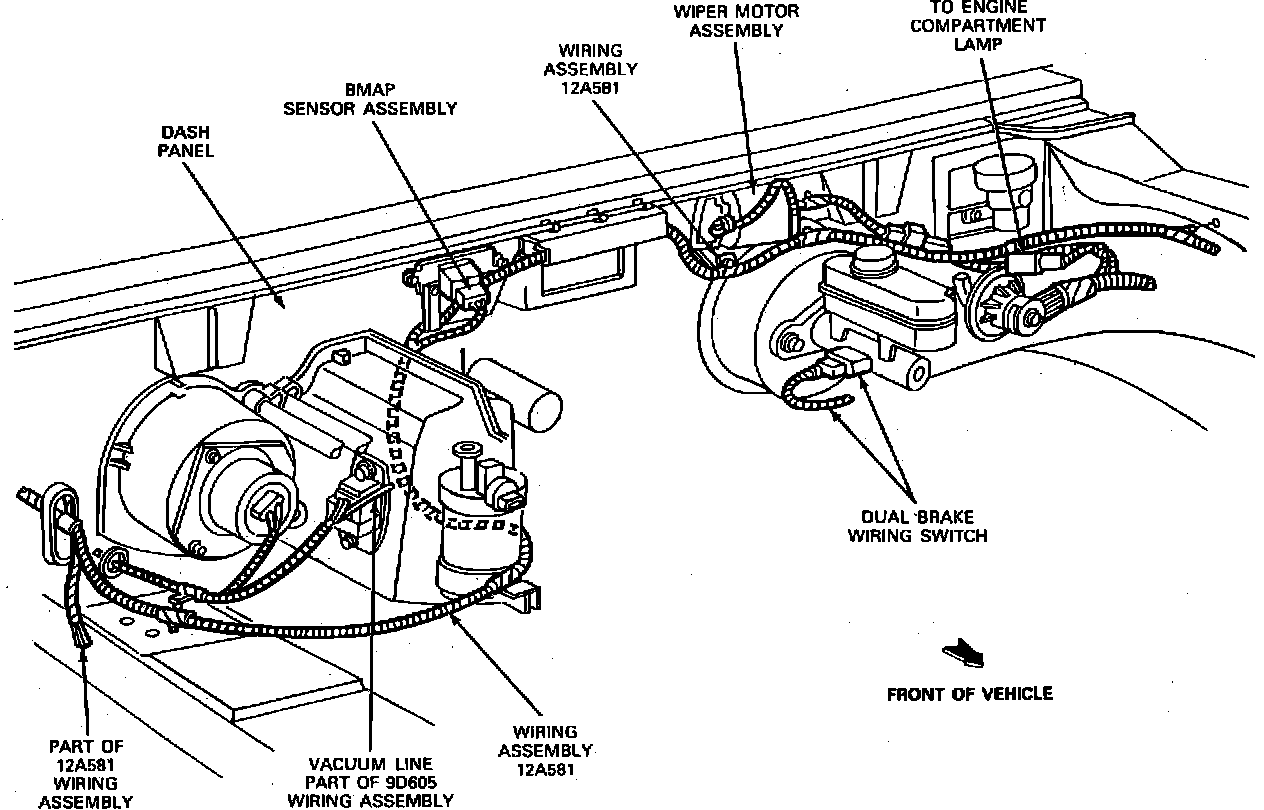

Barometric Pressure Sensor: Locations
Rear Of Engine Compartment.:
On Upper Center Of Firewall
Applicable to: V6-244/4.0L
