Home >> Ford >> 1990 >> Ranger 4WD V6-245 4.0L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls

Engine Controls

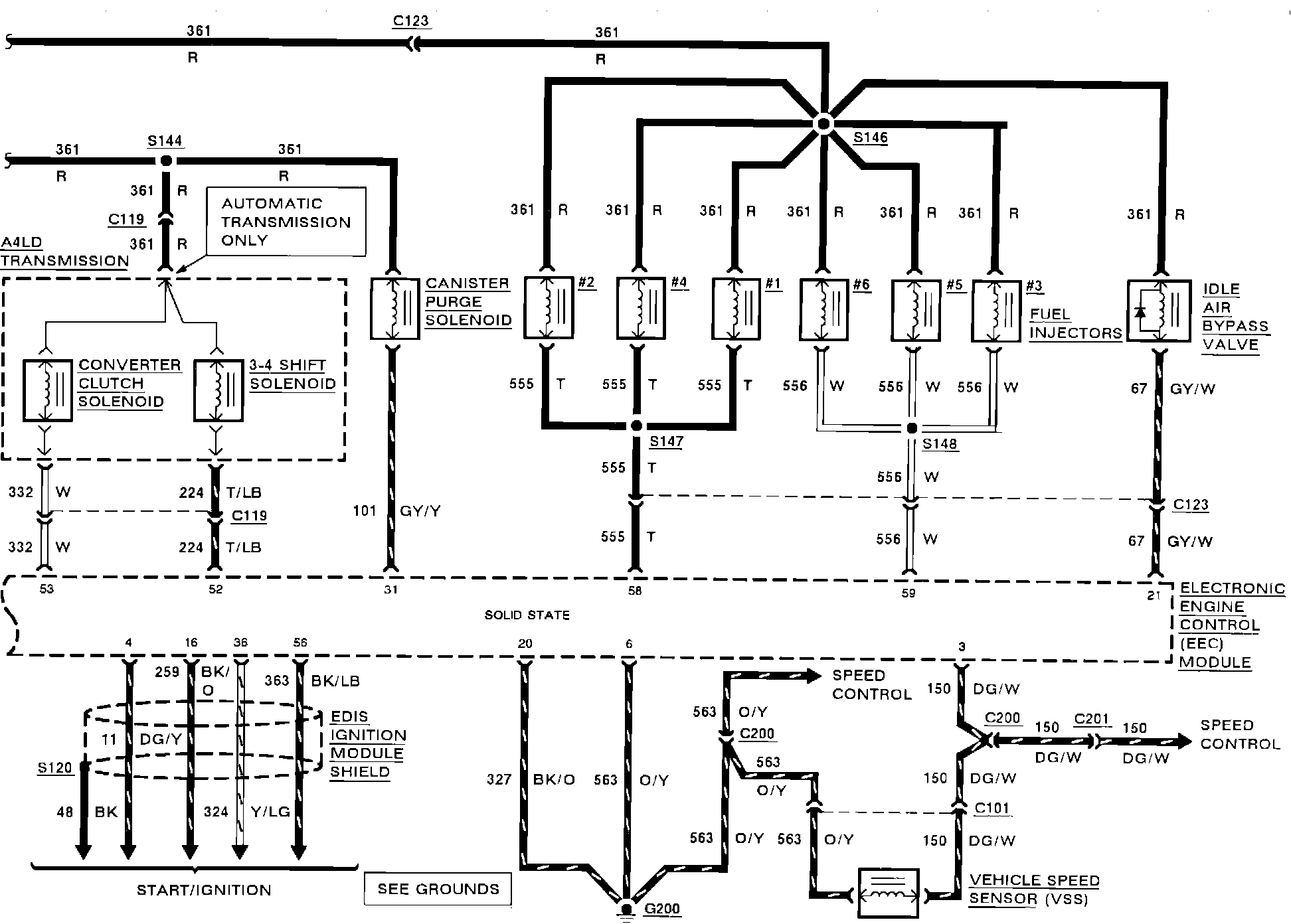

Fig. 16a Electronic Engine Controls:

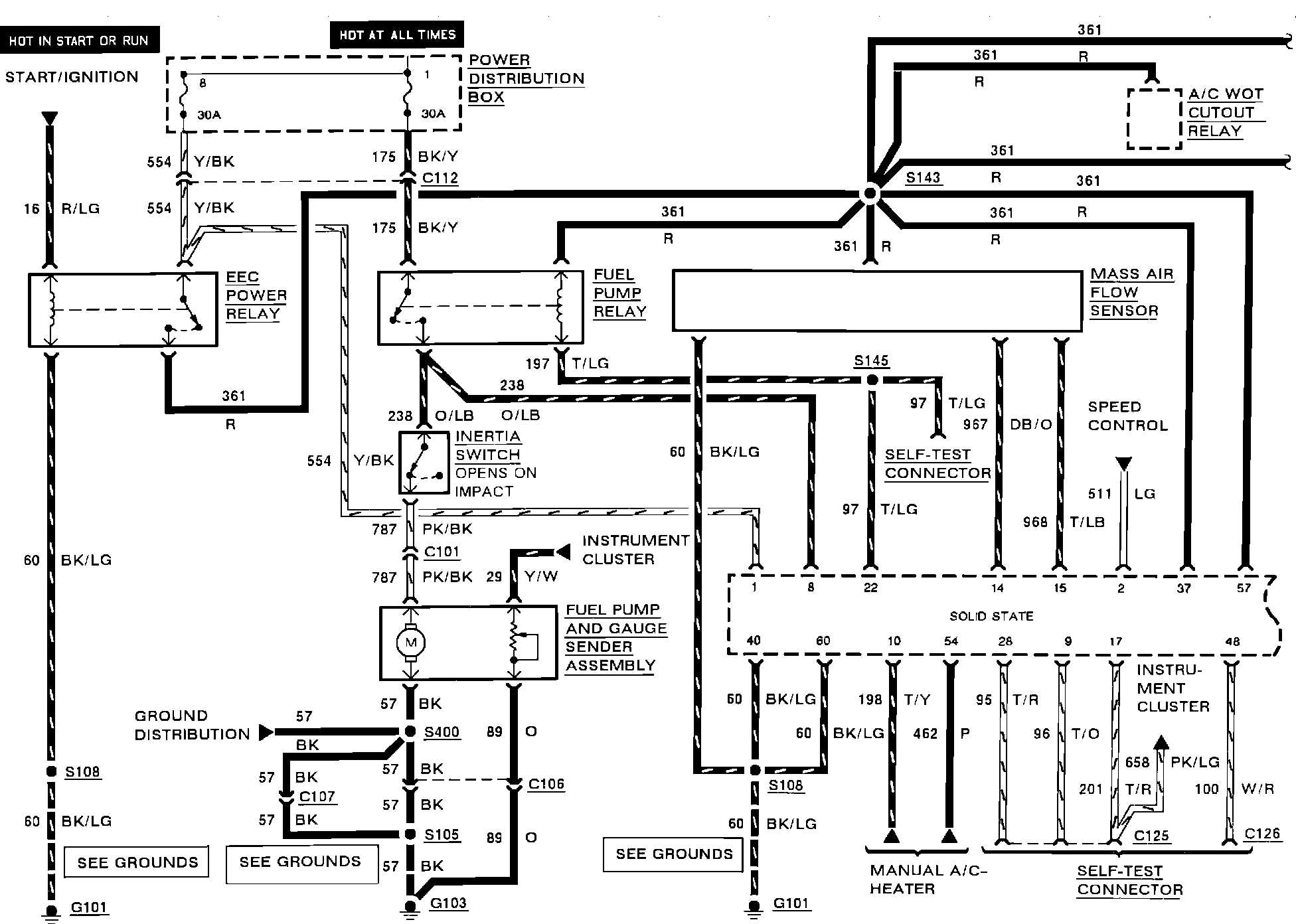

Fig. 16b Electronic Engine Controls:

Fig. 16c Electronic Engine Controls:
