Idle Speed: Adjustments

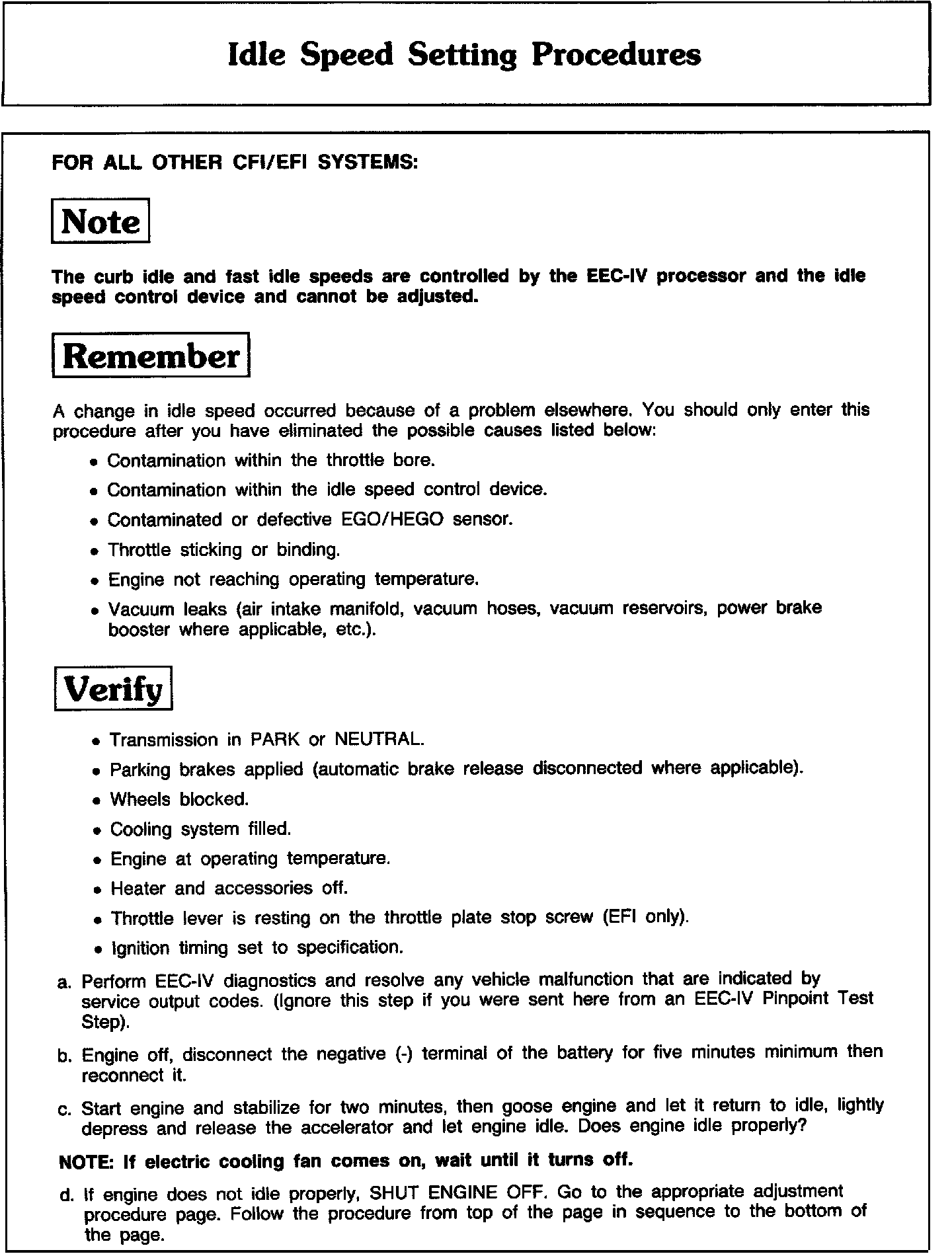

Idle Speed Setting Procedures:





Idle Speed Adjustment Procedure:

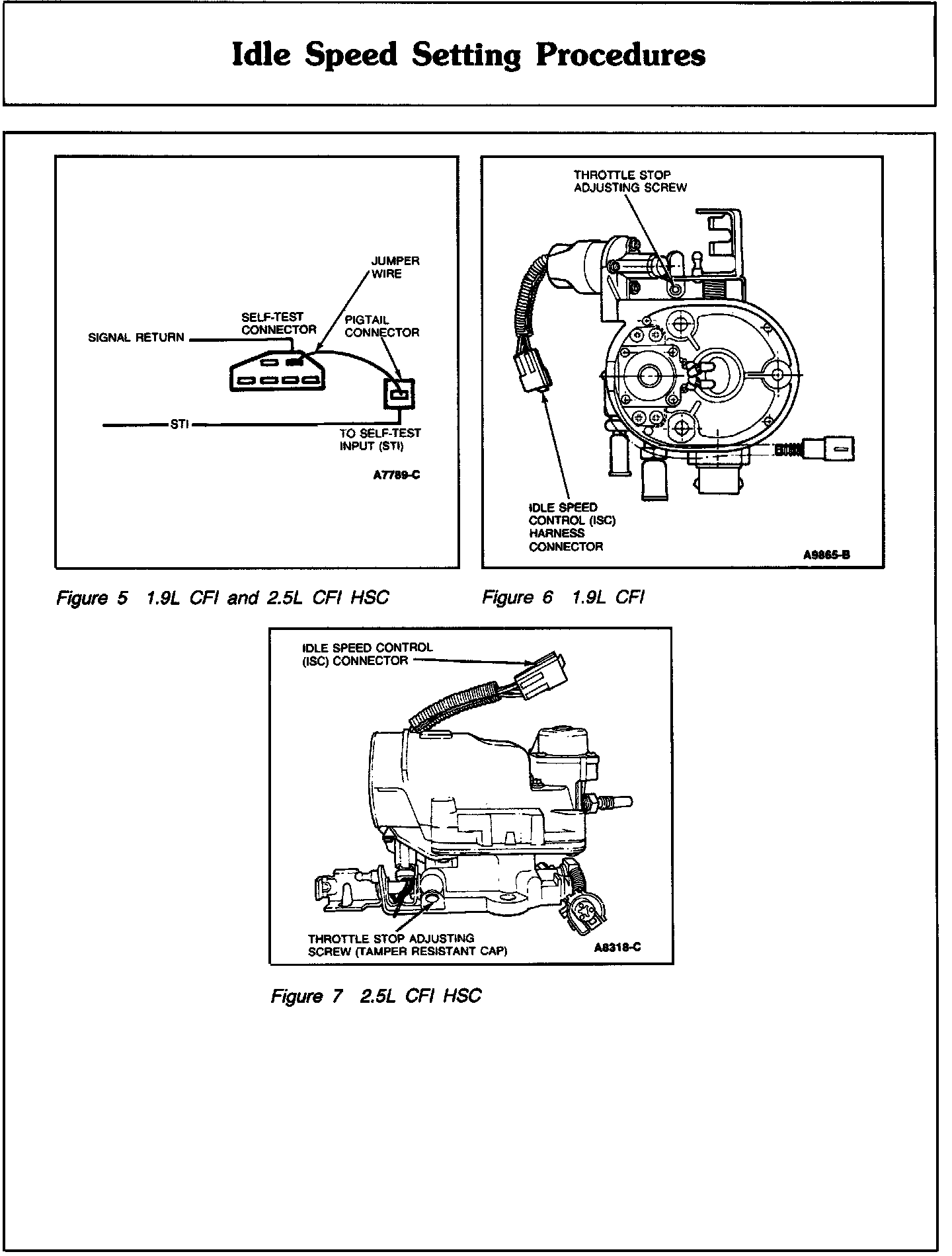

Figure References 5 - 7:
