Home
>>
Ford
>>
1991
>>
Aerostar AWD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
System Diagram
System Diagram

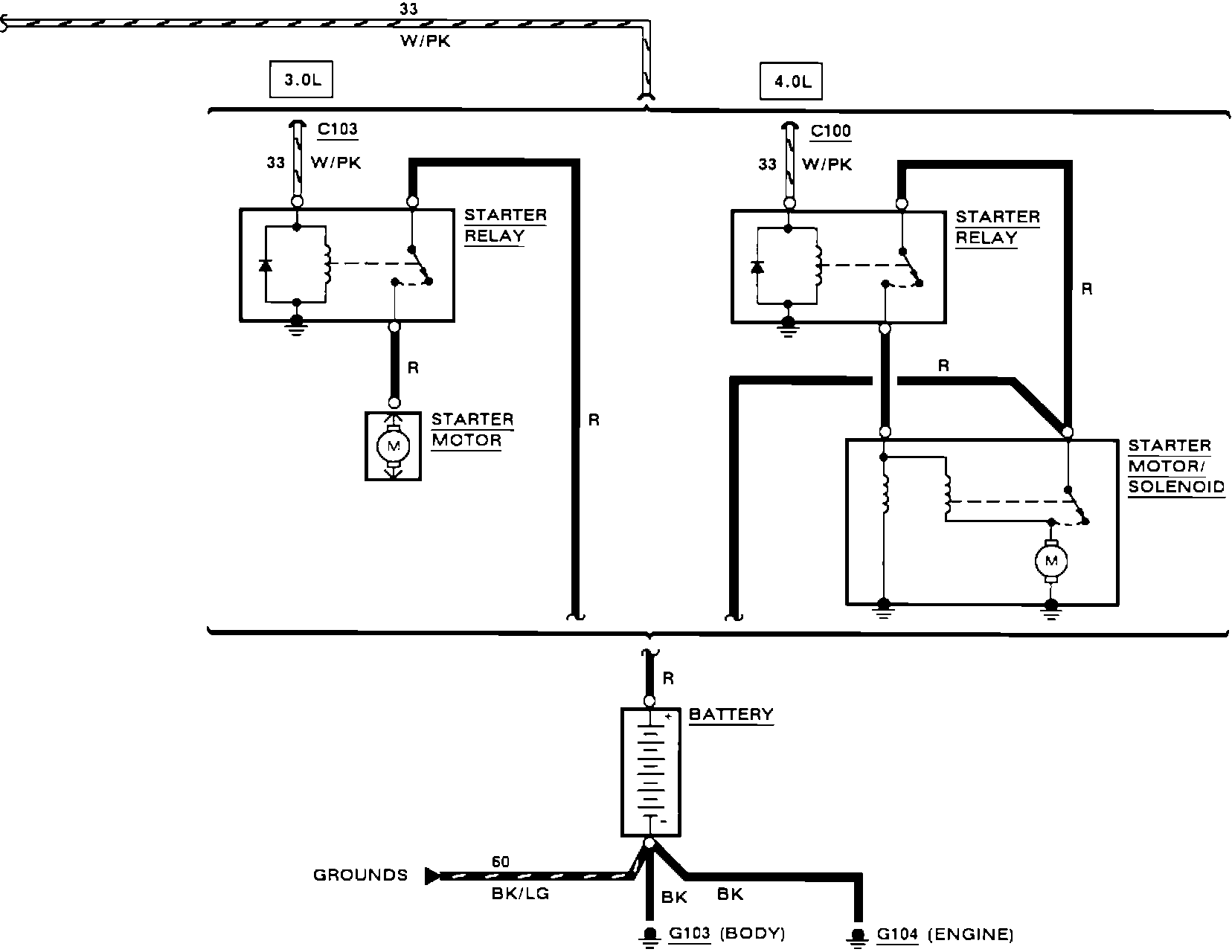

Starting System:

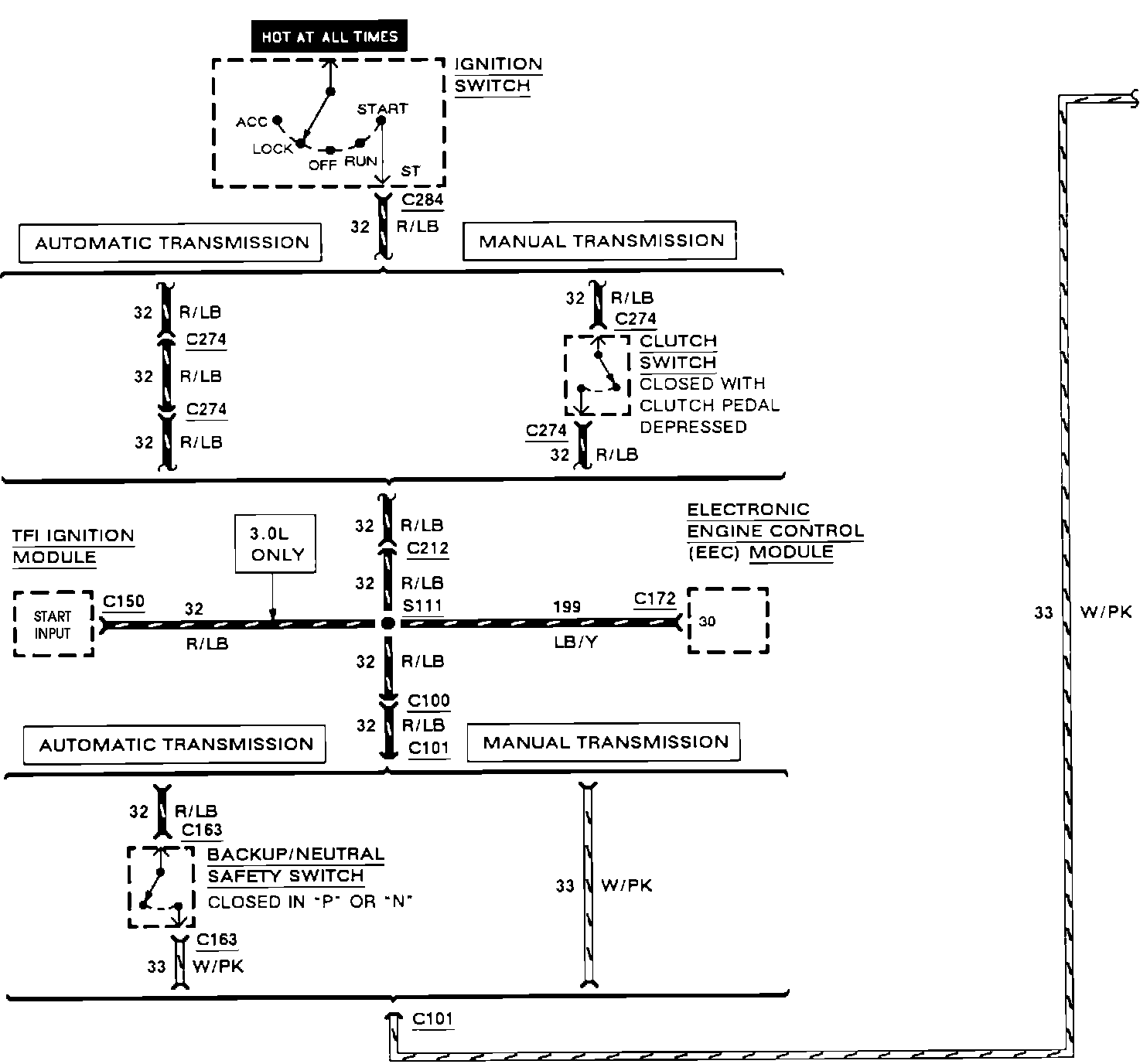

Starting System:
