Home
>>
Ford
>>
1991
>>
Aerostar AWD V6-245 4.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
DC - Mass Air Flow (MAF) Sensor
>>

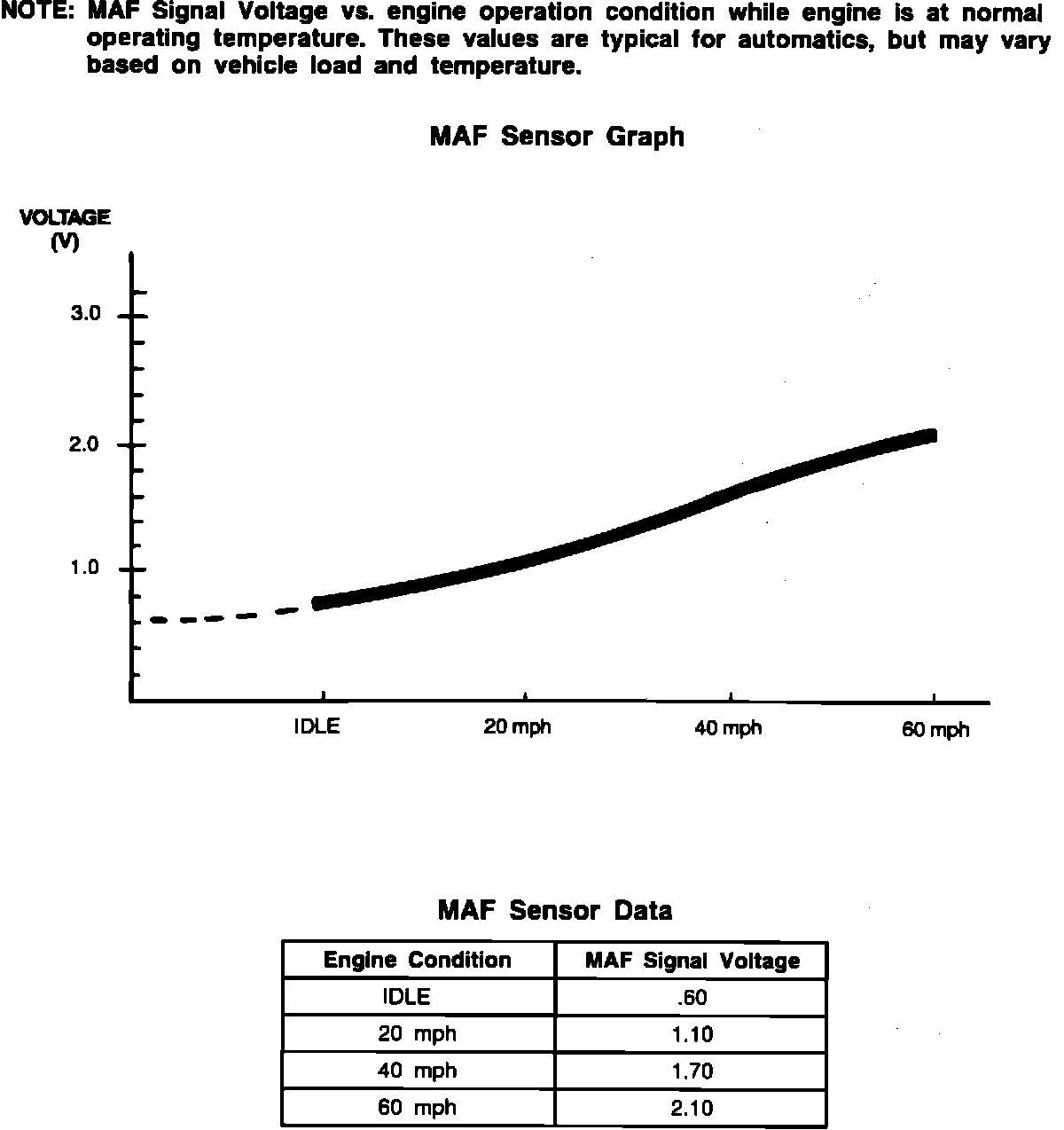

DC - Sensor Graph
DC - Sensor Graph
EEC-IV Pinpoint Test:
