PC - Spark Timing Check - EDIS
>>

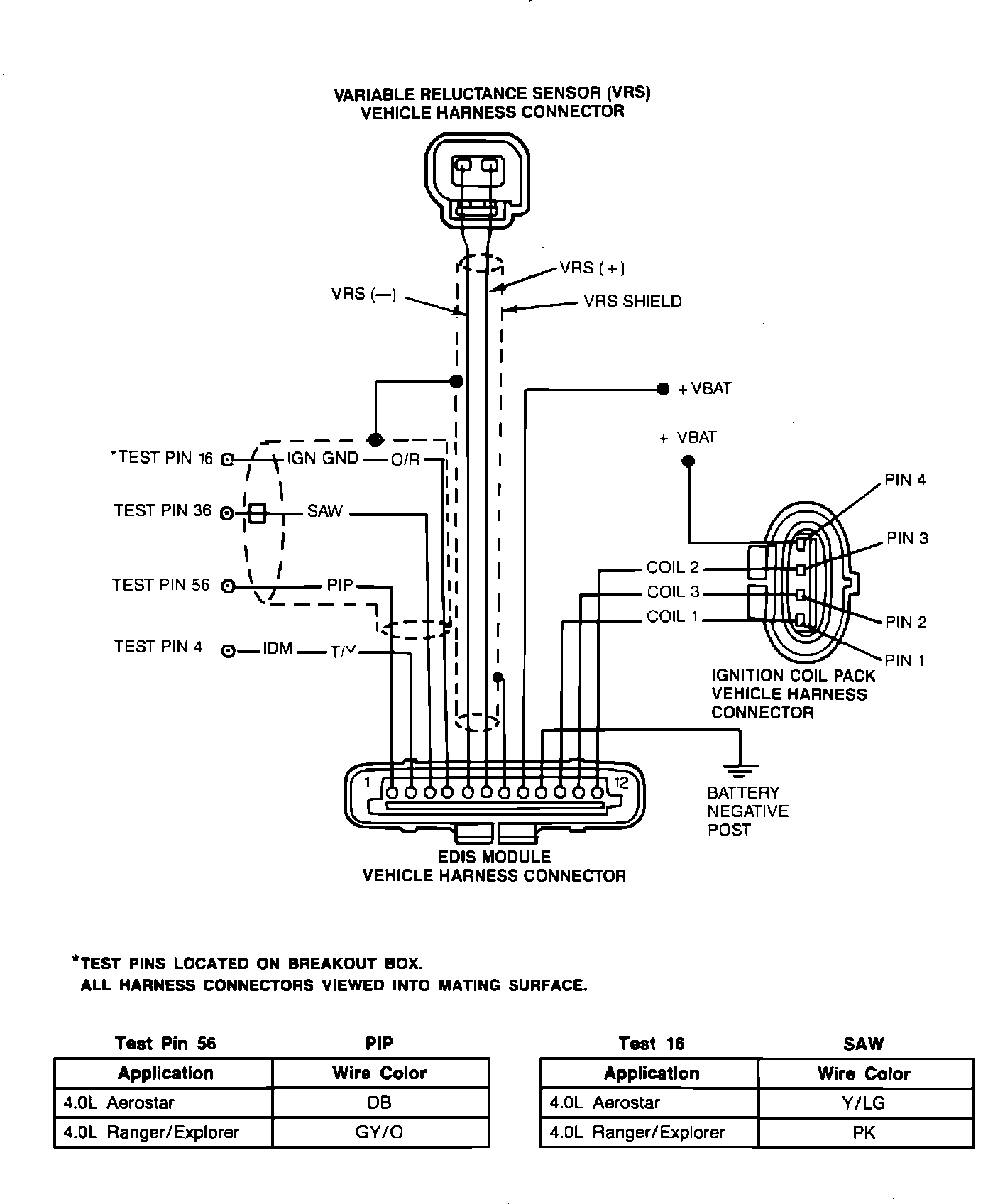

PC - Testing Schematic
PC - Testing Schematic
EEC-IV Pinpoint Test:
