Flow of Diagnosis
Flow of Diagnosis

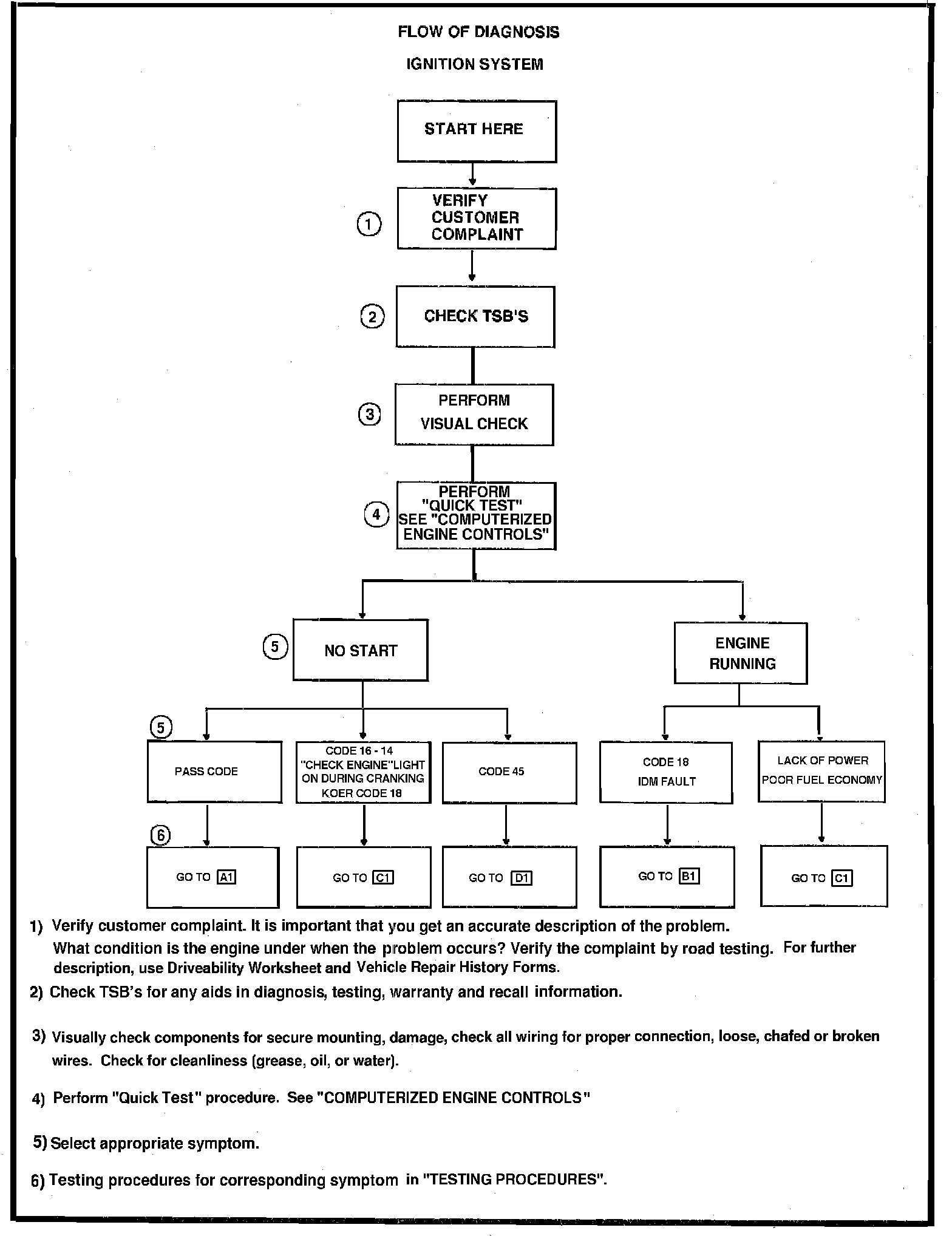

Flow Of Diagnosis:
FLOW CHART
Driveability Worksheet:
Driveability Worksheet:
DRIVEABILITY WORKSHEET
Vehicle Repair History:
Vehicle Repair History:
VEHICLE REPAIR HISTORY
