Ford
>>
1991
>>
Aerostar AWD V6-245 4.0L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
Drive Belt
Drive Belt

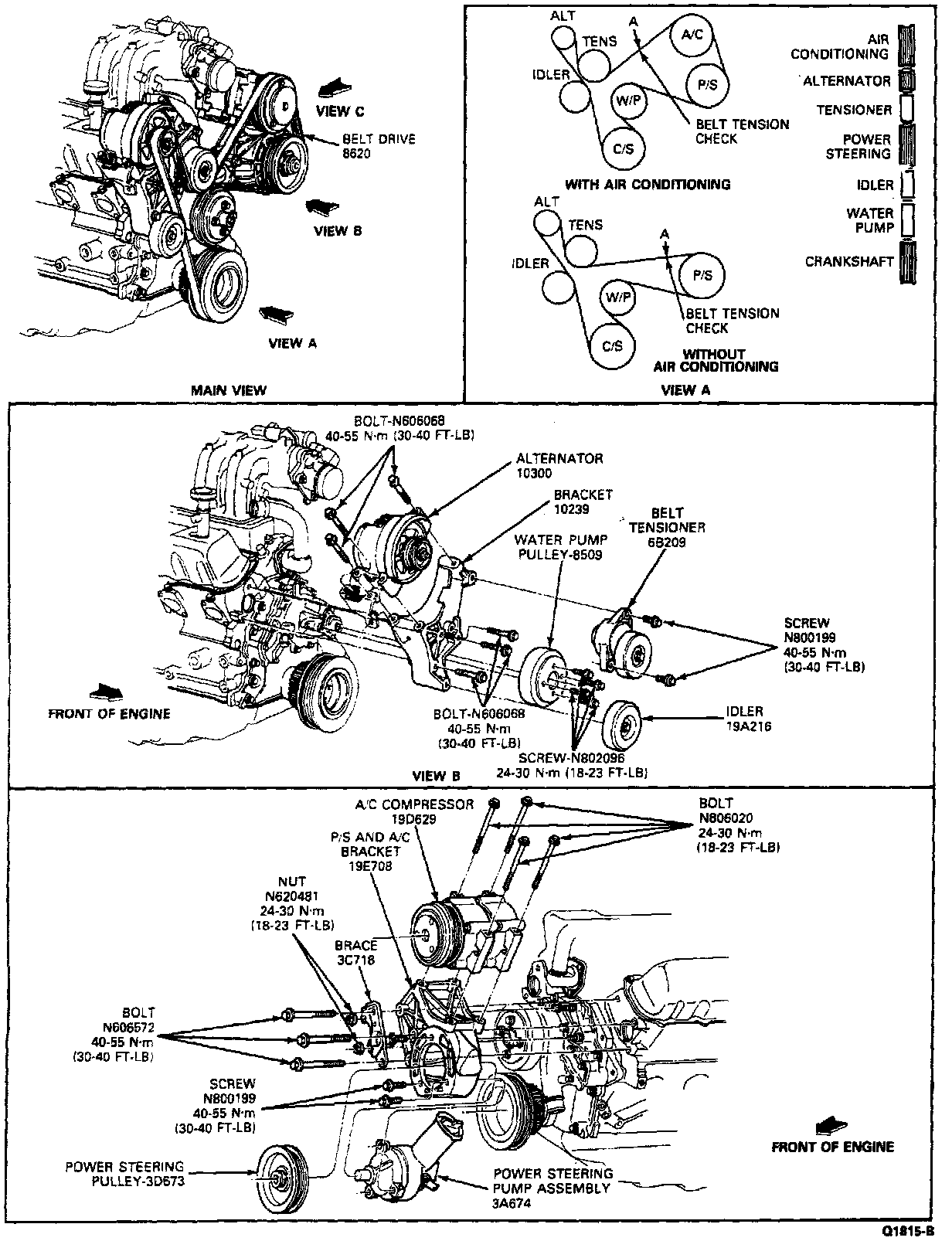

Drive Belt Routing:
New Or Used Belt (Measured At "A")
480-586 Newtons (108-132 lbs)
Allowable Minimum
480 Newtons (108 lbs)
