Engine Control Module
Engine Control Module

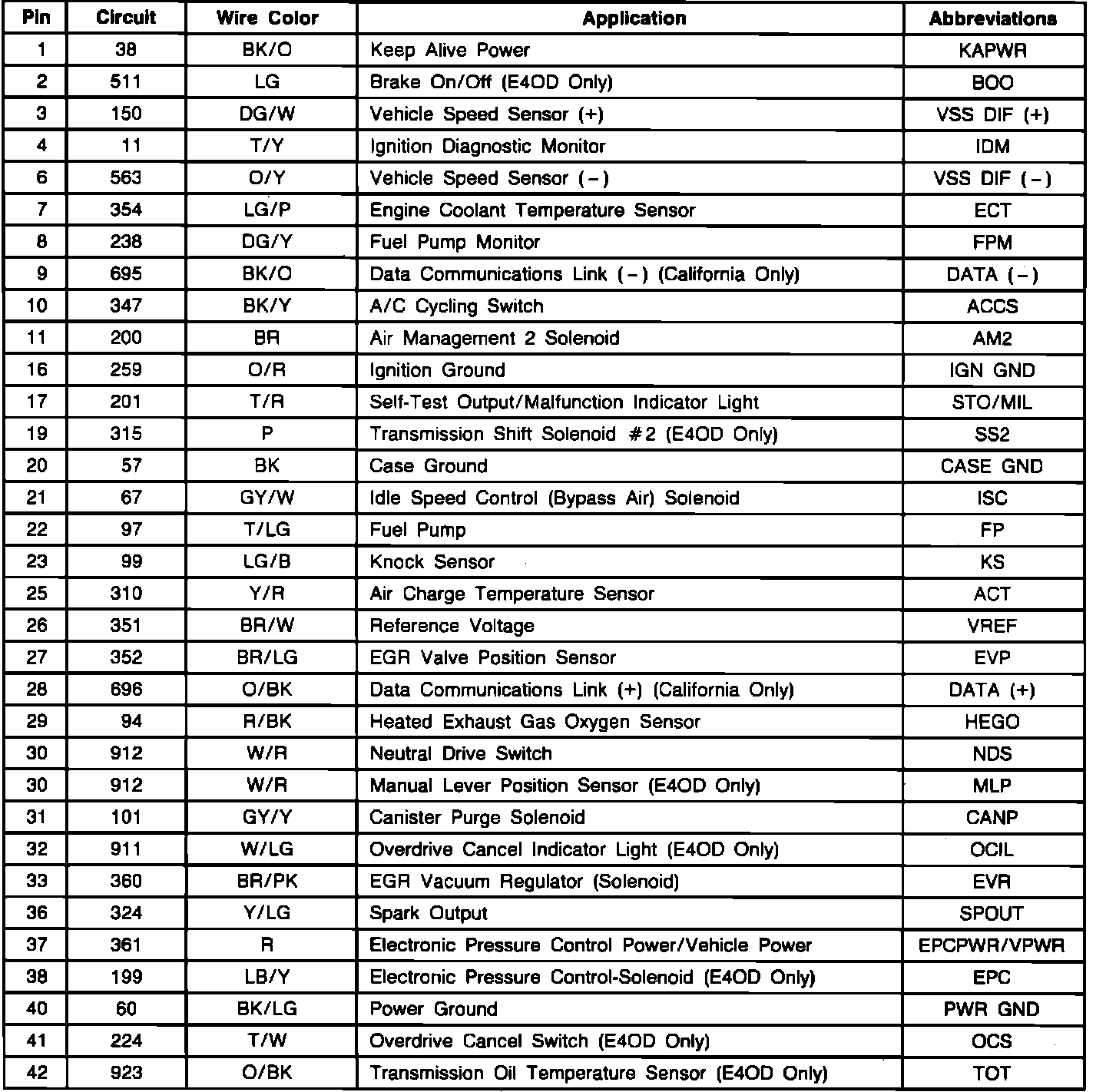

ECA Connector Pin Identification:
ECA Connector Pin Identification:
