Engine Controls

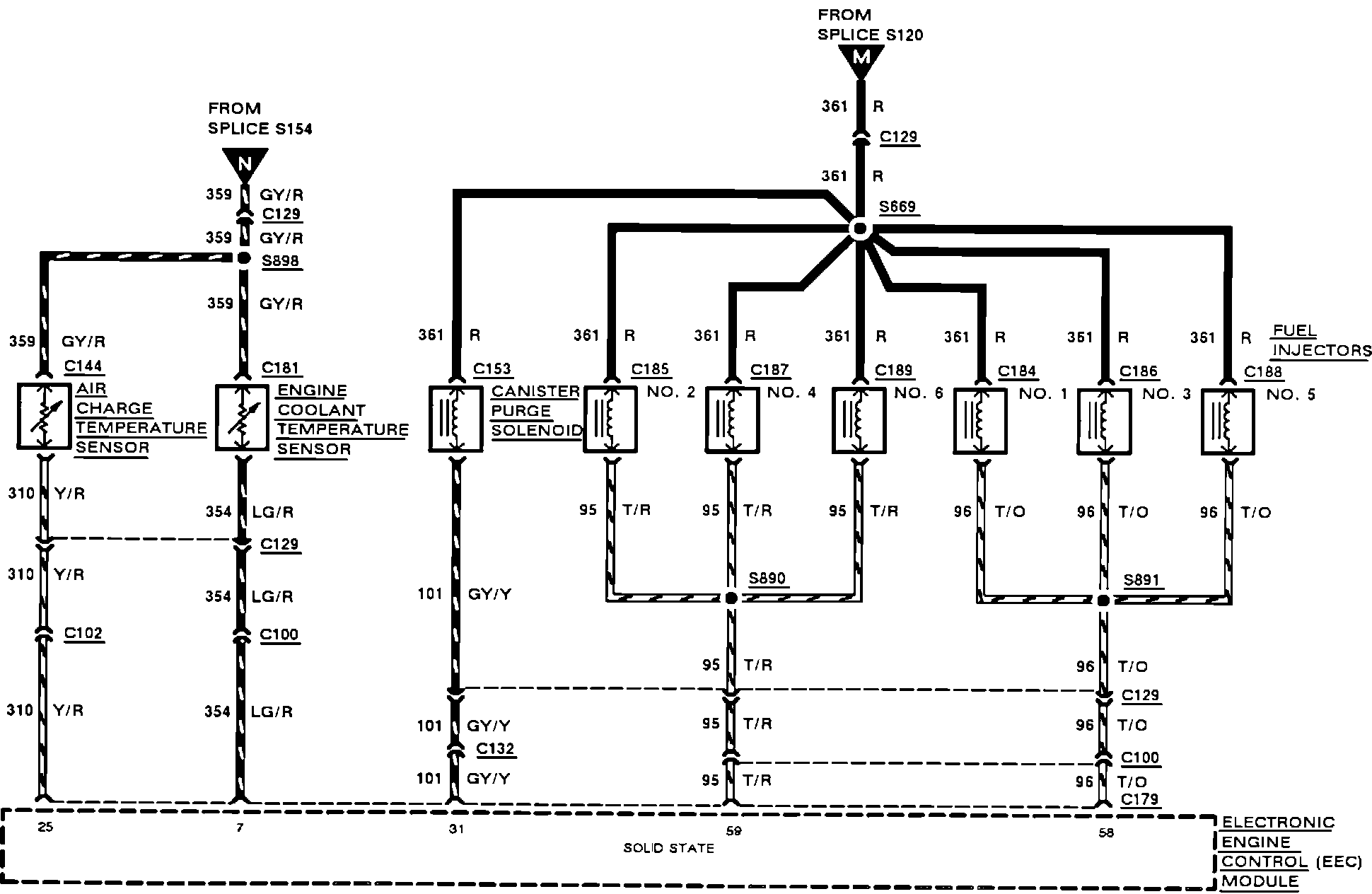

Engine Control (Electronic):

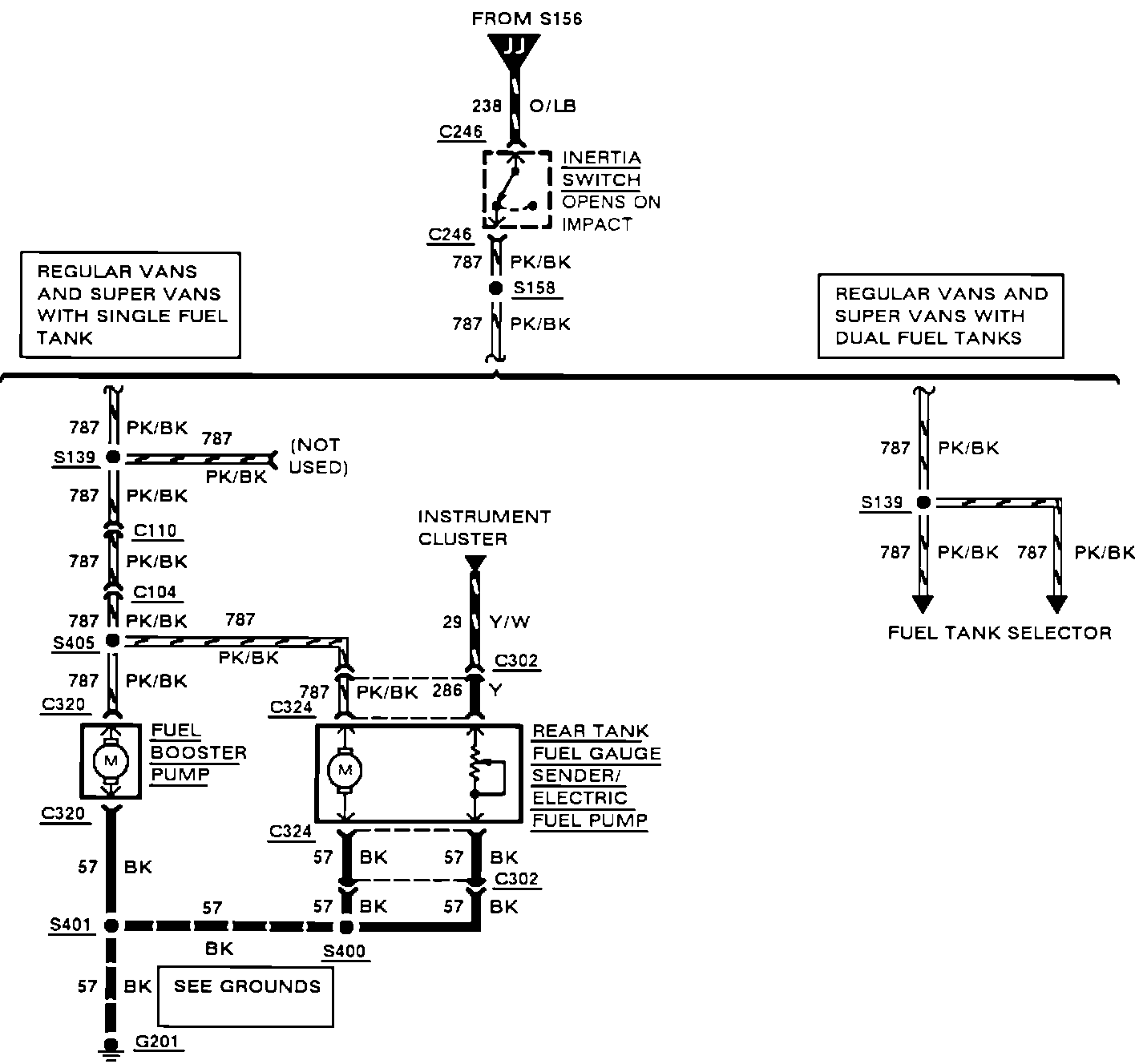

Engine Control (Electronic):

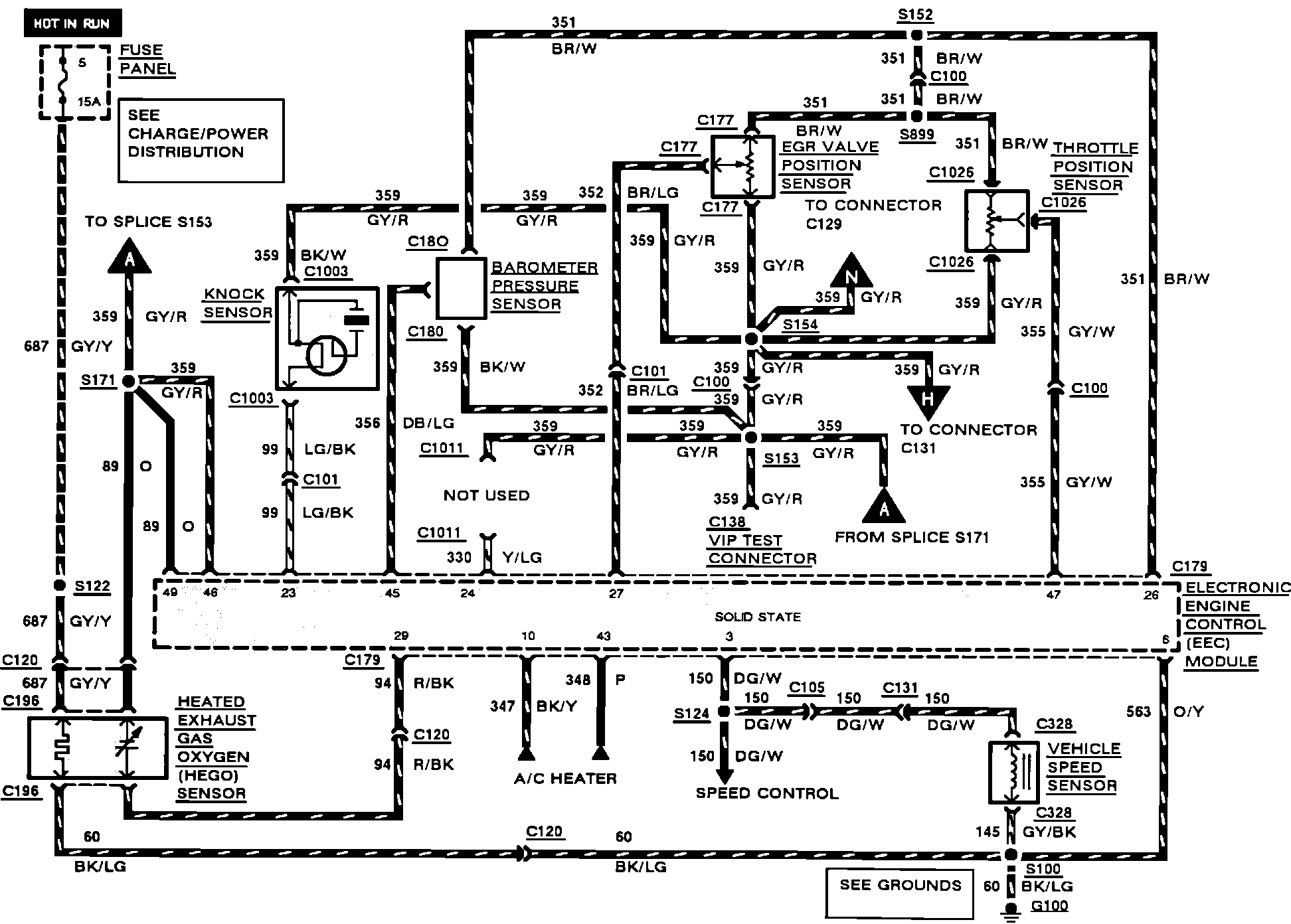

Engine Control (Electronic):

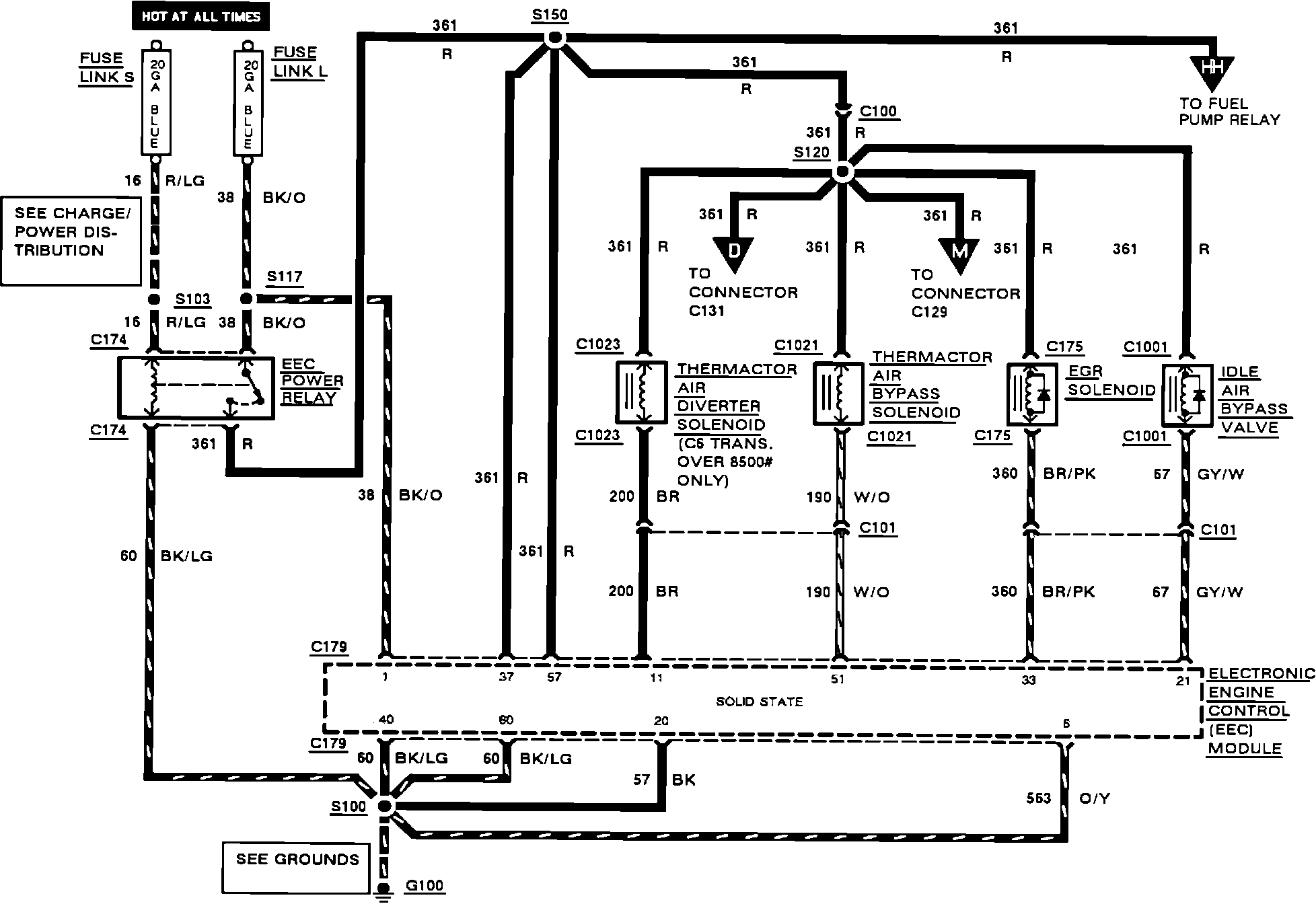

Engine Control (Electronic):

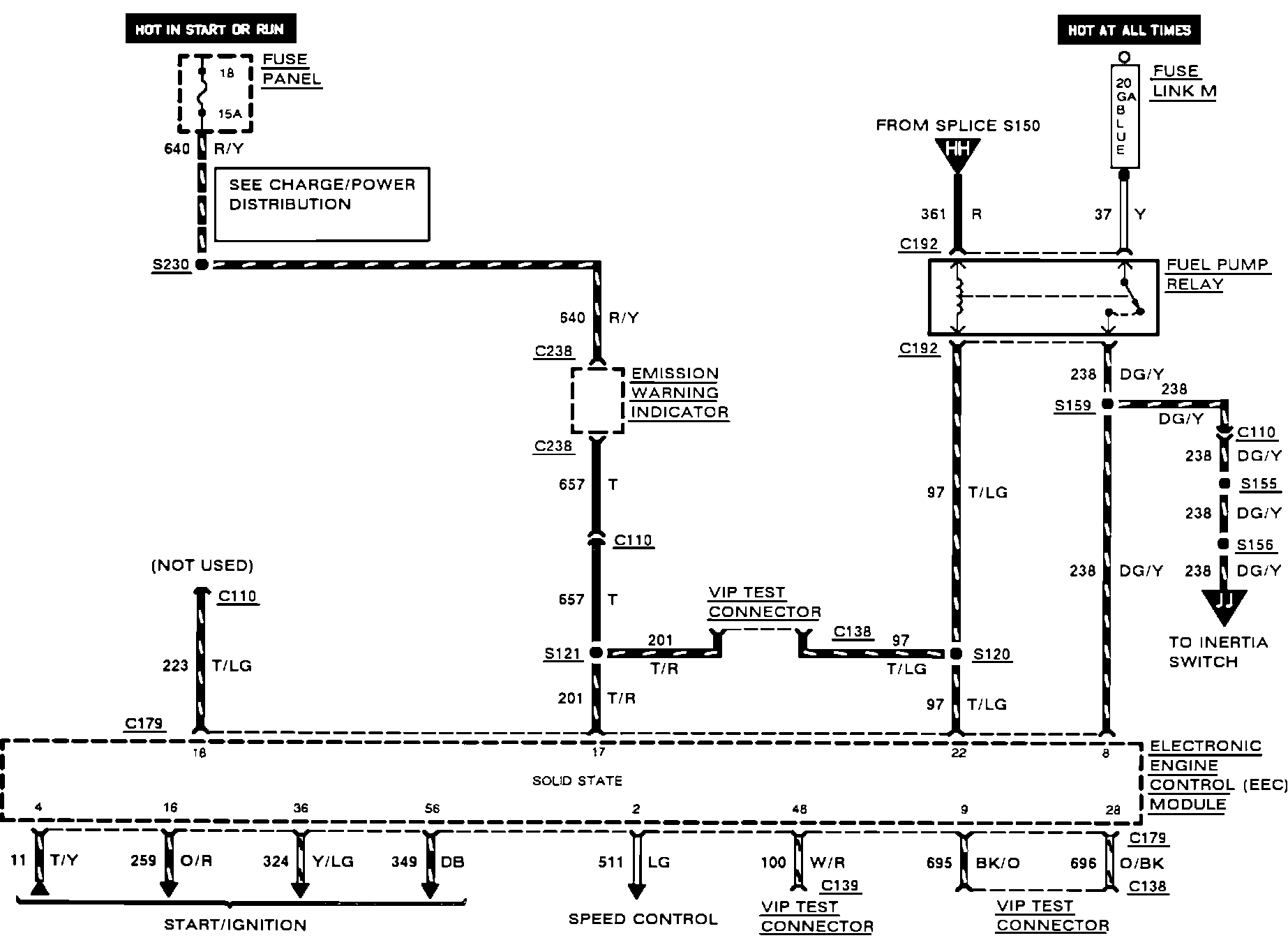

Engine Control (Electronic):






Engine Control (Electronic):
