Engine Controls

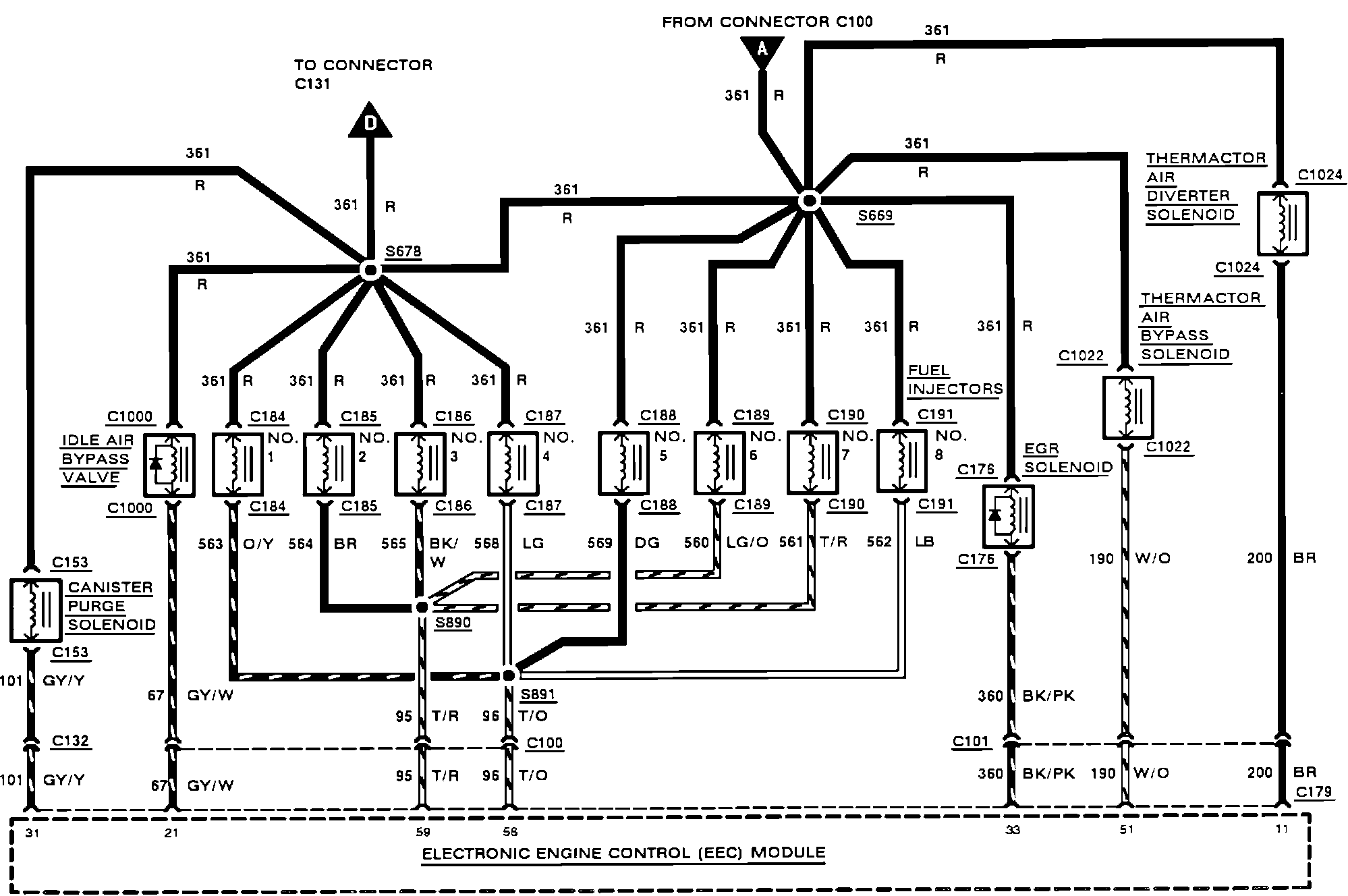

Engine Control (Electronic):

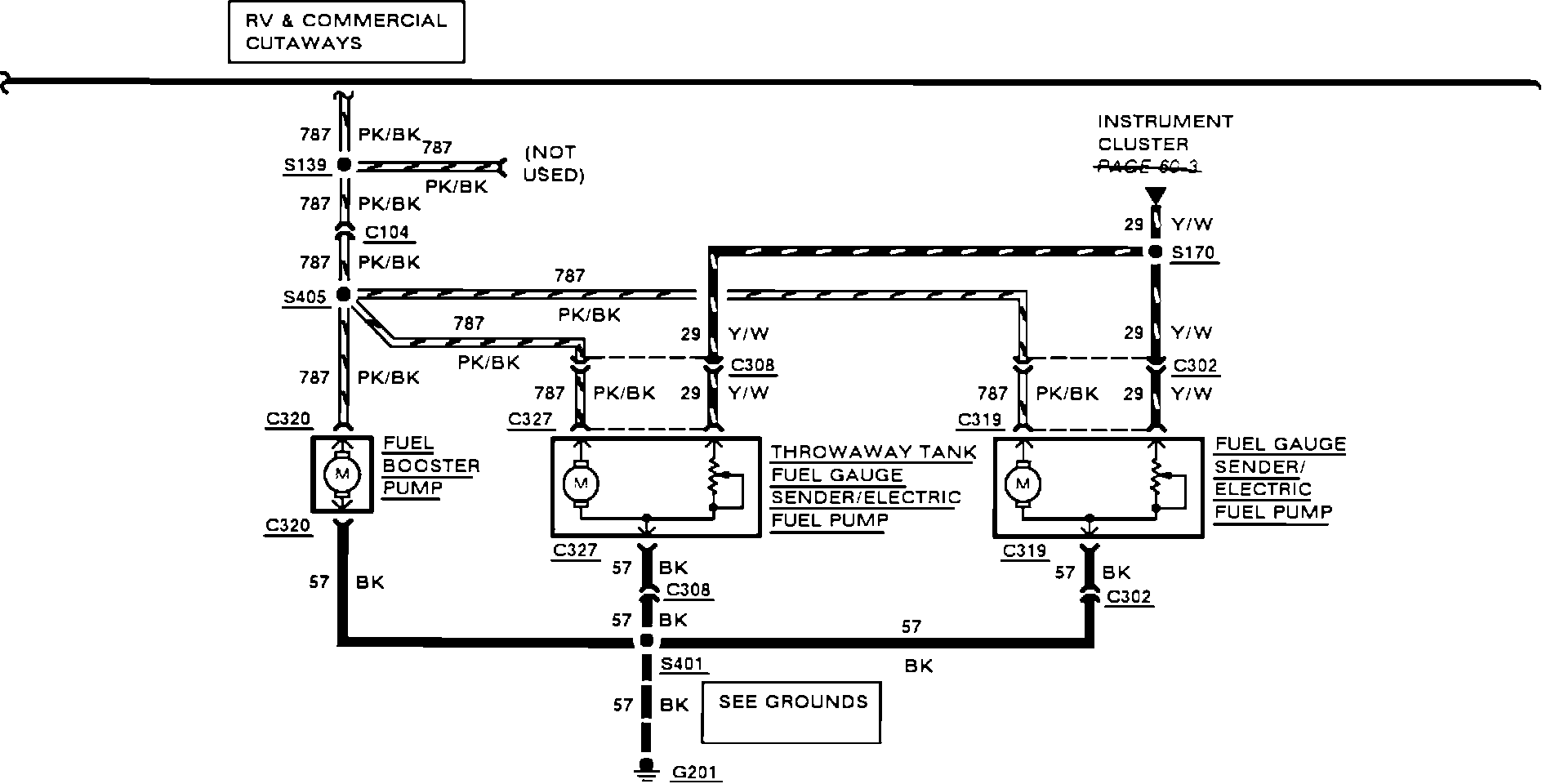

Electronic Engine Control:

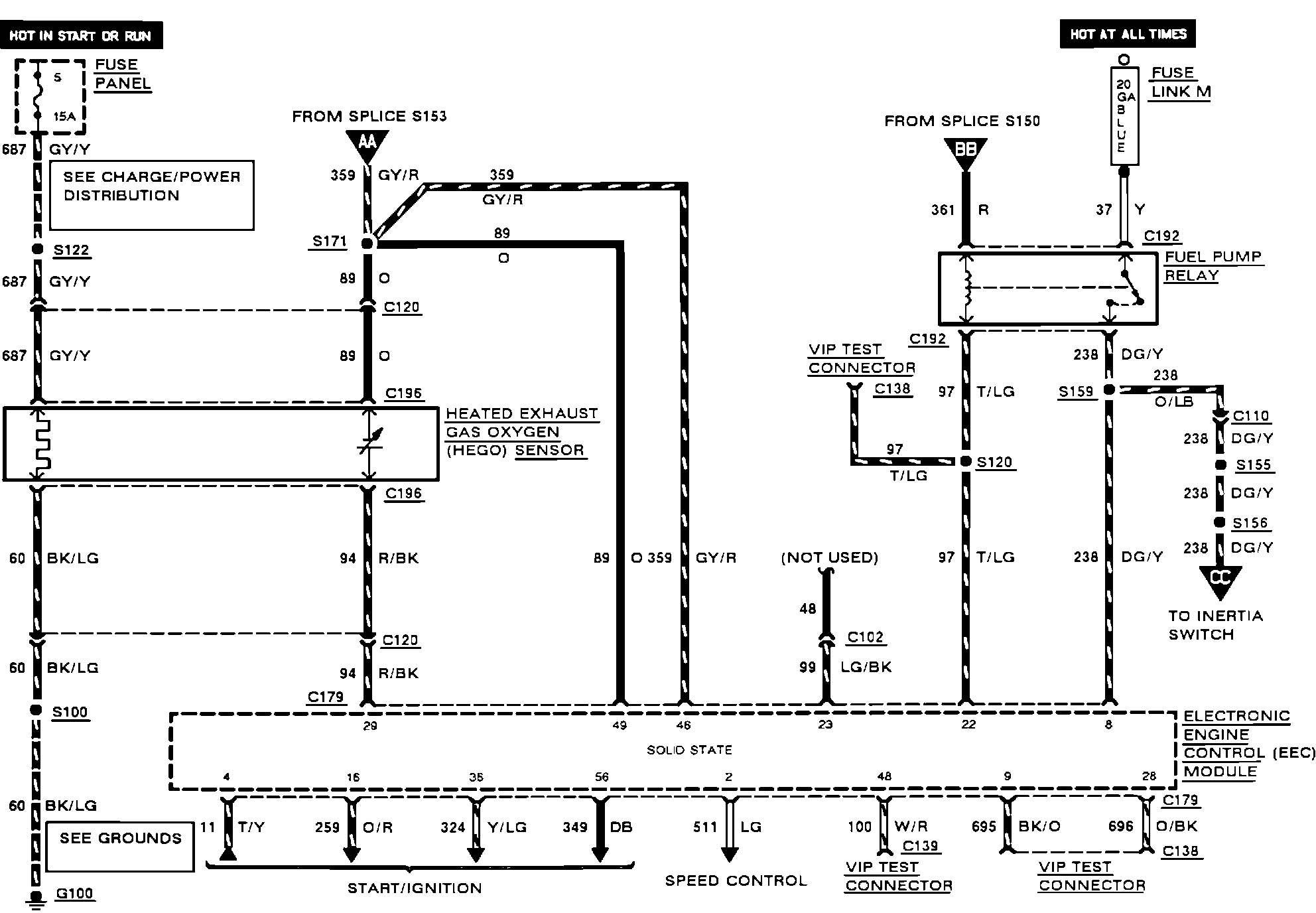

Engine Control (Electronic):

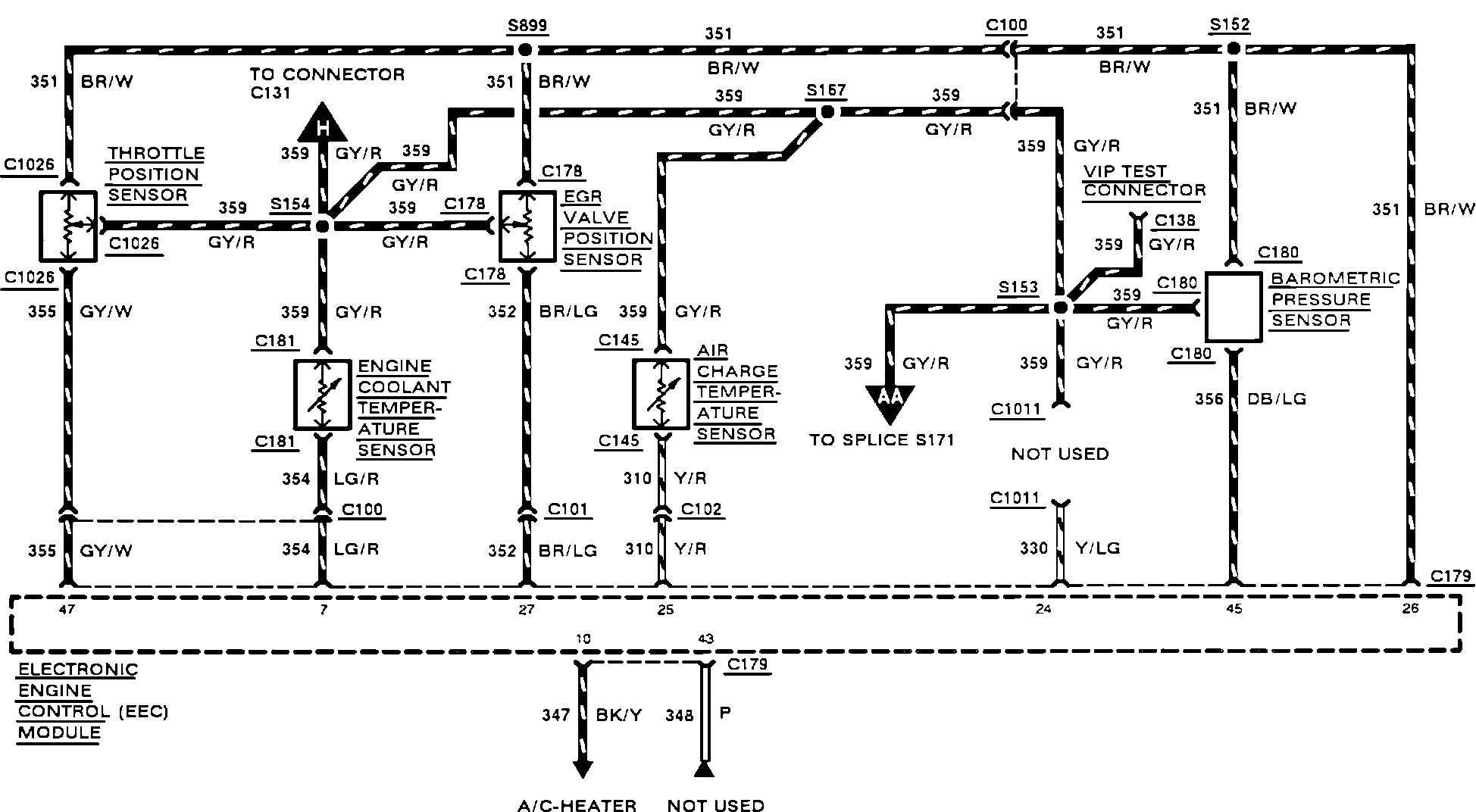

Engine Control (Electronic):

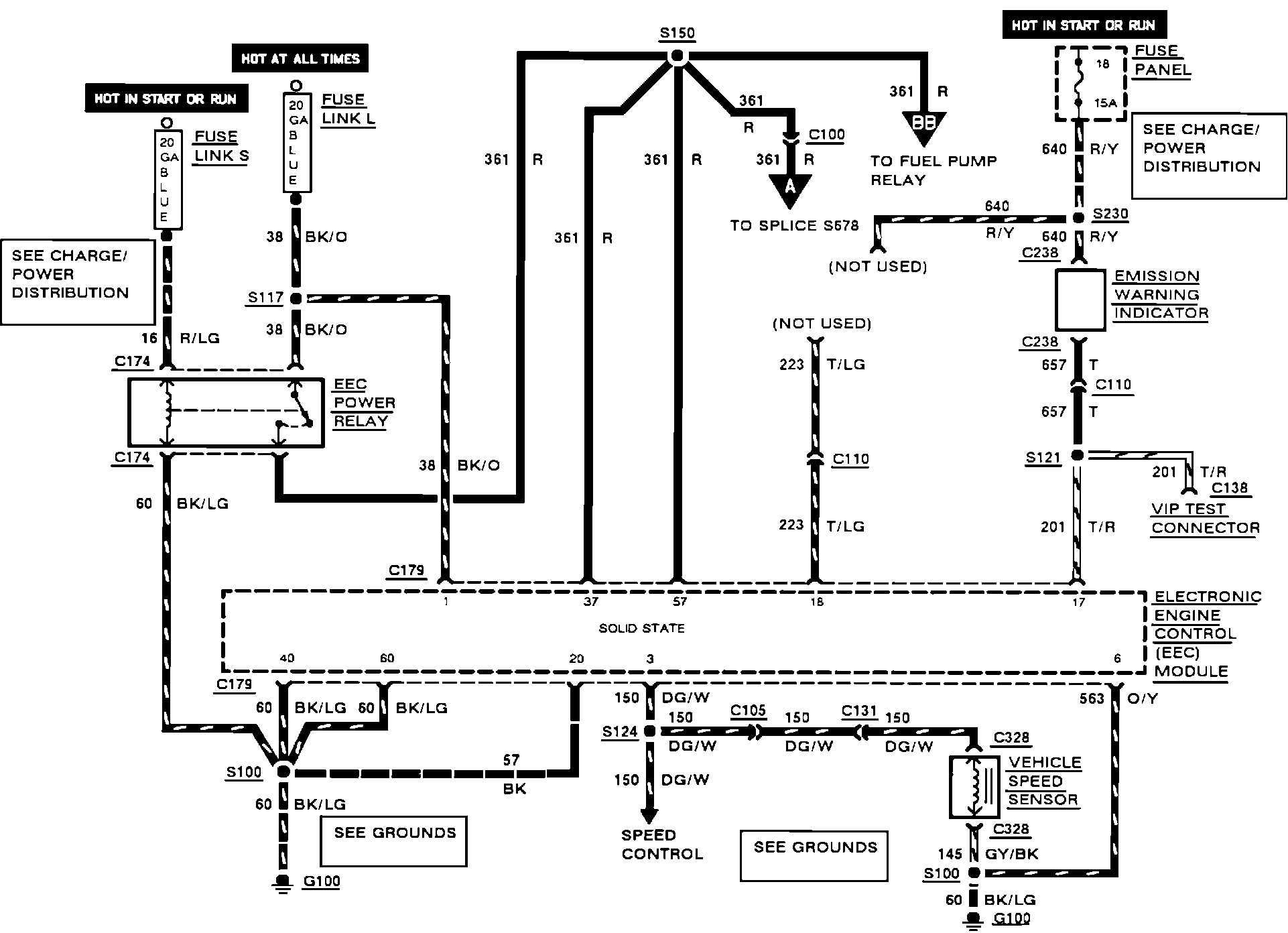

Engine Control (Electronic):

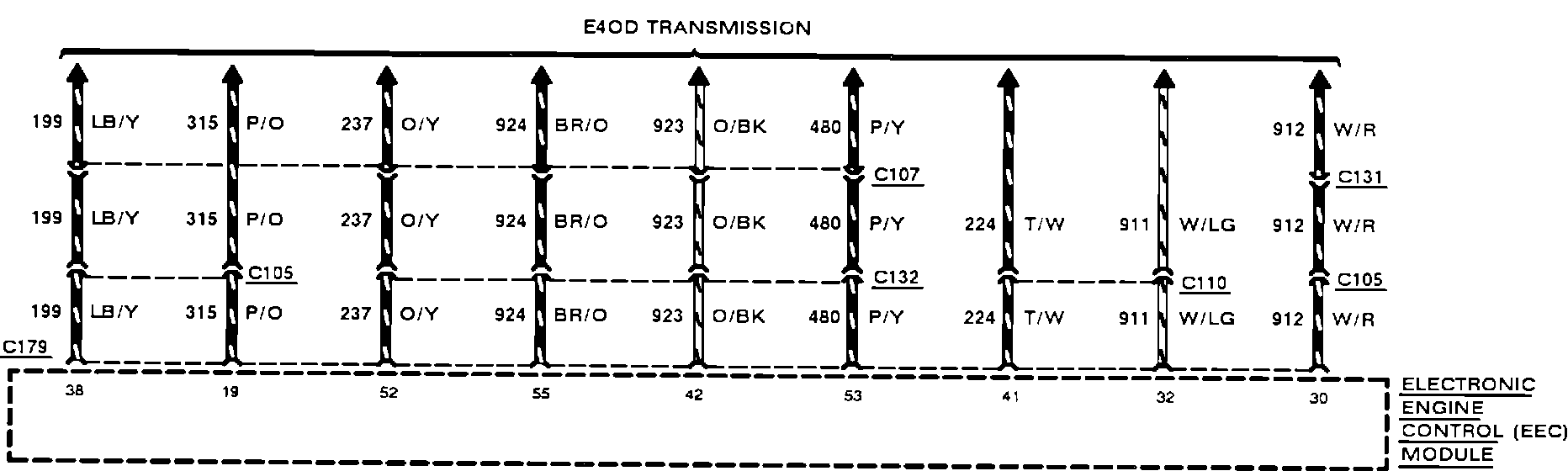

Engine Control (Electronic):
