Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1991
>>
E 250 Van V8-7.3L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Engine View -- Top
Engine View -- Top

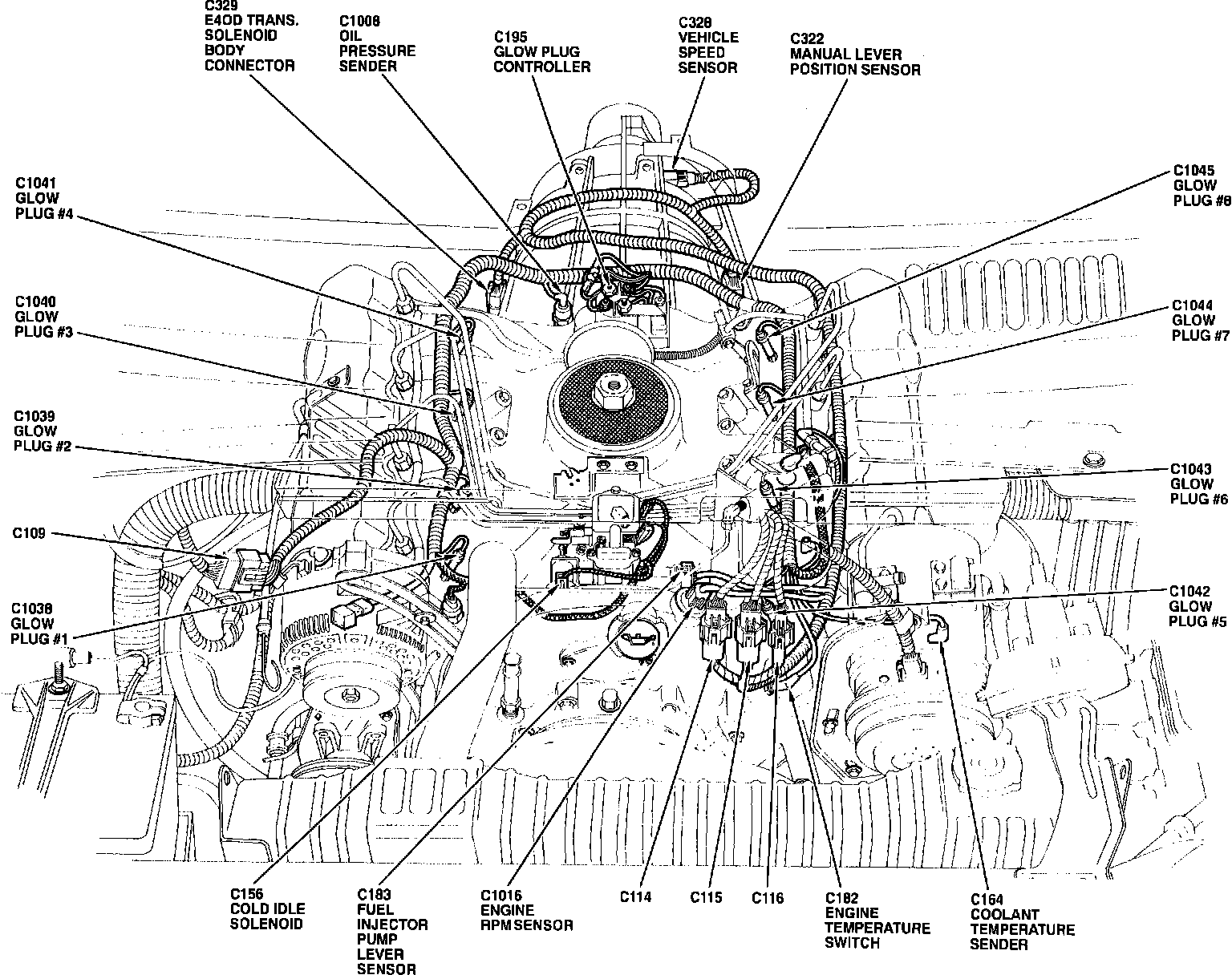

Engine -- Top View:
