Home
>>
Ford
>>
1991
>>
E 350 Van V8-460 7.5L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Battery
>>
With Integral Alternator
With Integral Alternator

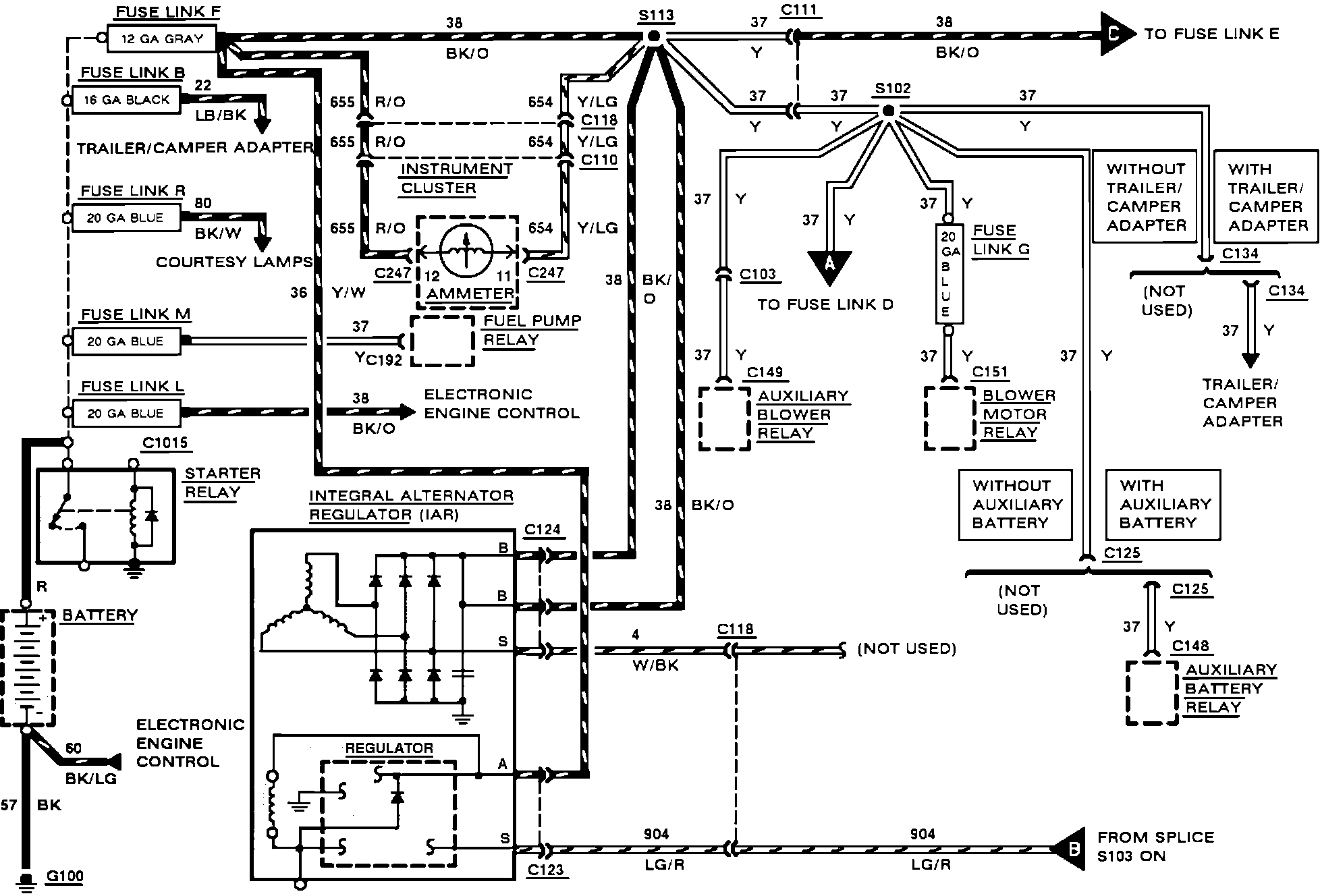

Power Distribution (With Ammeter And Iar):
