DN - EGR Valve Position Sensor/EGR Vacuum Regulator Solenoid
>>
DN96 - DN98
DN96 - DN98

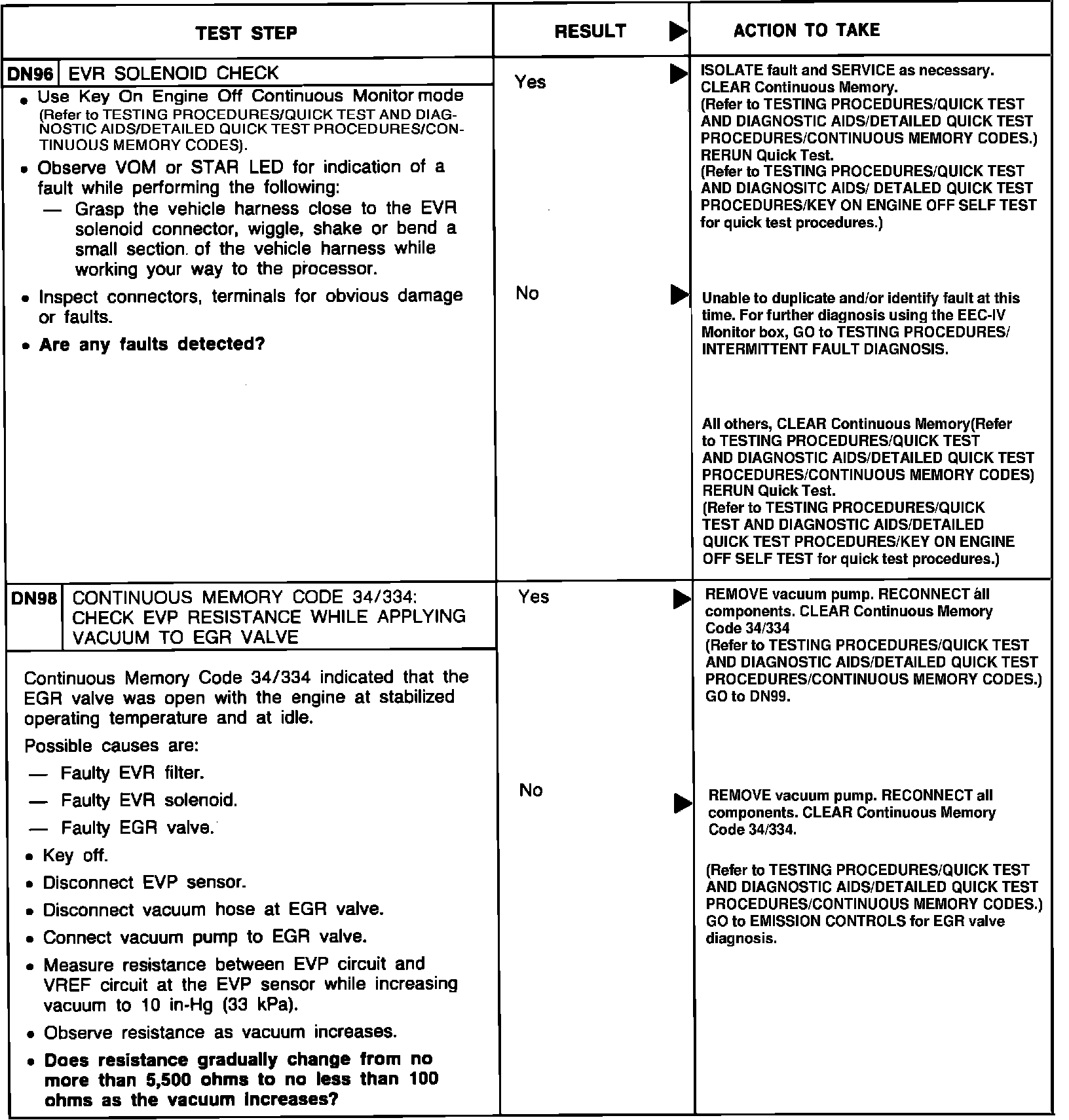

EEC-IV Pinpoint Test:
