Test D - Continuous Memory Code 224
>>

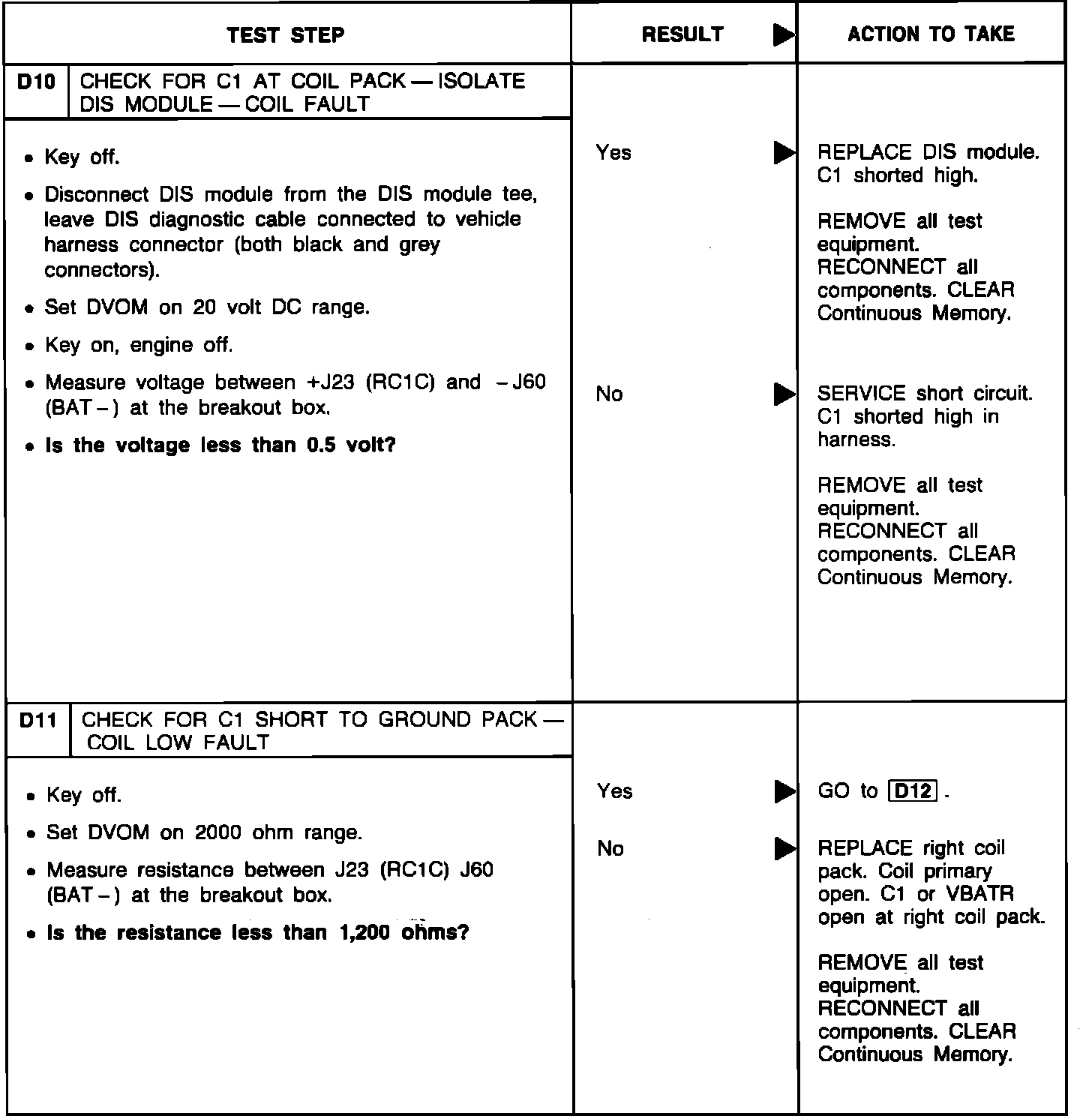

Steps D10 Thru D11
Steps D10 Thru D11
Distributorless Ignition System Pinpoint Test:
