Test D - Continuous Memory Code 224
>>

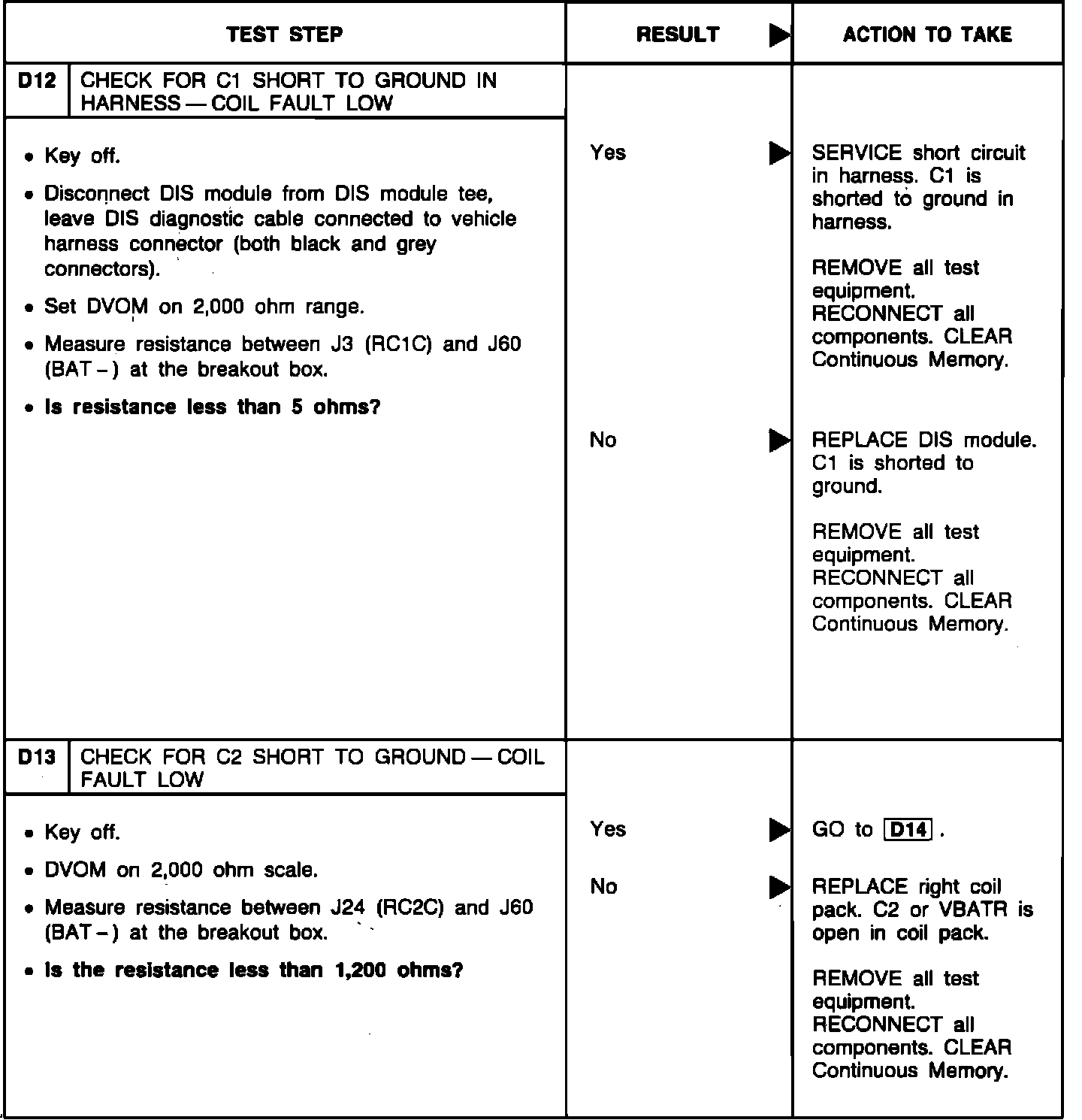

Steps D12 Thru D13
Steps D12 Thru D13
Distributorless Ignition System Pinpoint Test:
