Test D - Continuous Memory Code 224
>>

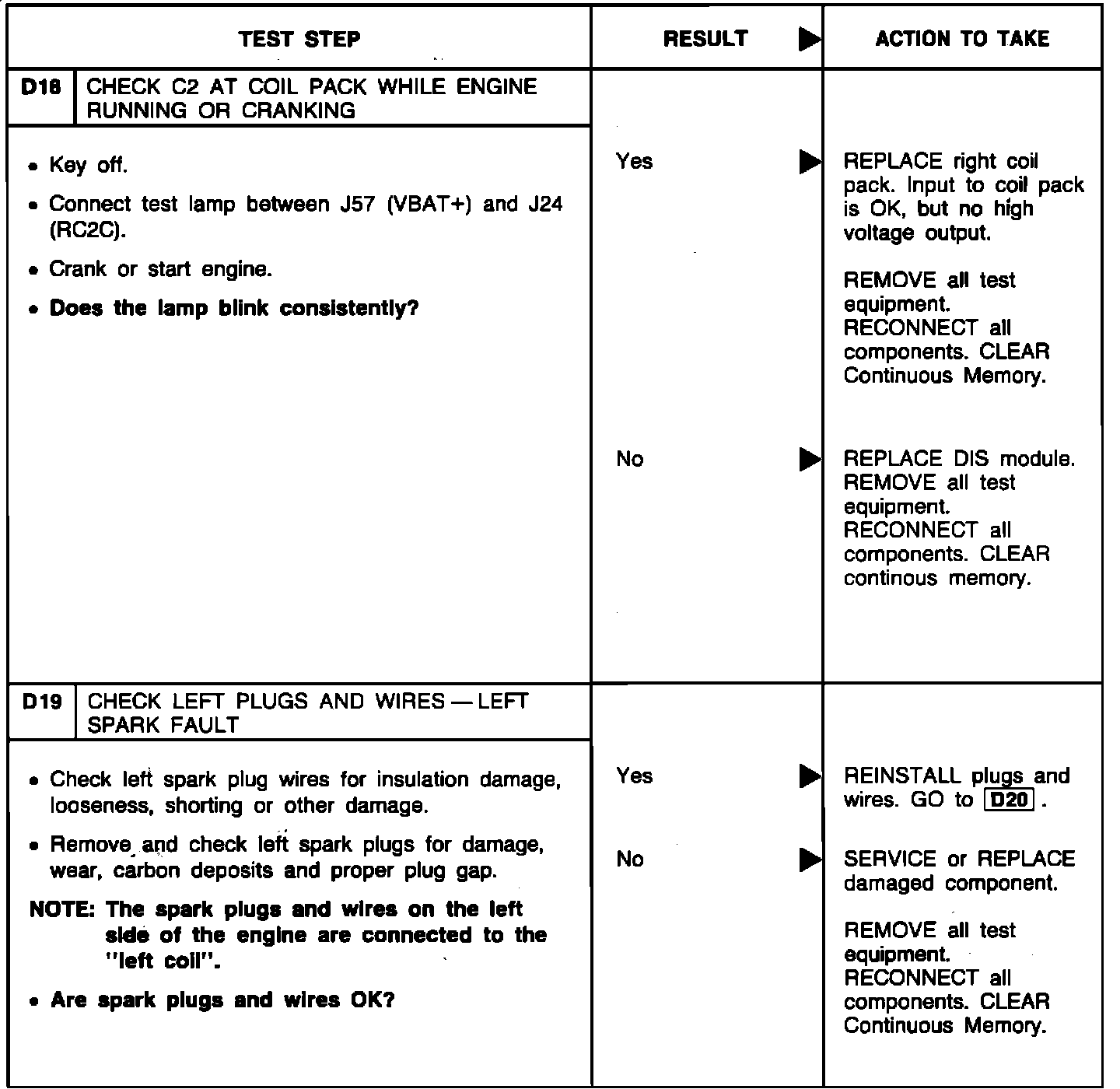

Steps D18 Thru D19
Steps D18 Thru D19
Distributorless Ignition System Pinpoint Test:
