Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1991
>>
Mustang L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test D - Continuous Memory Code 224
>>
Steps D28 Thru D29
Steps D28 Thru D29

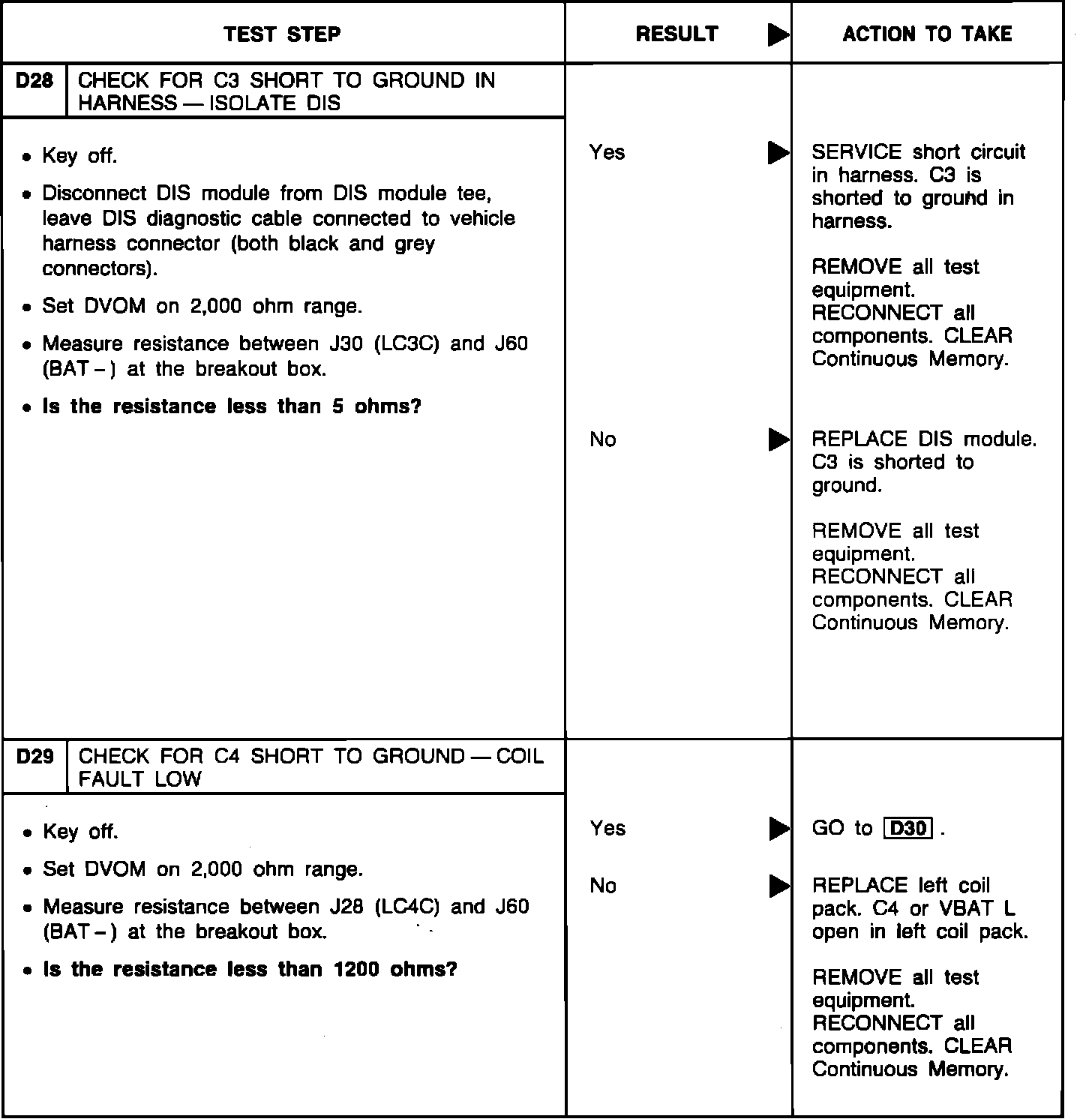

Distributorless Ignition System Pinpoint Test:
