Test D - Continuous Memory Code 224
>>
Steps D7 Thru D9

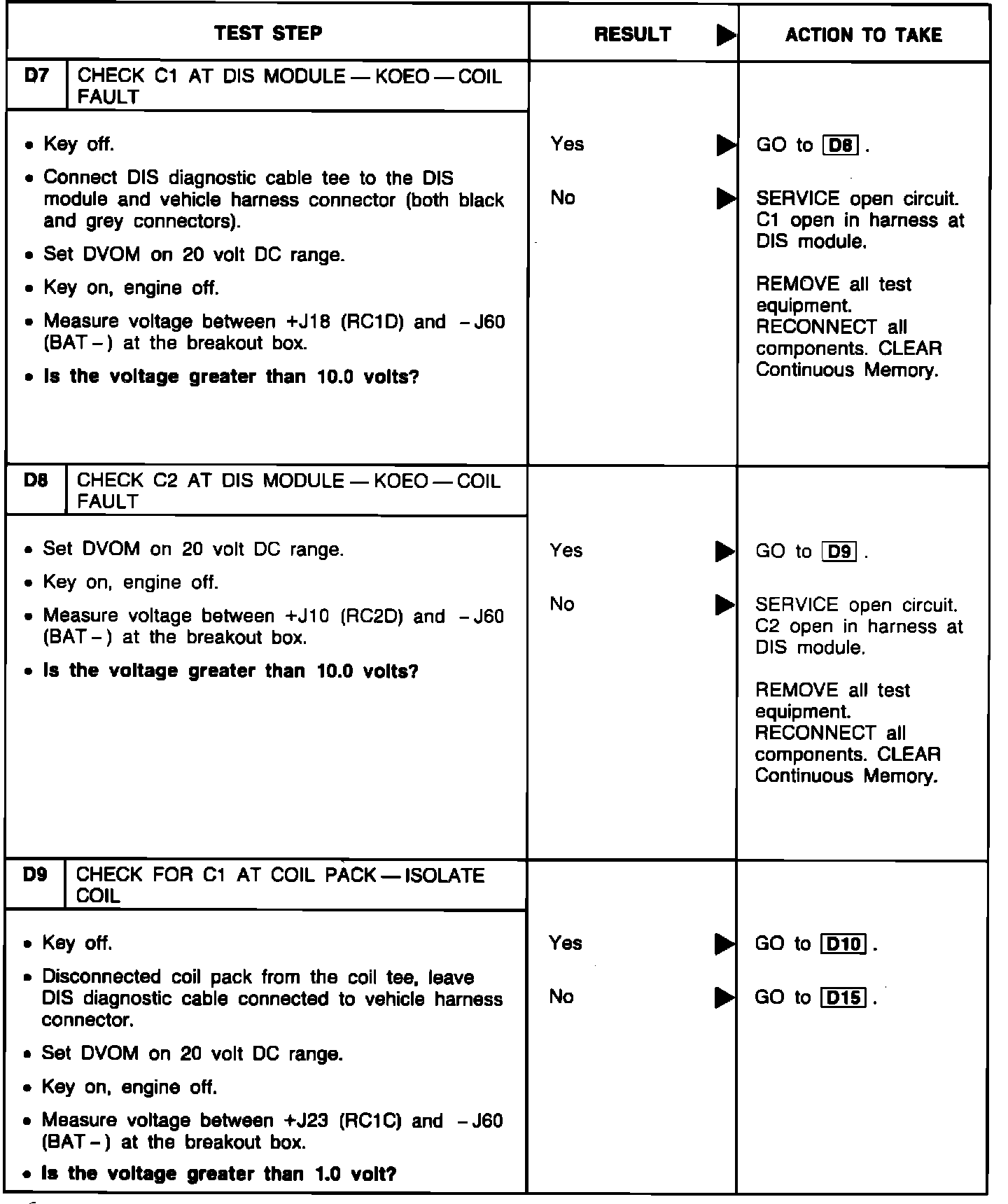

Steps D7 Thru D9
Distributorless Ignition System Pinpoint Test:
