Engine Control Module
>>
With Manual Transmission
With Manual Transmission

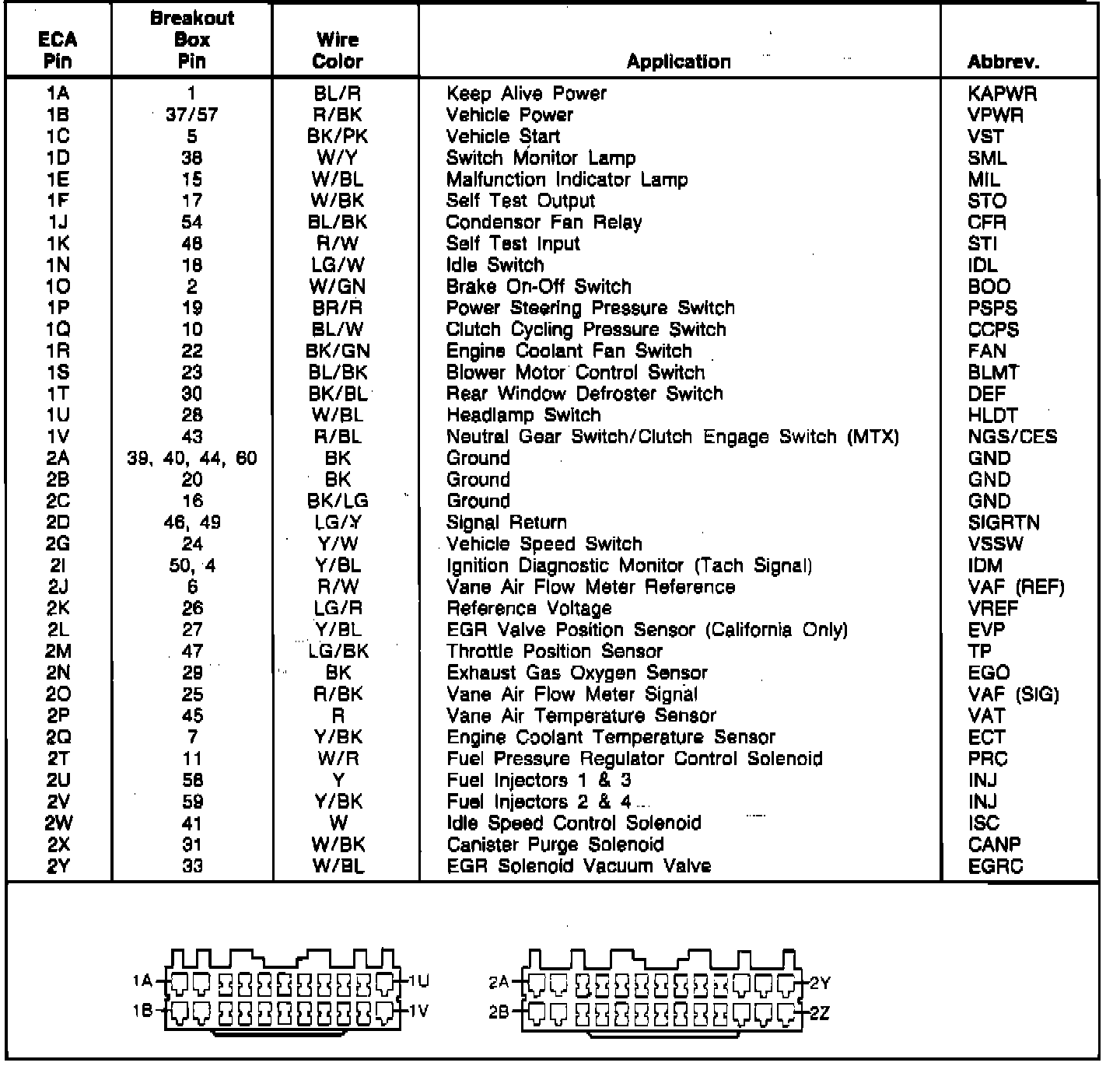

Electronic Control Assembly (ECA) Connector Pin Identification Non-Turbo (MTX):
