KF14 - Check EDF Power-to-Fan Circuit Continuity
KF14 - Check EDF Power-to-Fan Circuit Continuity

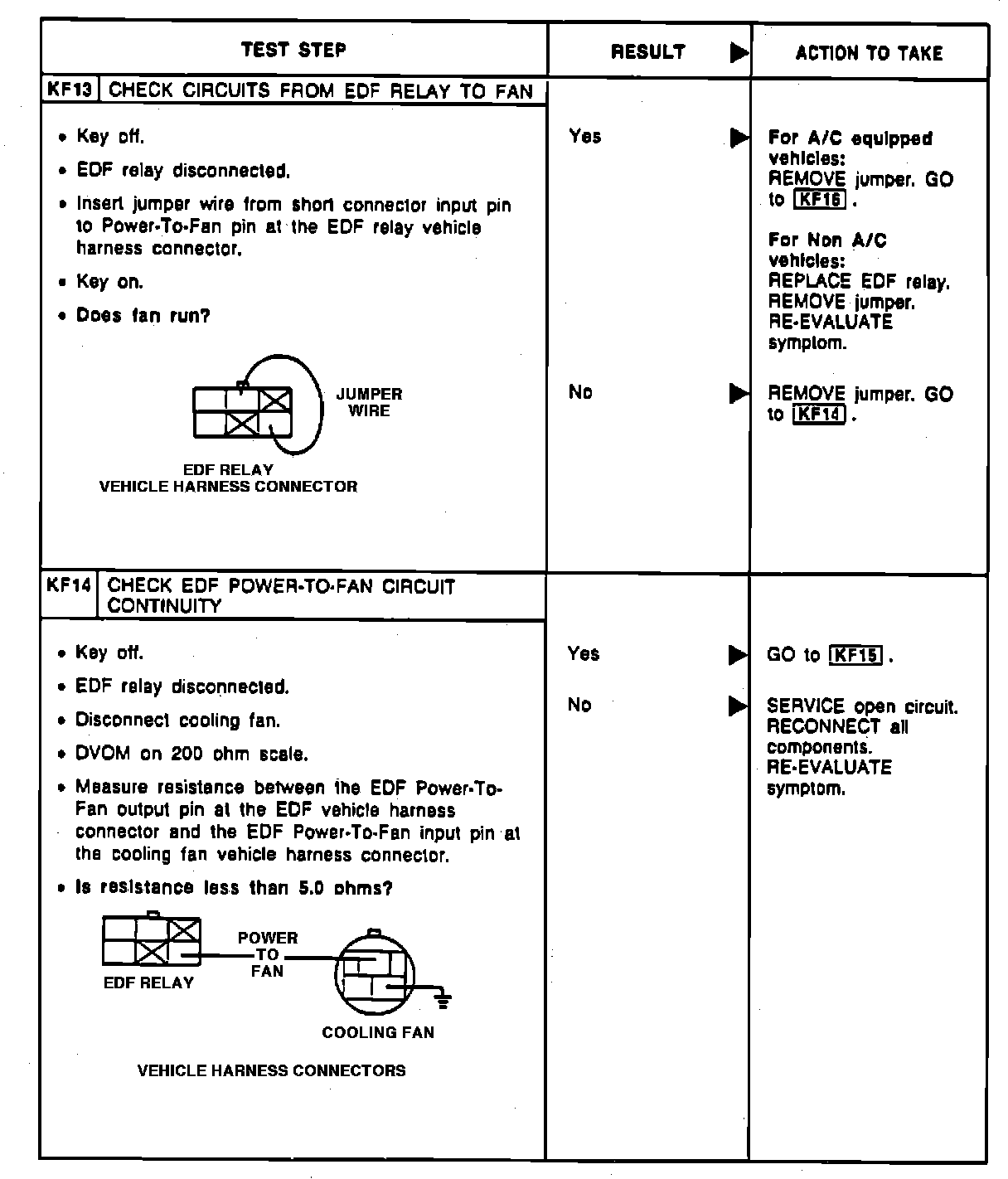

Fig. 22f Pinpoint Test Step KF13 & KF14:
