Home >> Ford >> 1991 >> Probe L4-133 2.2L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Testing and Inspection >> BME1: Ground Blower Motor

BME1: Ground Blower Motor

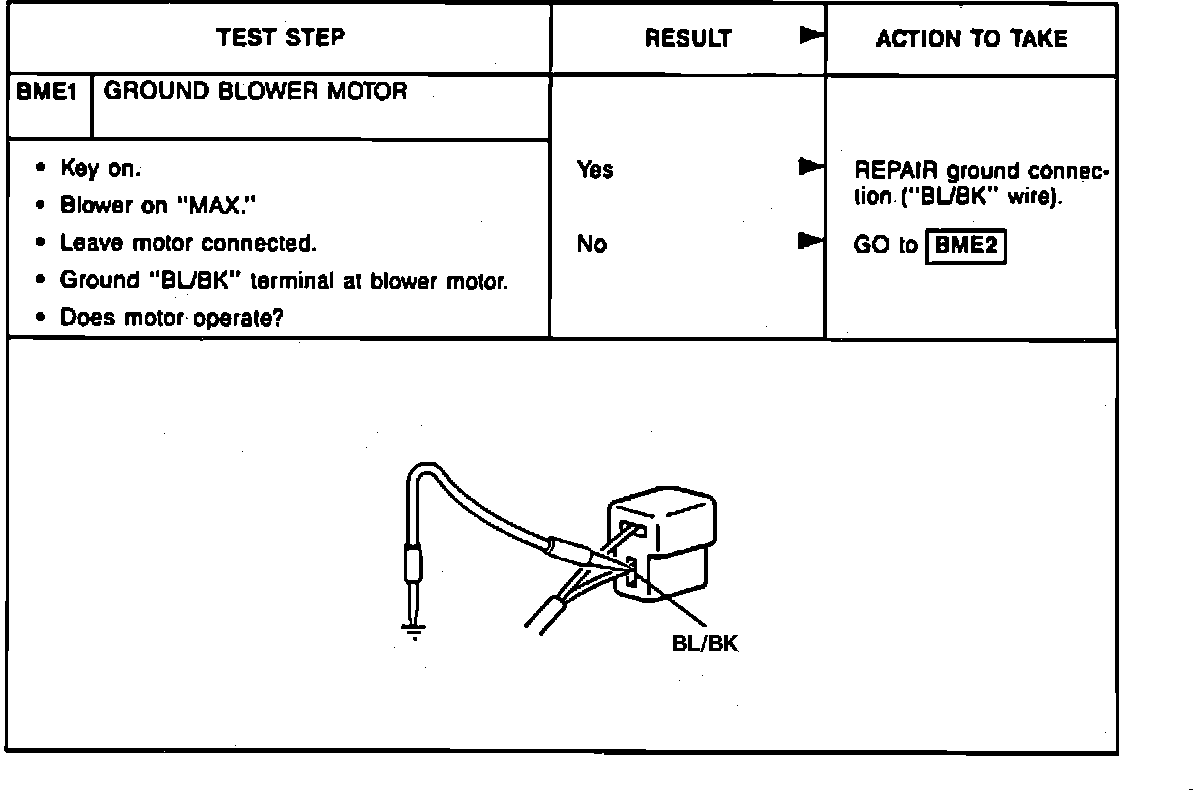

Fig. 3 Blower Motor Diagnosis (BME1).:
