CC12: Check Blower Switch
CC12: Check Blower Switch

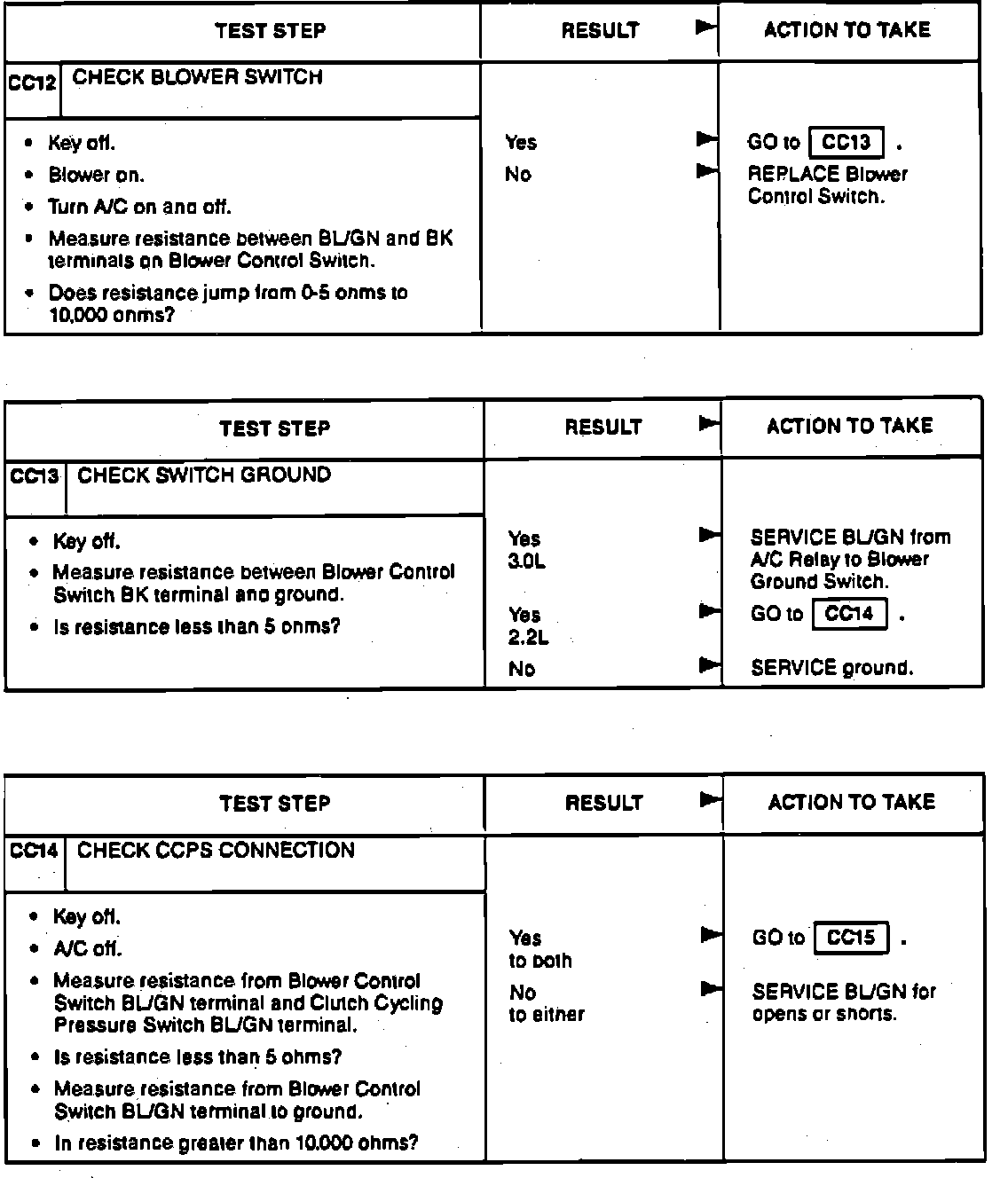

Fig. 58 Compressor clutch diagnosis (Tests CC12, CC13 & CC14):
