Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1991
>>
Probe L4-133 2.2L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Reading and Clearing Diagnostic Trouble Codes
>>
Reading Diagnostic Trouble Codes
>>
Quick Tests (Diagnostic Self-Tests)
>>
Quick Tests
>>

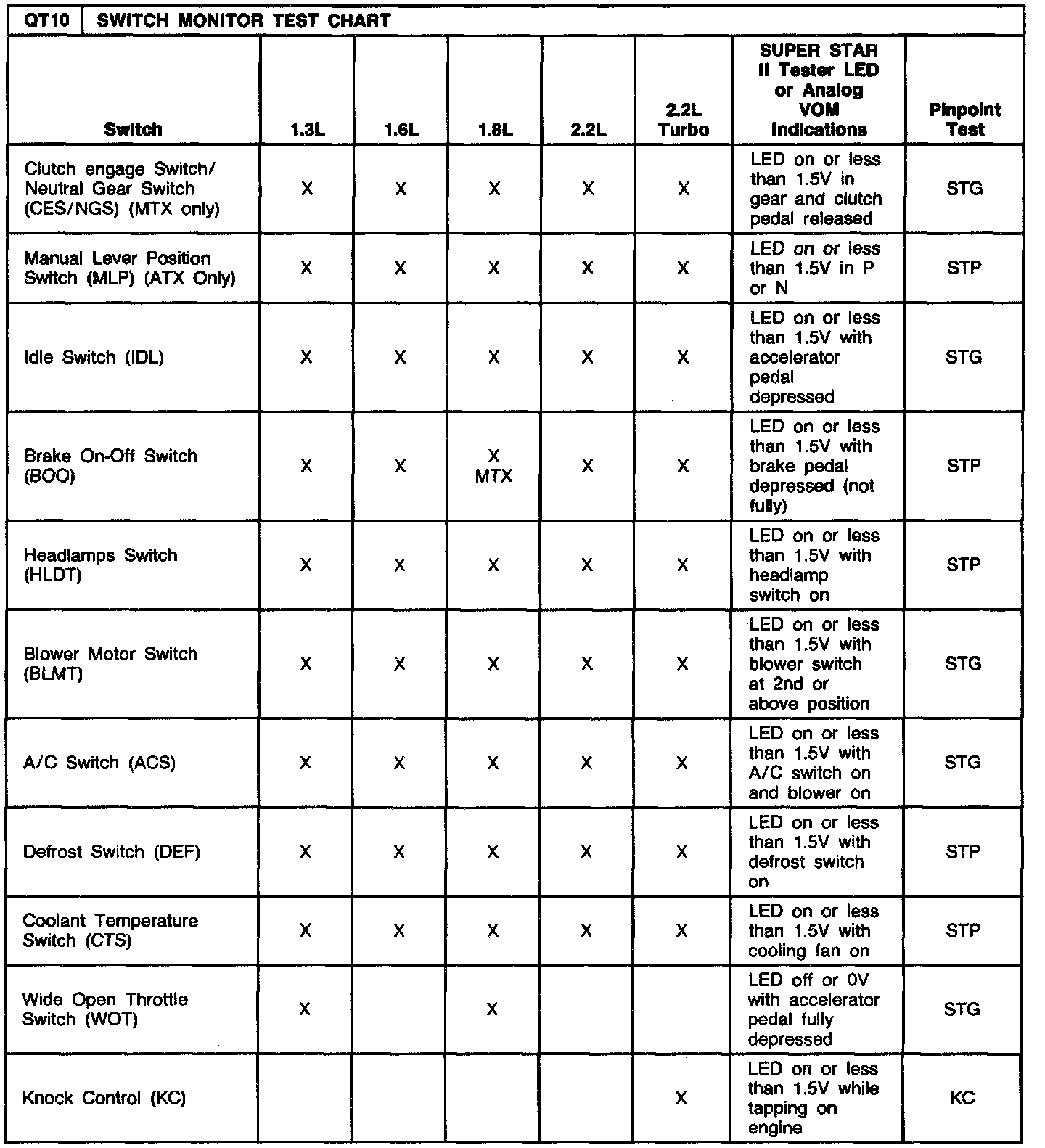

QT10 - Switch Monitor Test Chart
QT10 - Switch Monitor Test Chart
