Air Flow Meter/Sensor: Specifications

*** UPDATED BY TSB #91-14-B1 DATED 7/1/91

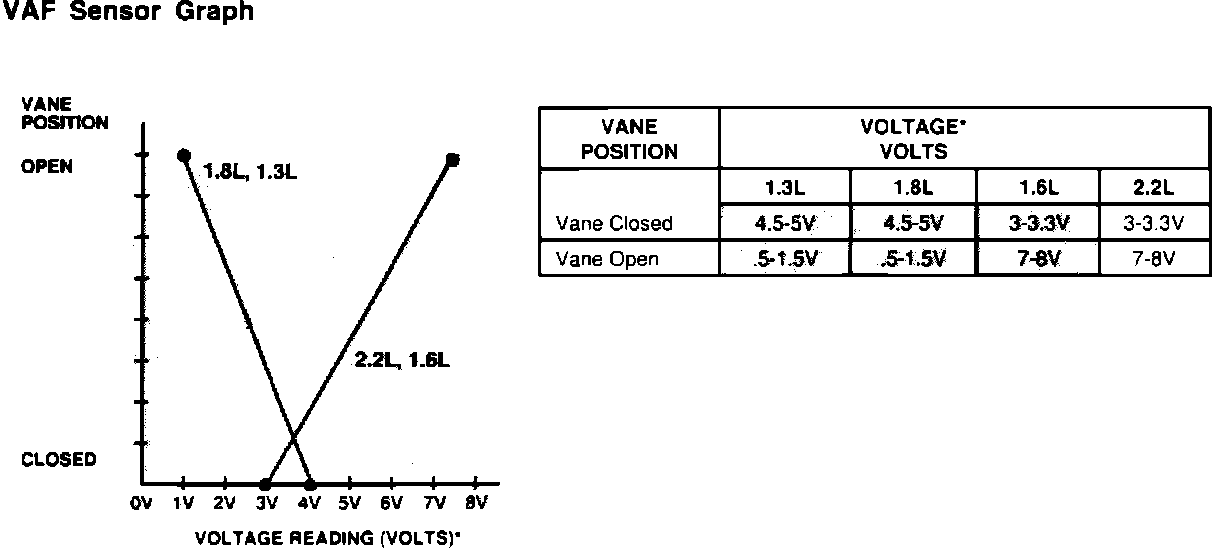

Vane Air Flow (VAF) Data Chart:
