Ford
>>
1991
>>
Probe L4-133 2.2L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
GL Models
GL Models

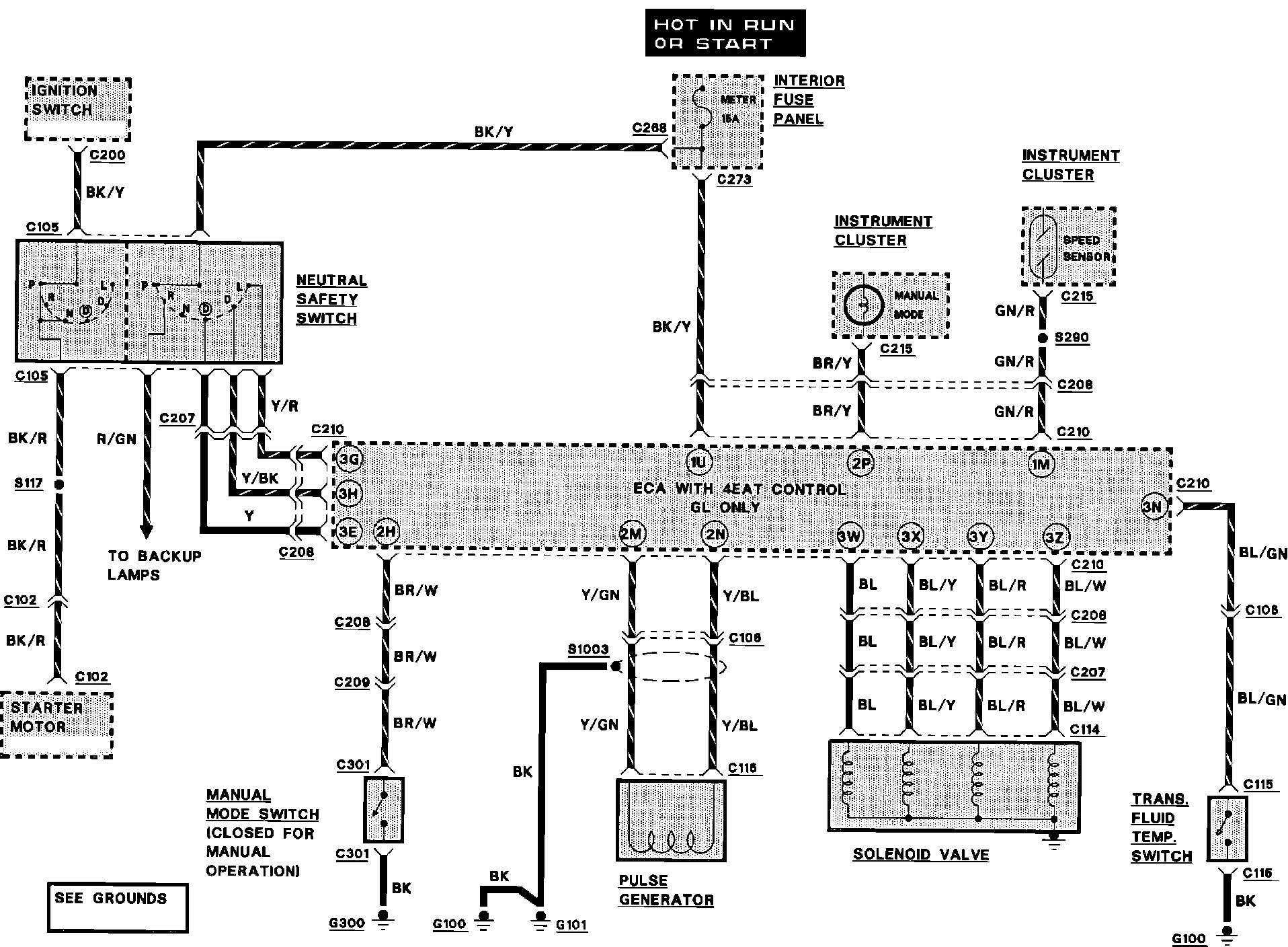

Transmission Controls (Gl):
