Engine Coolant Temperature (ECT) Sensor
Engine Coolant Temperature (ECT) Sensor

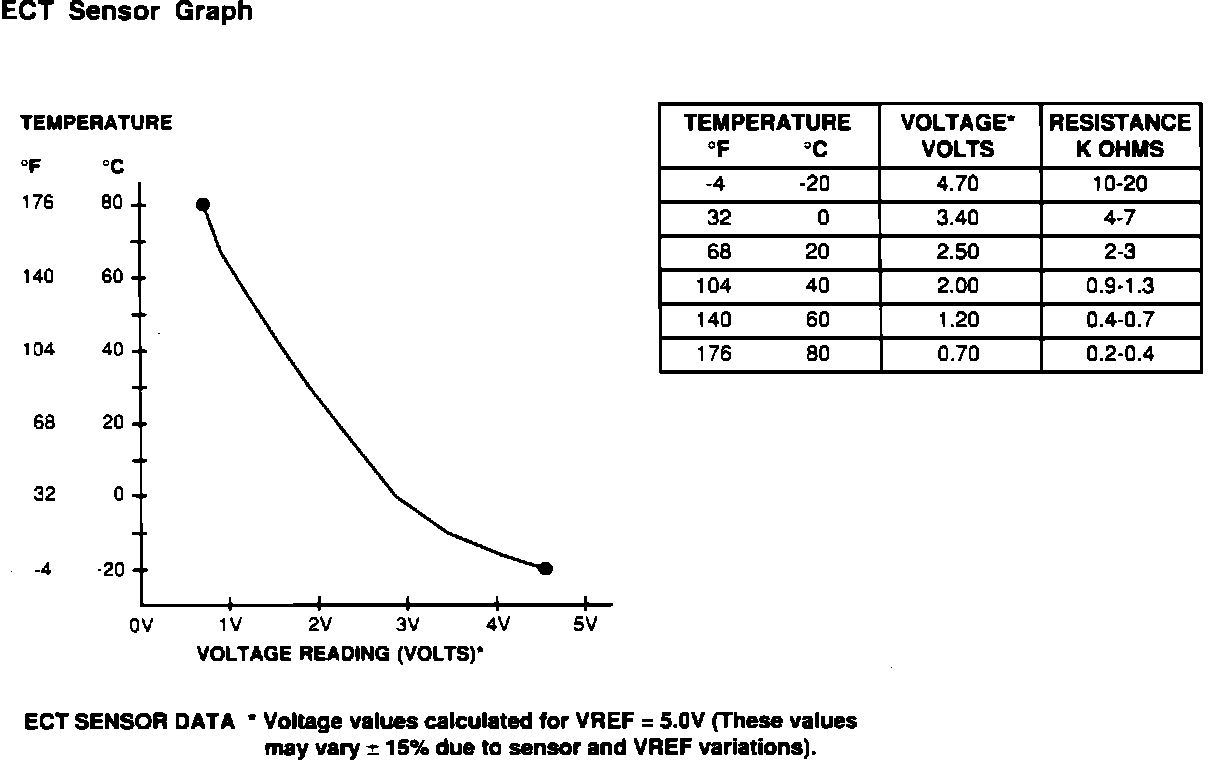

Engine Coolant Temperature (ECT) Sensor Data Chart:
