Interior Fuse Panel

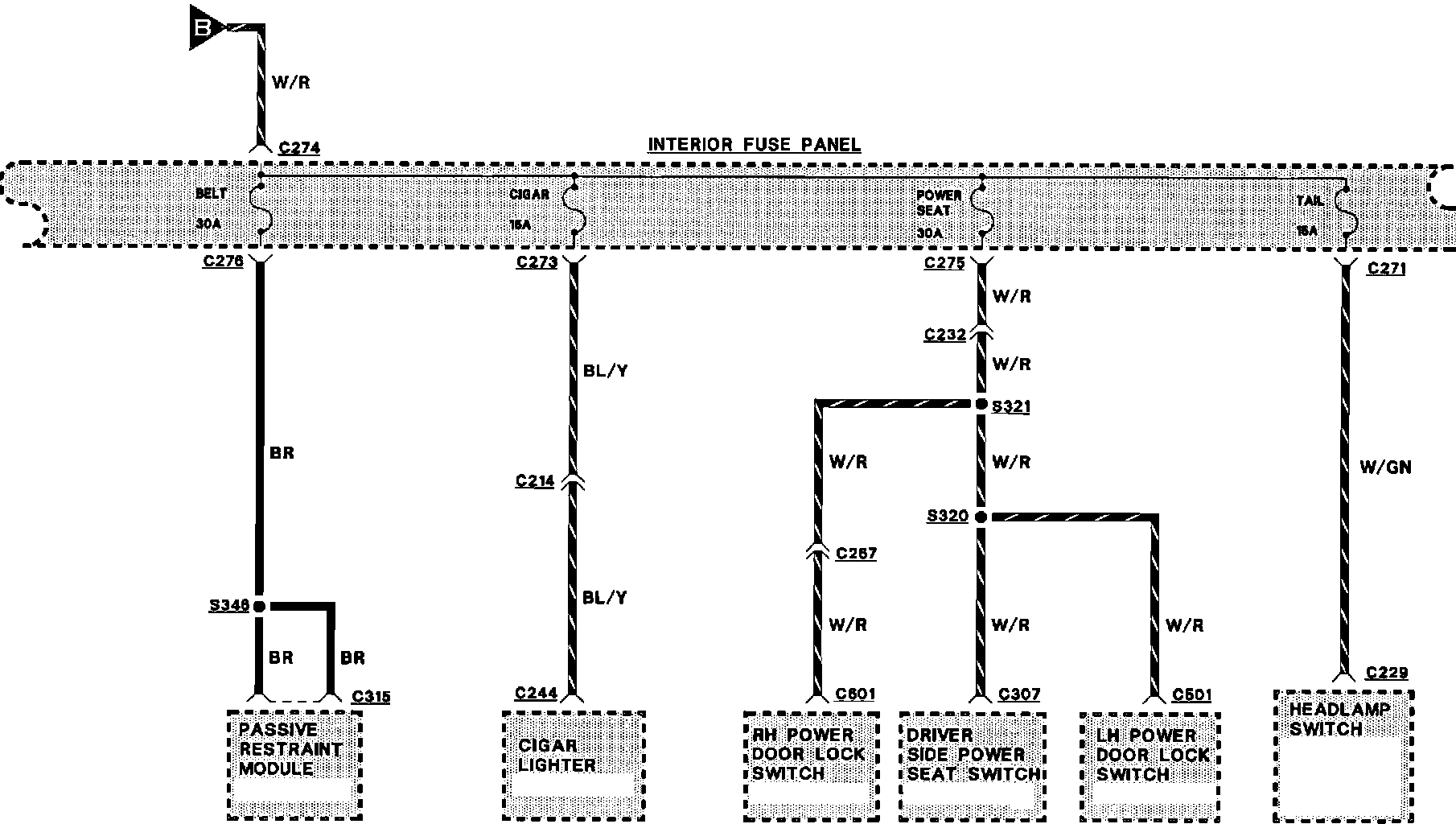

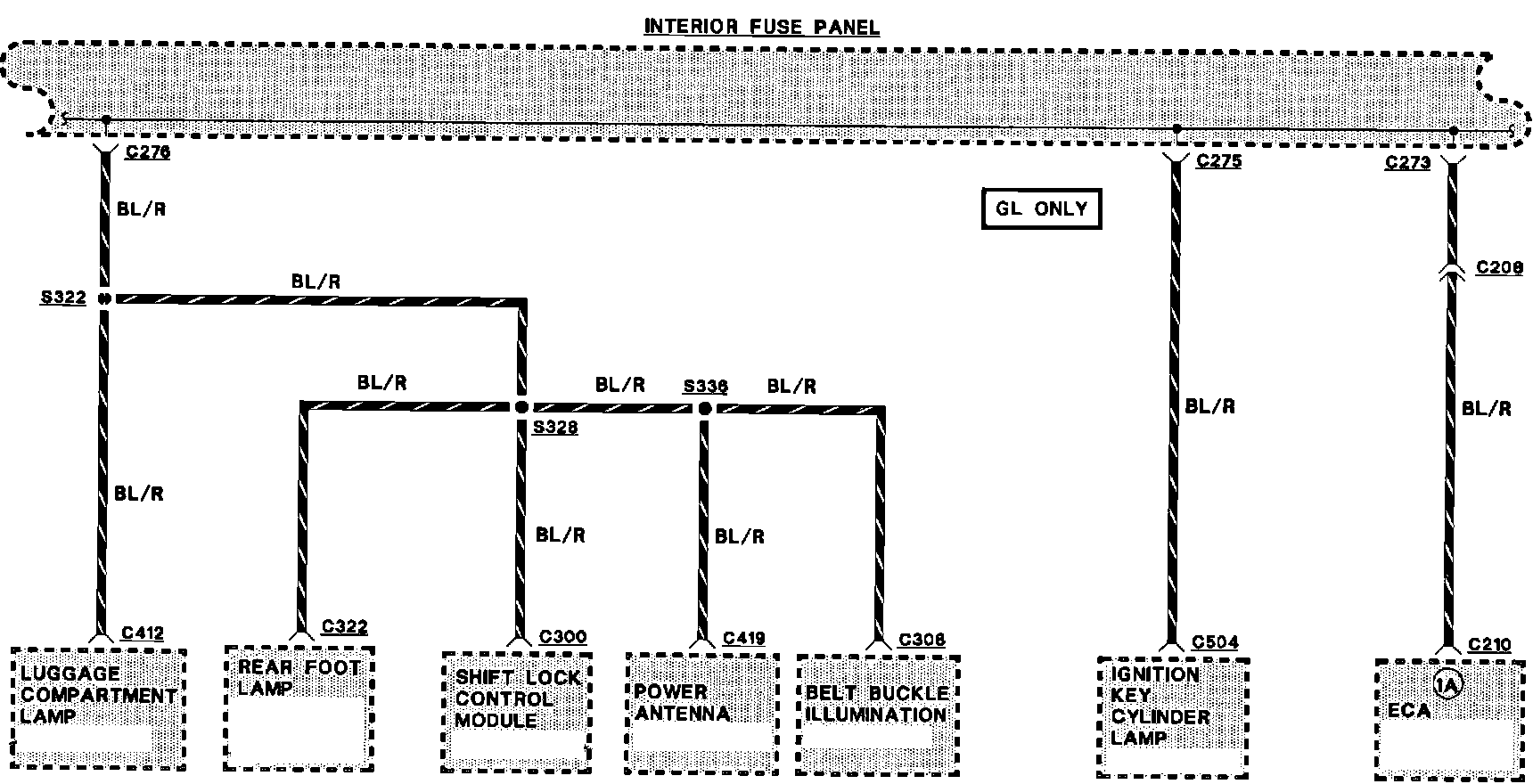

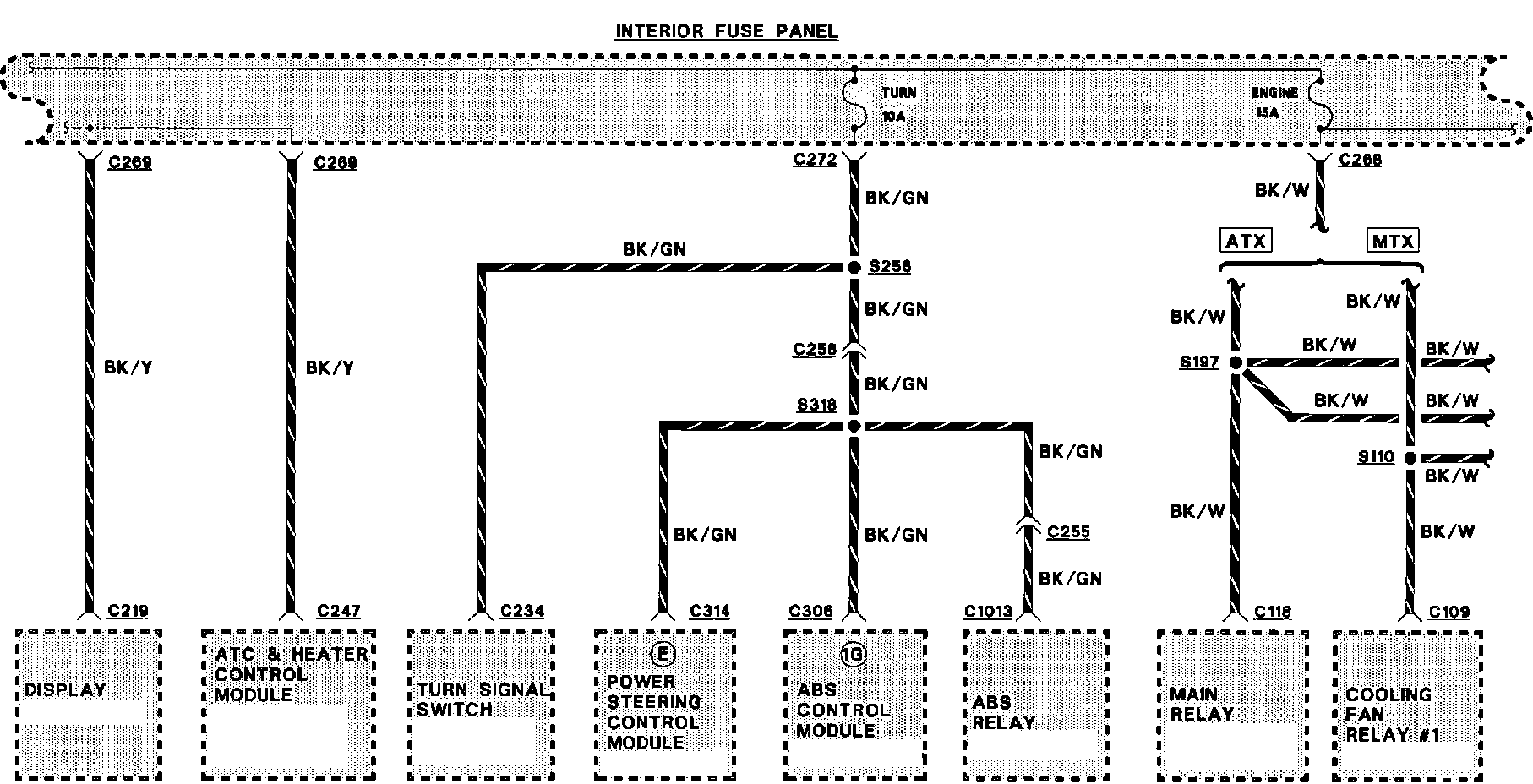

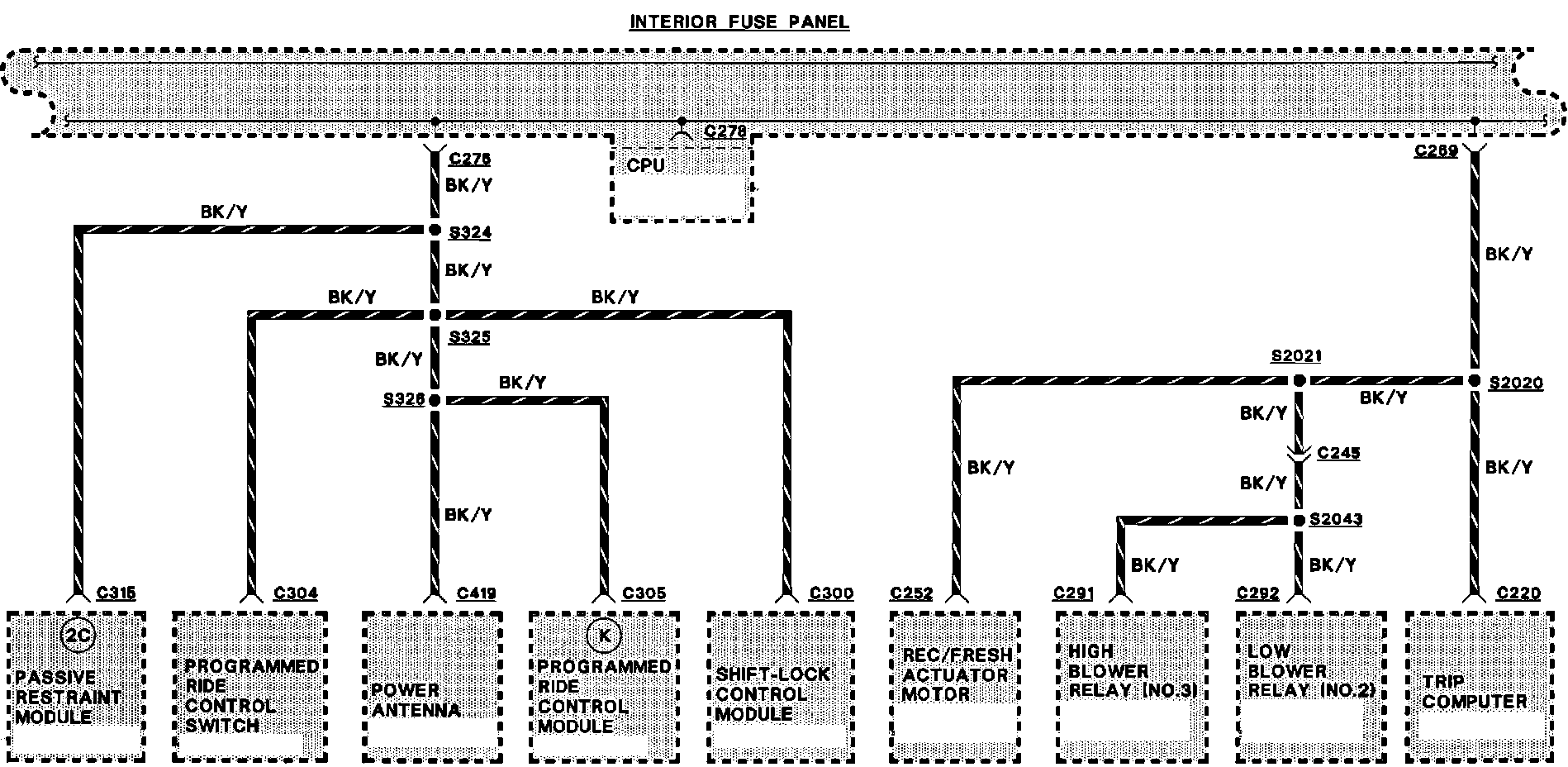

Power Distribution (Fuse 8 - Interior Fuse Panel):

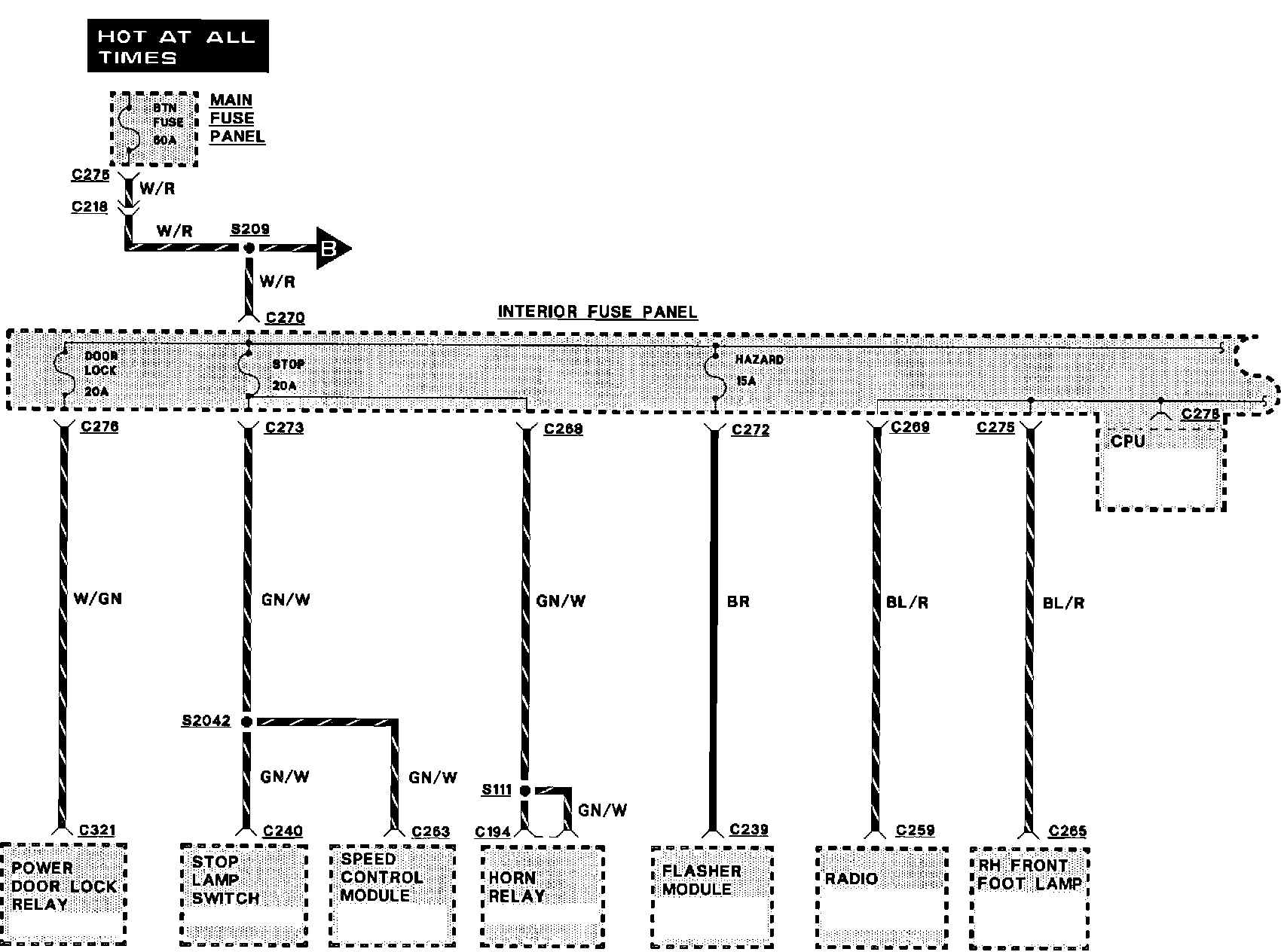

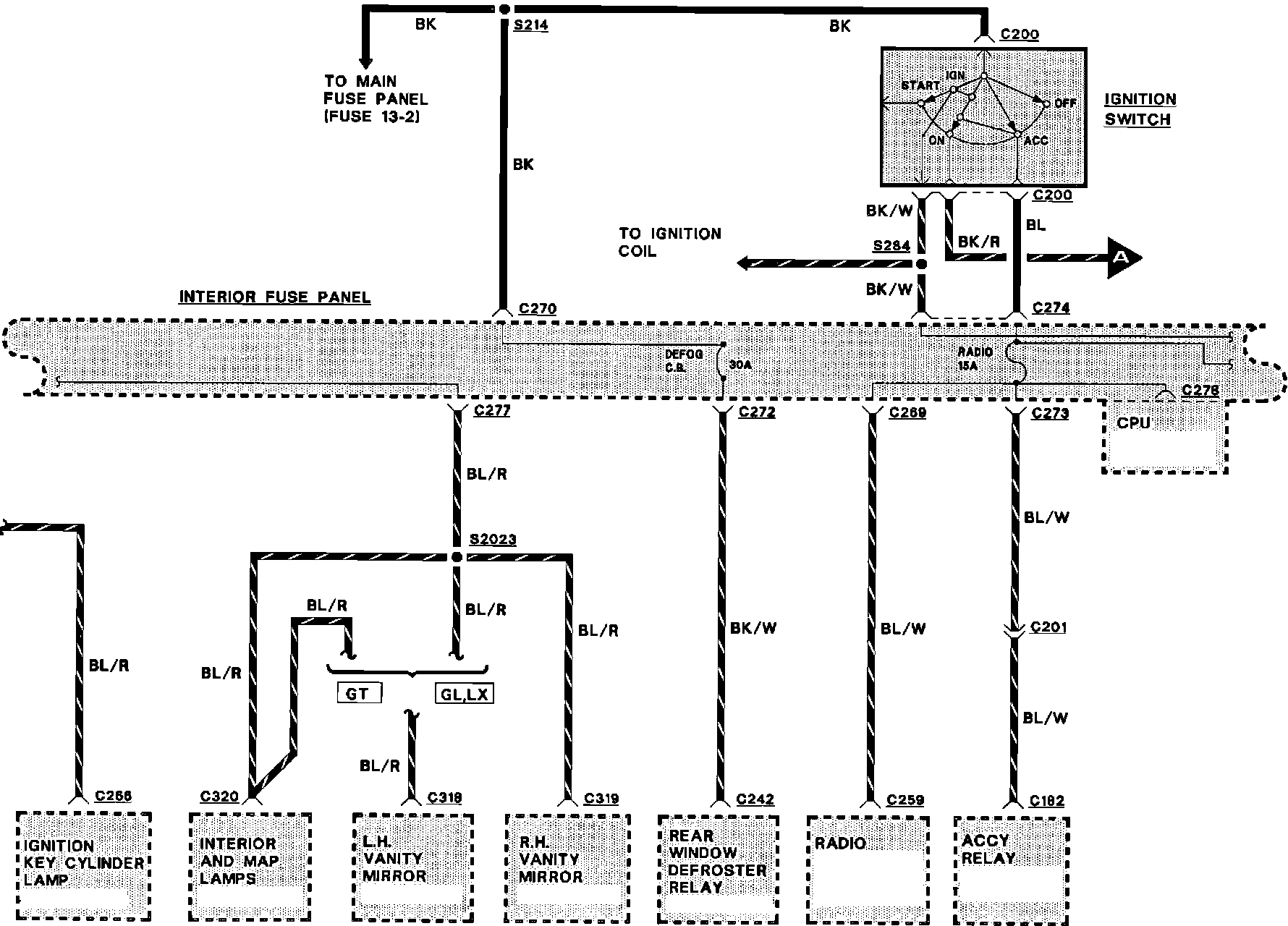

Power Distribution (Fuse 8 - Interior Fuse Panel):

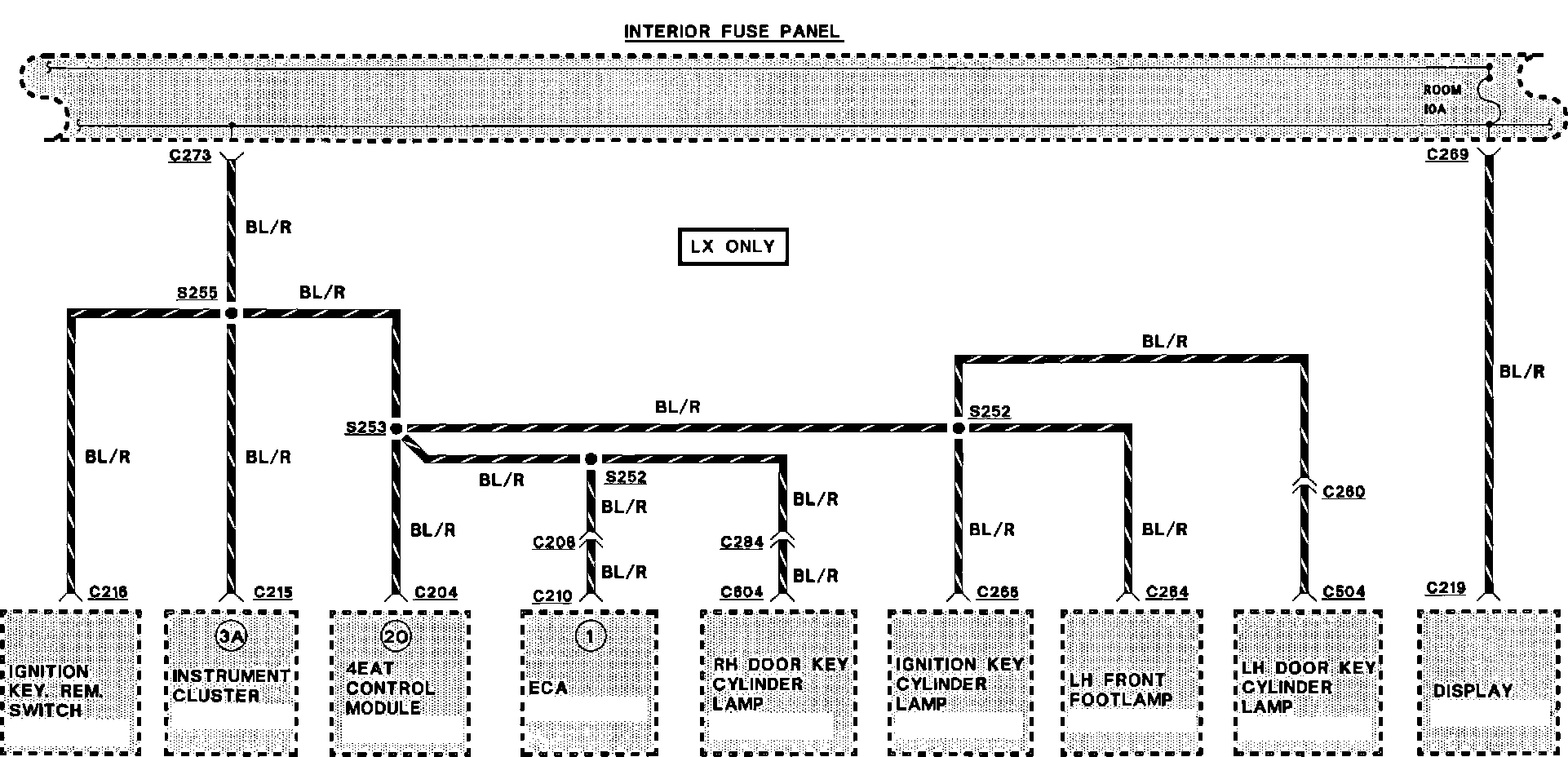

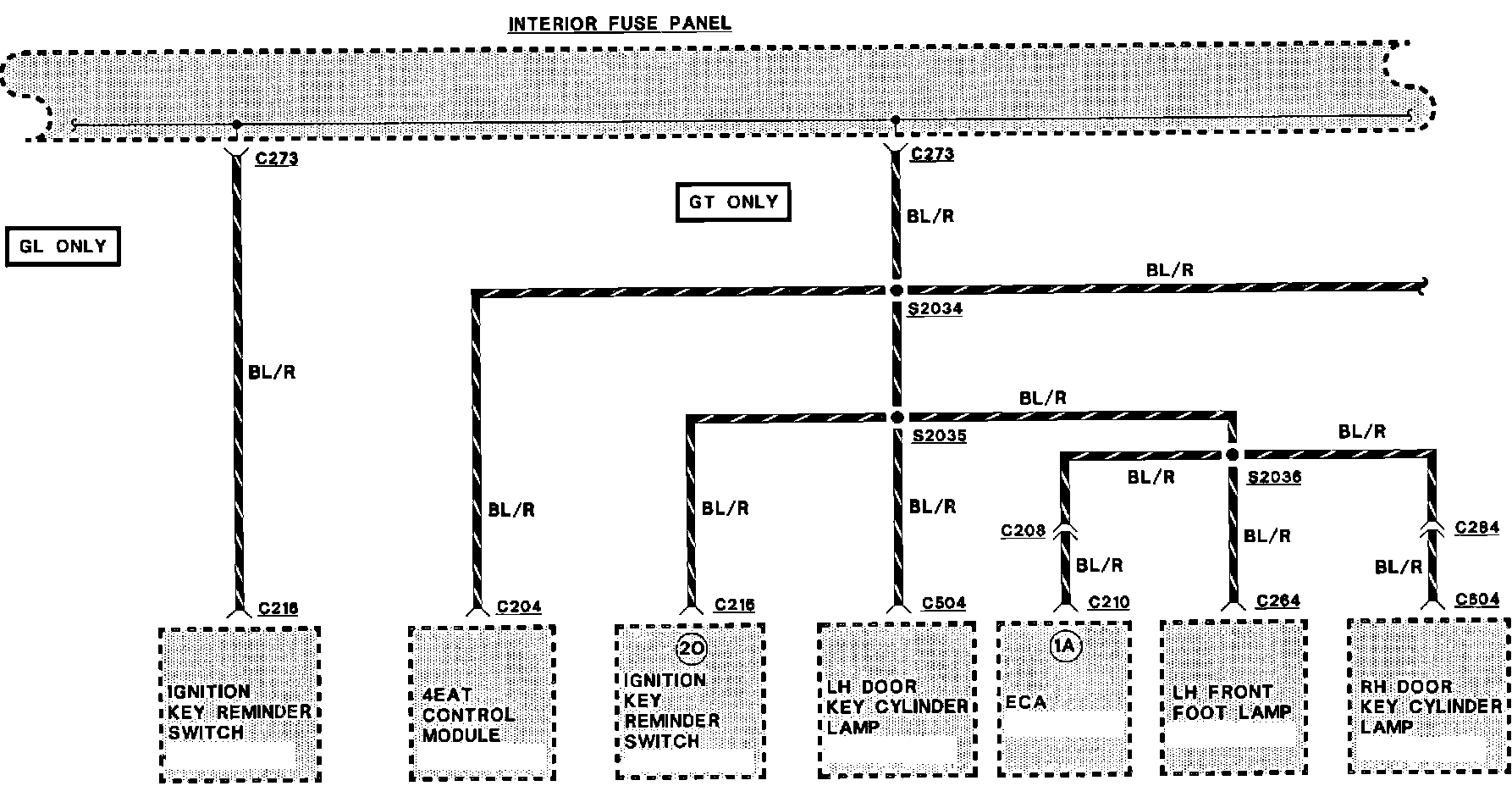

Power Distribution (Fuse 8 - Interior Fuse Panel):

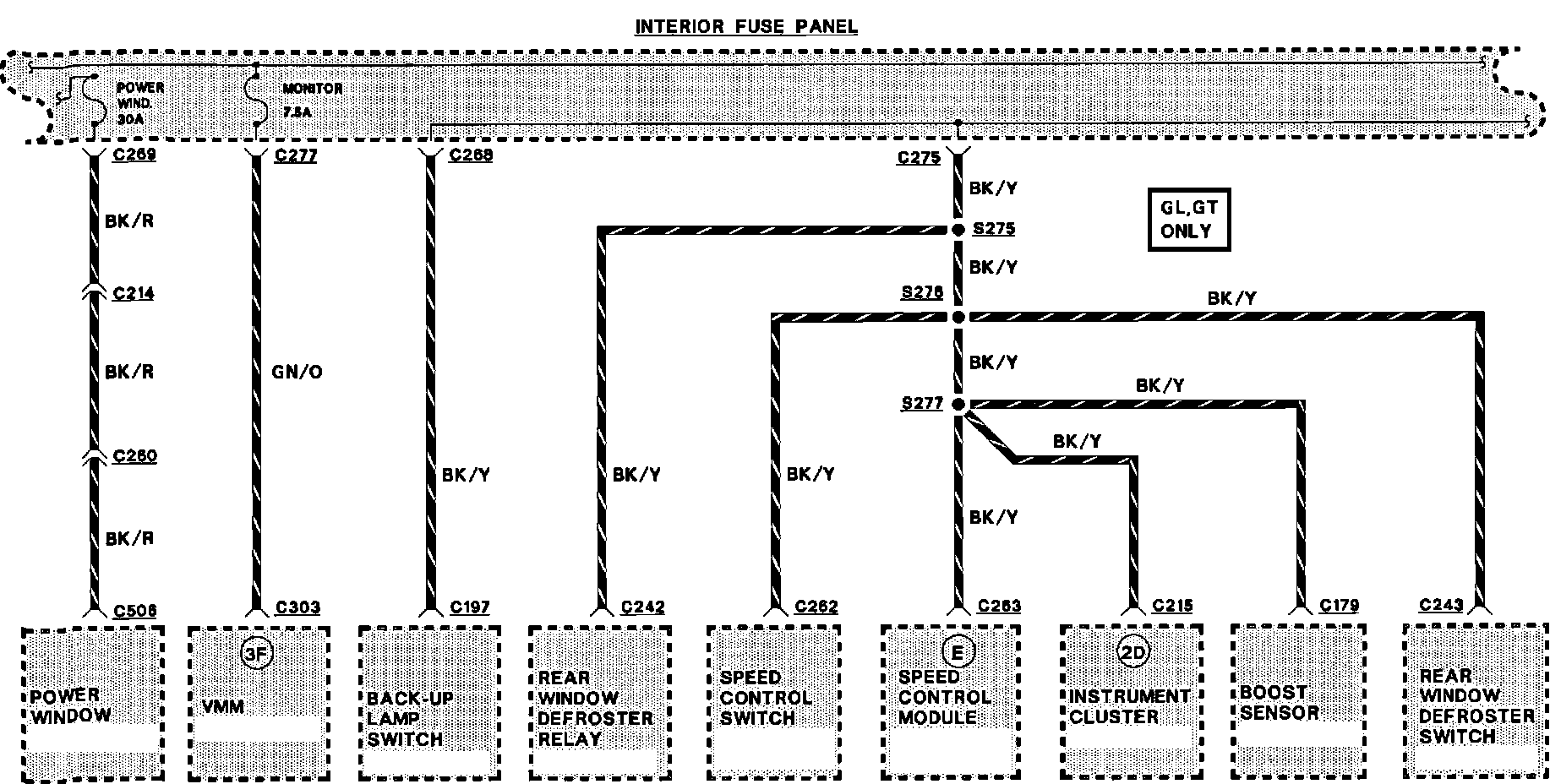

Power Distribution (Fuse 8 - Interior Fuse Panel):

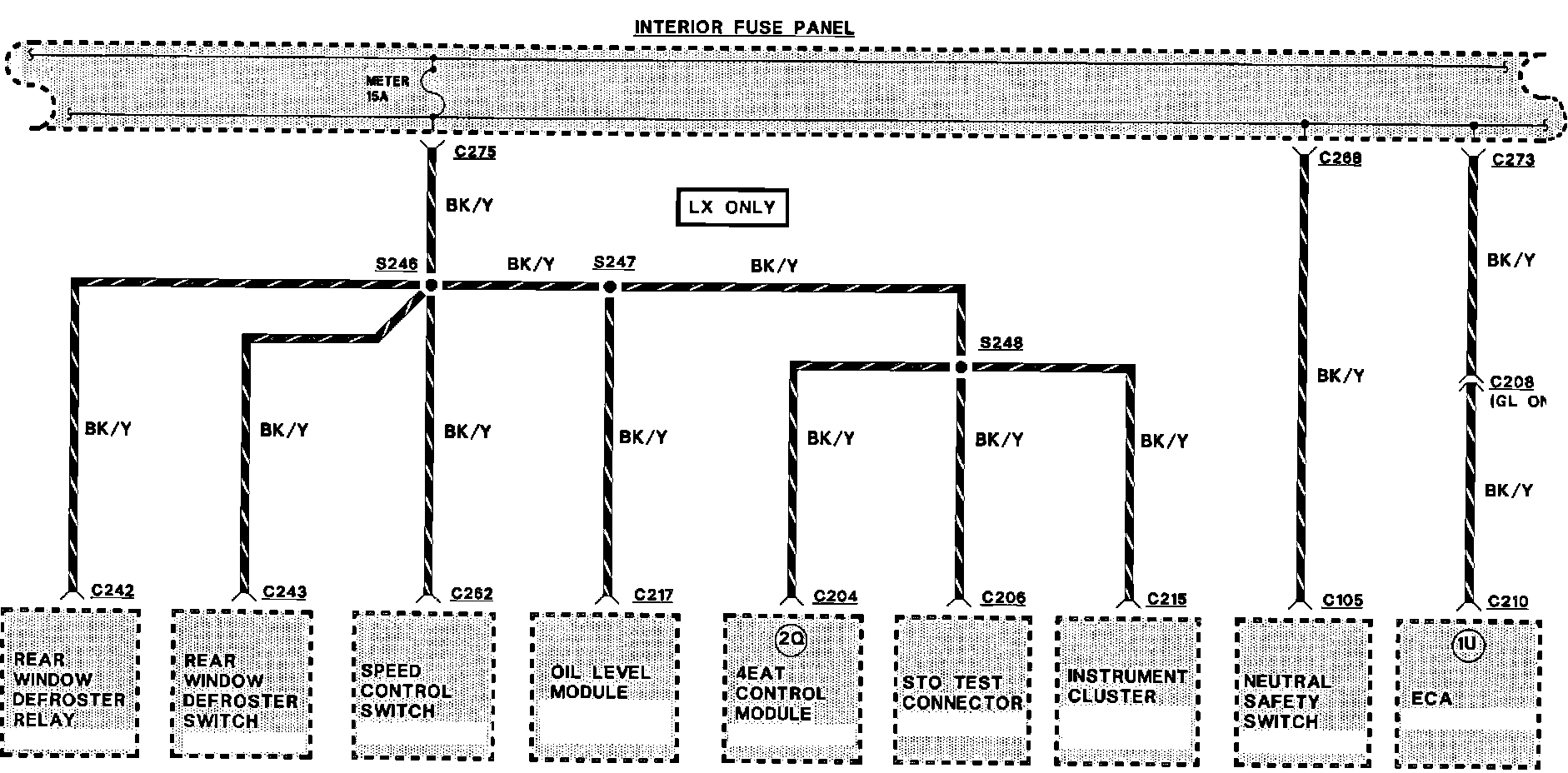

Power Distribution (Fuse 8 - Interior Fuse Panel):



Power Distribution (Fuse 8 - Interior Fuse Panel):



Power Distribution (Fuse 8 - Interior Fuse Panel):

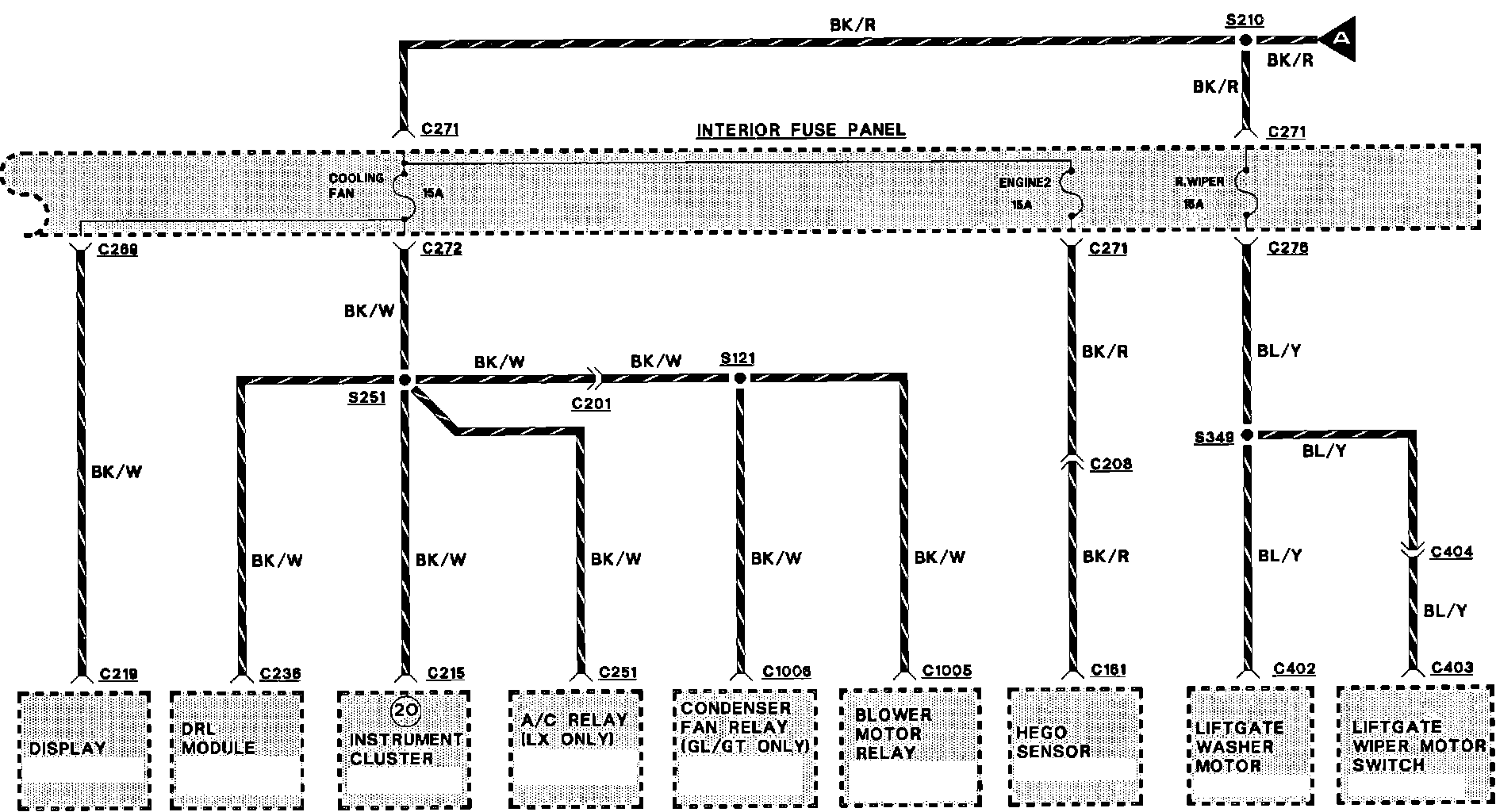

Power Distribution (Fuse 8 - Interior Fuse Panel):



Power Distribution (Fuse 8 - Interior Fuse Panel):



Power Distribution (Fuse 8 - Interior Fuse Panel):



Power Distribution (Fuse 8 - Interior Fuse Panel):



Power Distribution (Fuse 8 - Interior Fuse Panel):
