Ford
>>
1991
>>
Ranger 2WD L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Driver/Vehicle Information Display
>>
Warning Indicators
>>
Warning Chime
Warning Chime

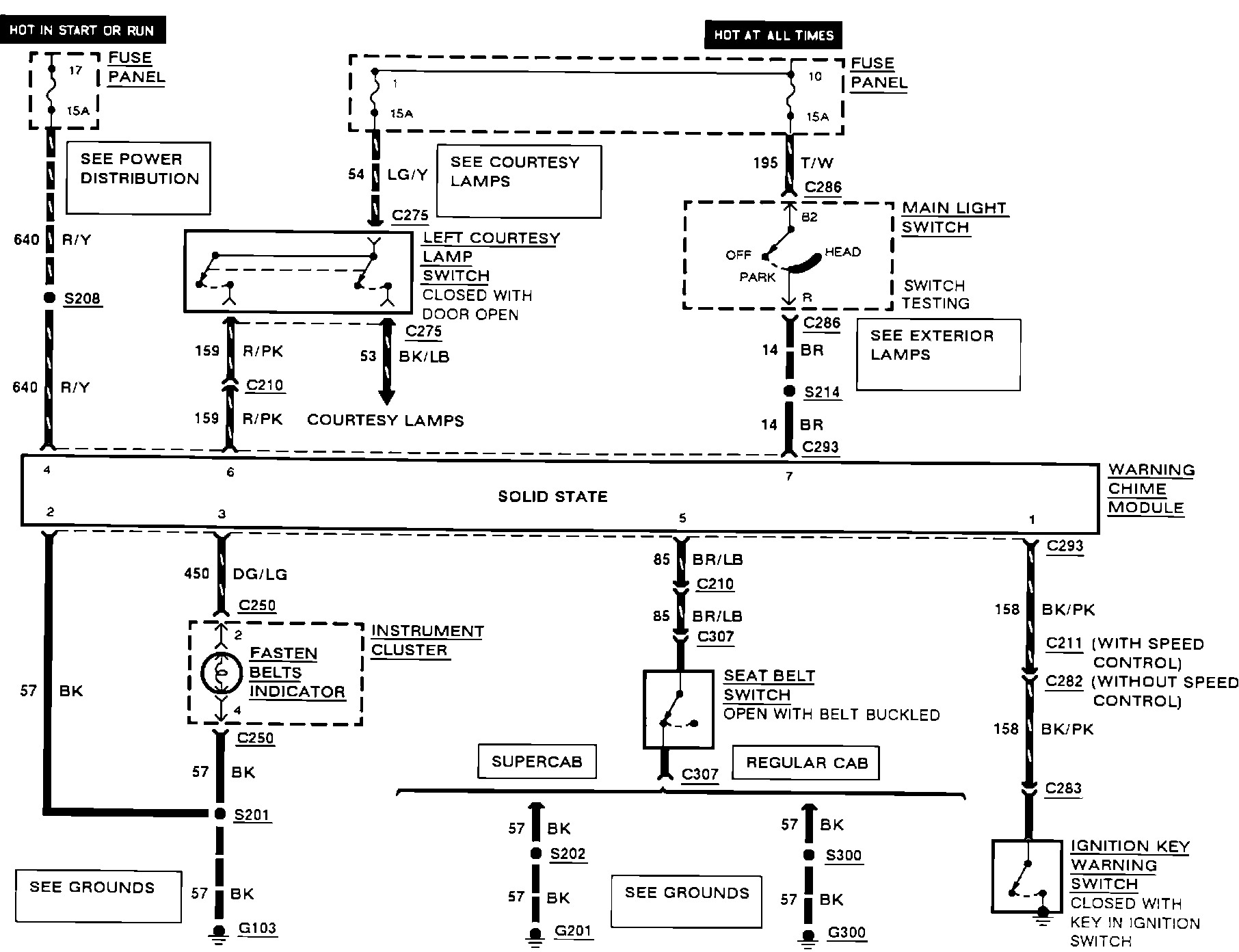

Warning Chime:
