KP - Octane Adjust
>>

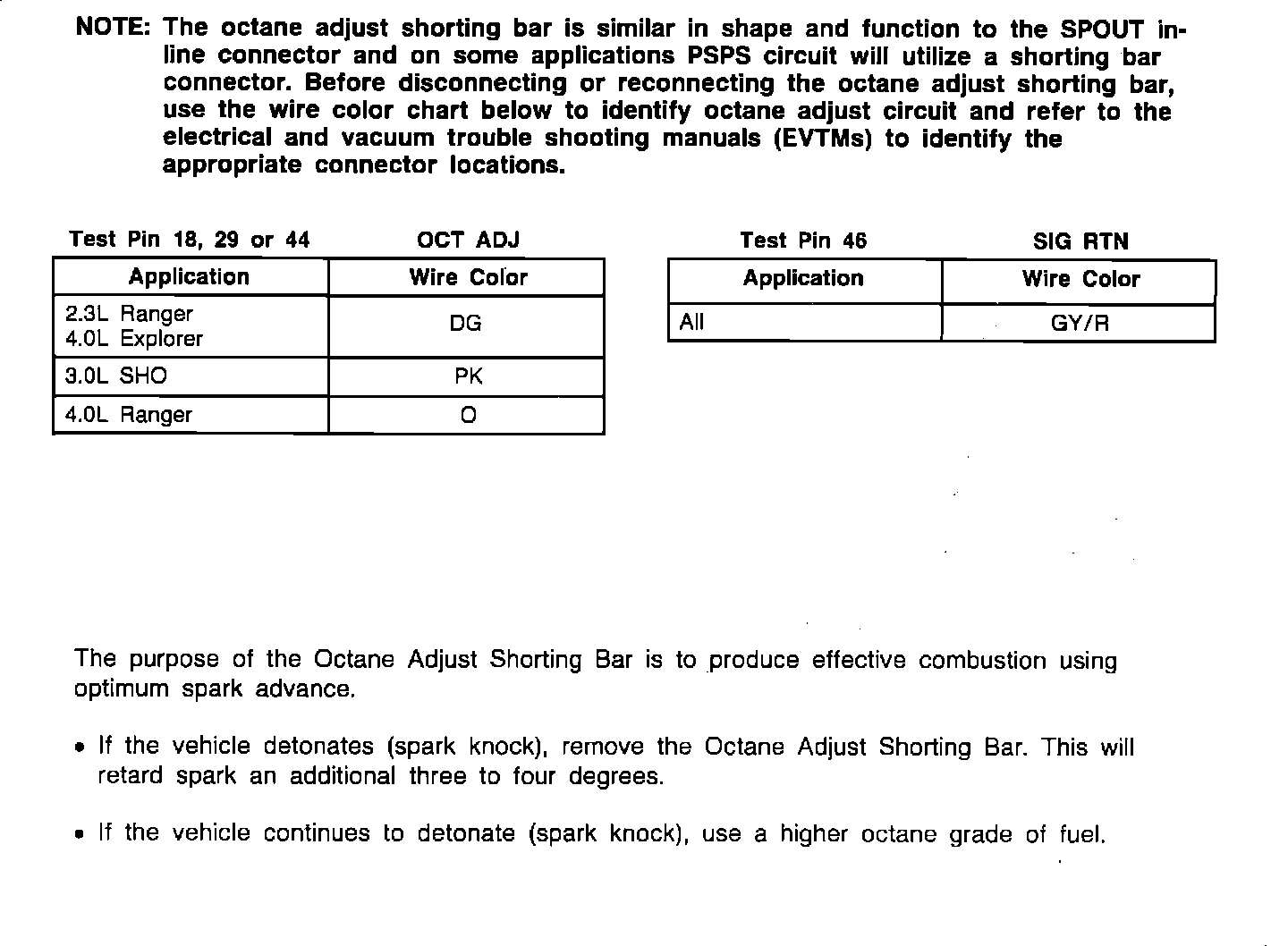

KP - Testing Notes and Schematic
KP - Testing Notes and Schematic

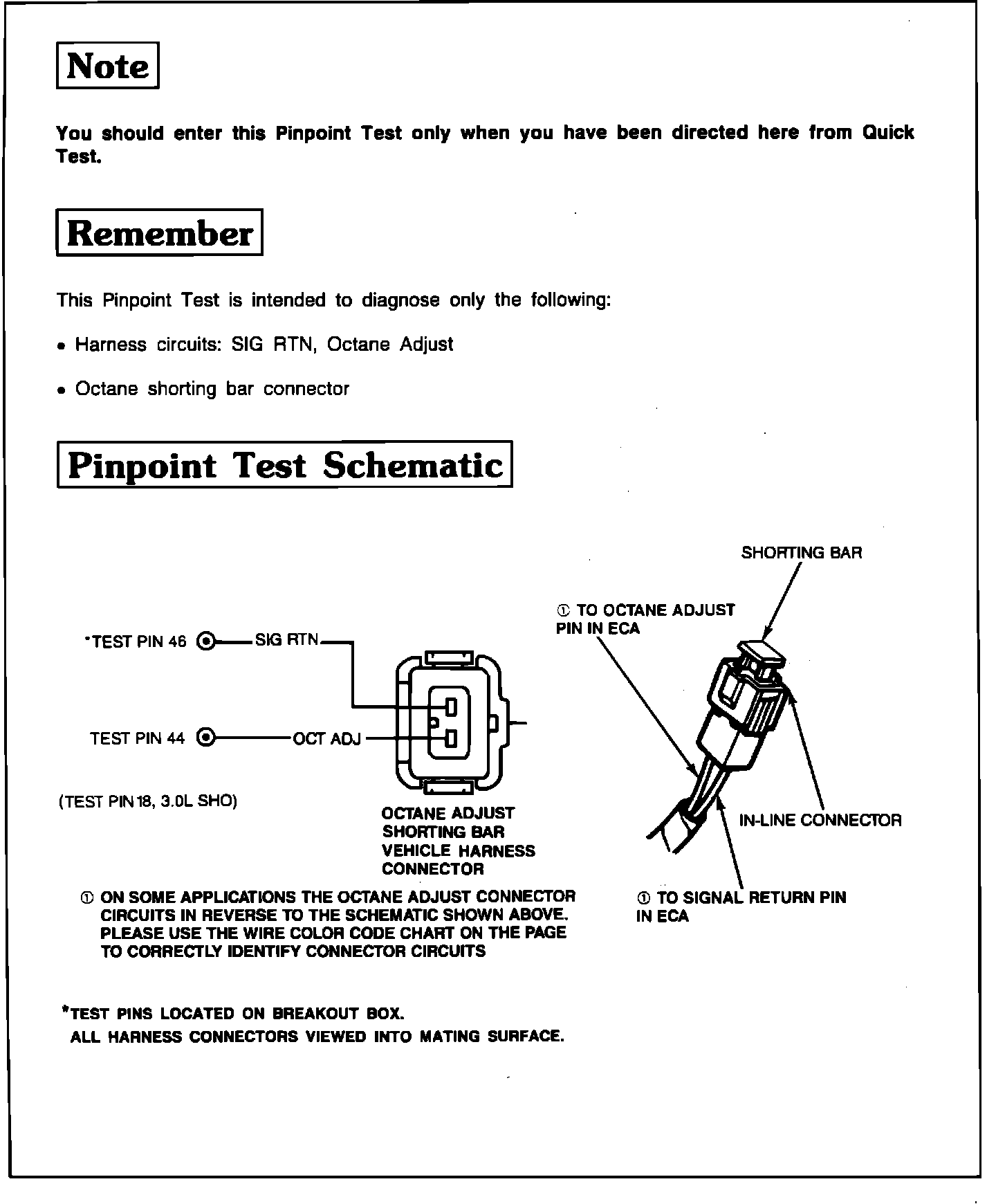

EEC-IV Pinpoint Test:
EEC-IV Pinpoint Test:
