System Deactivation Procedures
To Deactivate System: 1.
Disconnect battery ground cable and
backup power supply.
2.

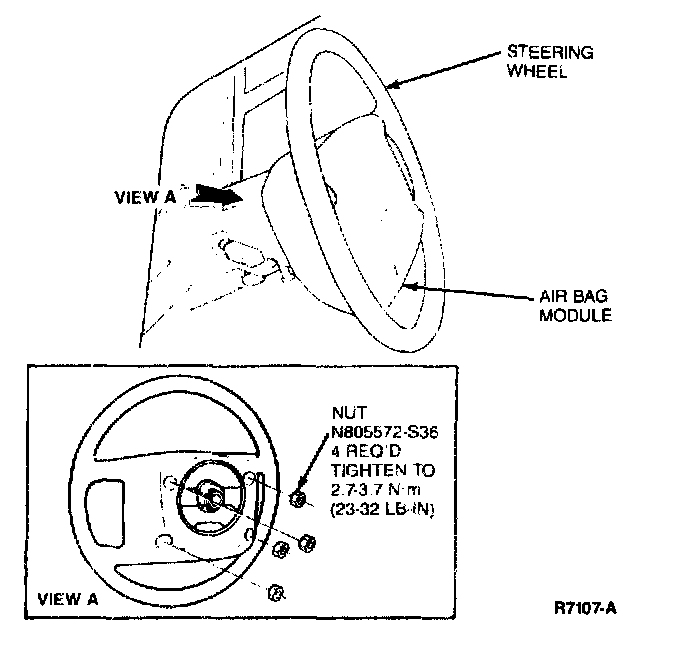

Remove four nut and washer assemblies retaining driver air bag to steering wheel.
3.
Disconnect driver air bag connector.
4.

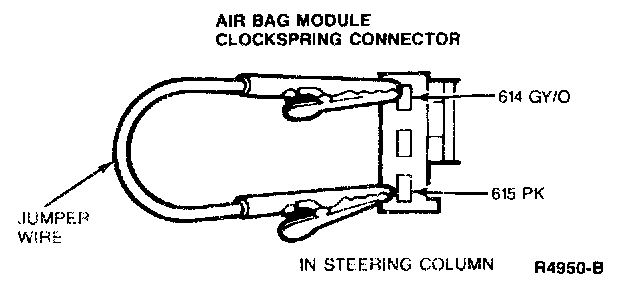

Attach jumper wire to
air bag terminals on clockspring.
5.
Connect
backup power supply and battery ground cable.
