Audio System - Manual Revision


9207ford03

Article No.
91-25B-20

12/20/91


ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1991 - AUDIO SYSTEM ILLUSTRATIONS REVISED/JBL AUDIO SOUND SYSTEM WIRING DIAGRAMS ADDED


FORD: 1991 TAURUS

LINCOLN-MERCURY: 1991 SABLE

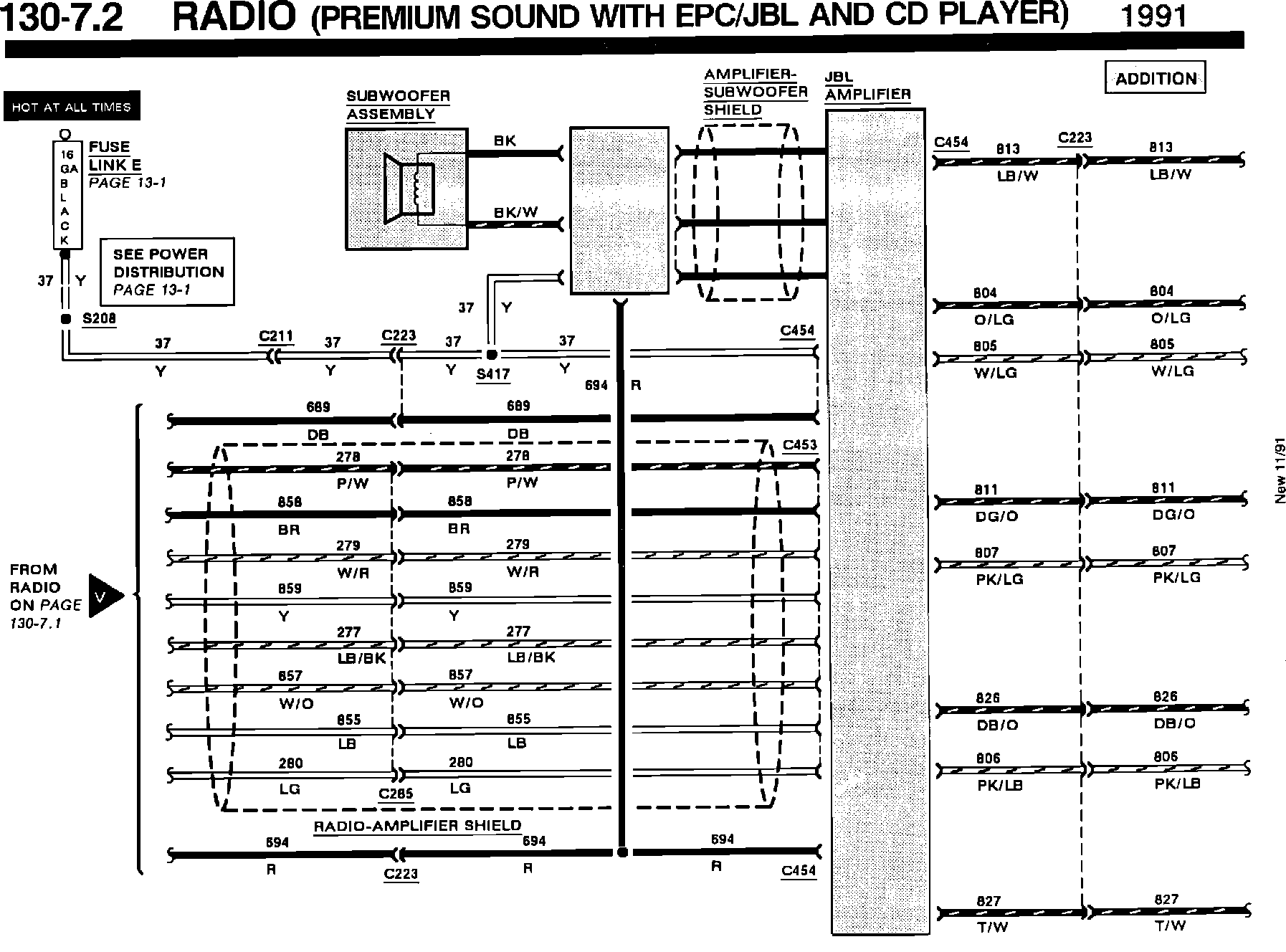

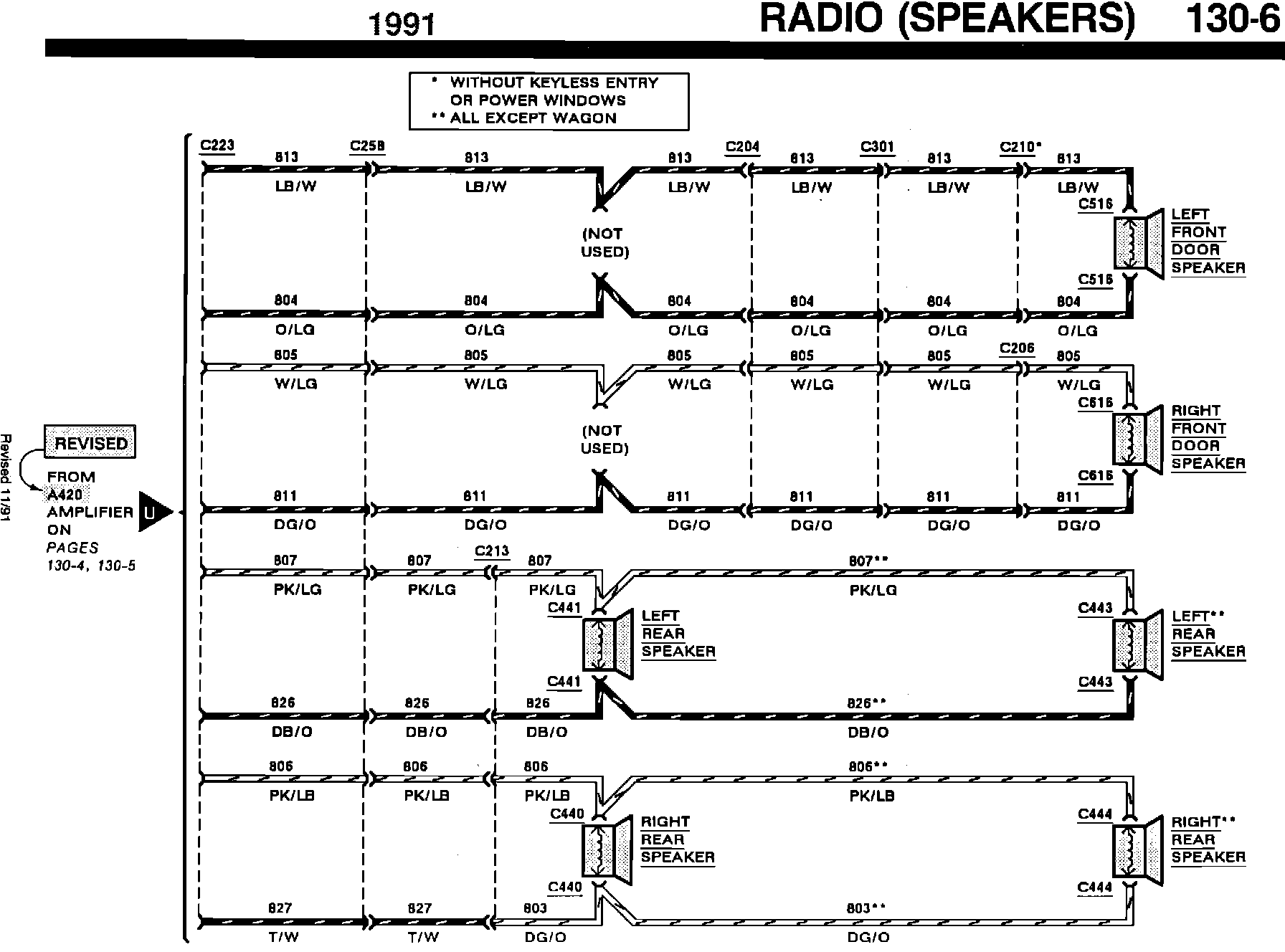

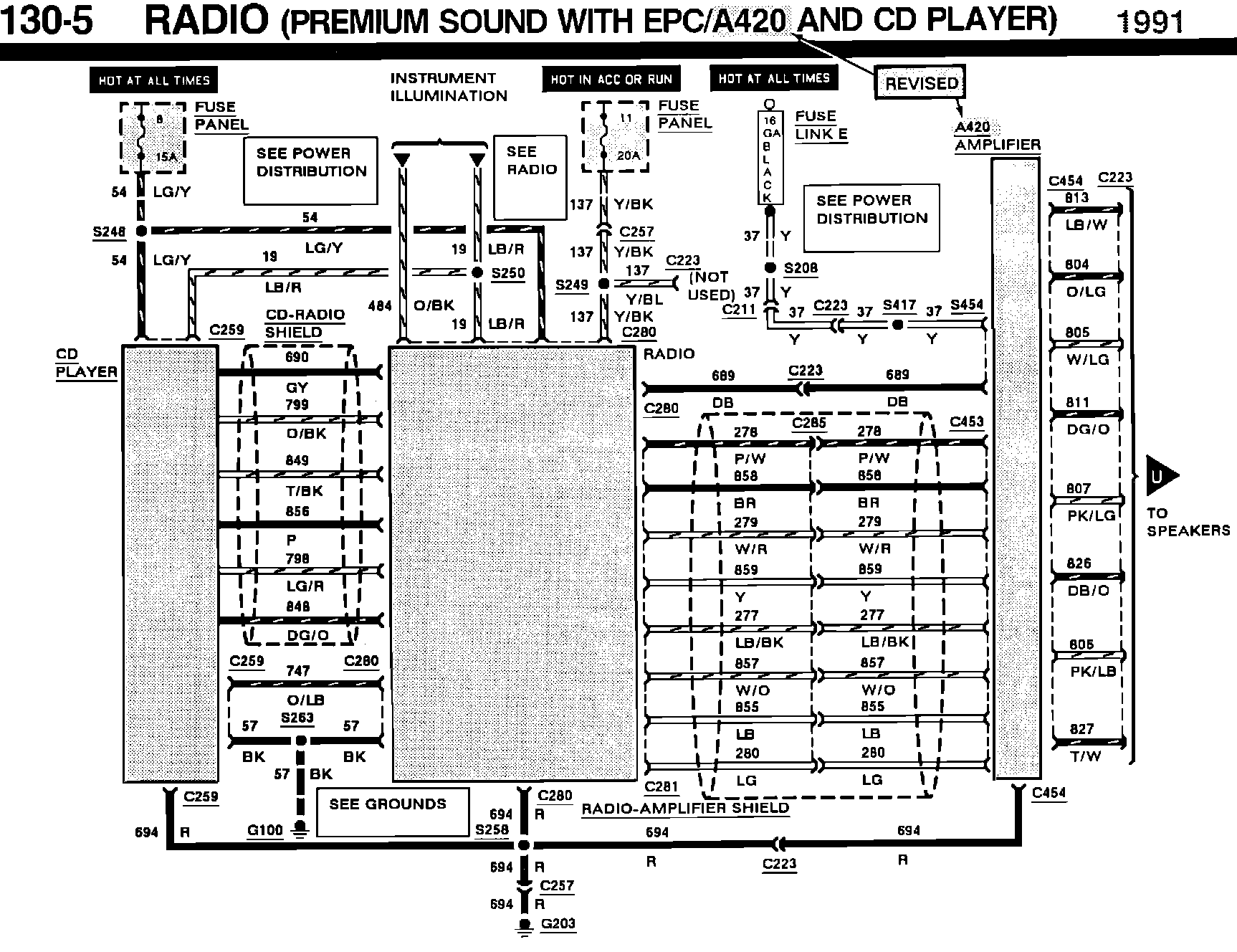

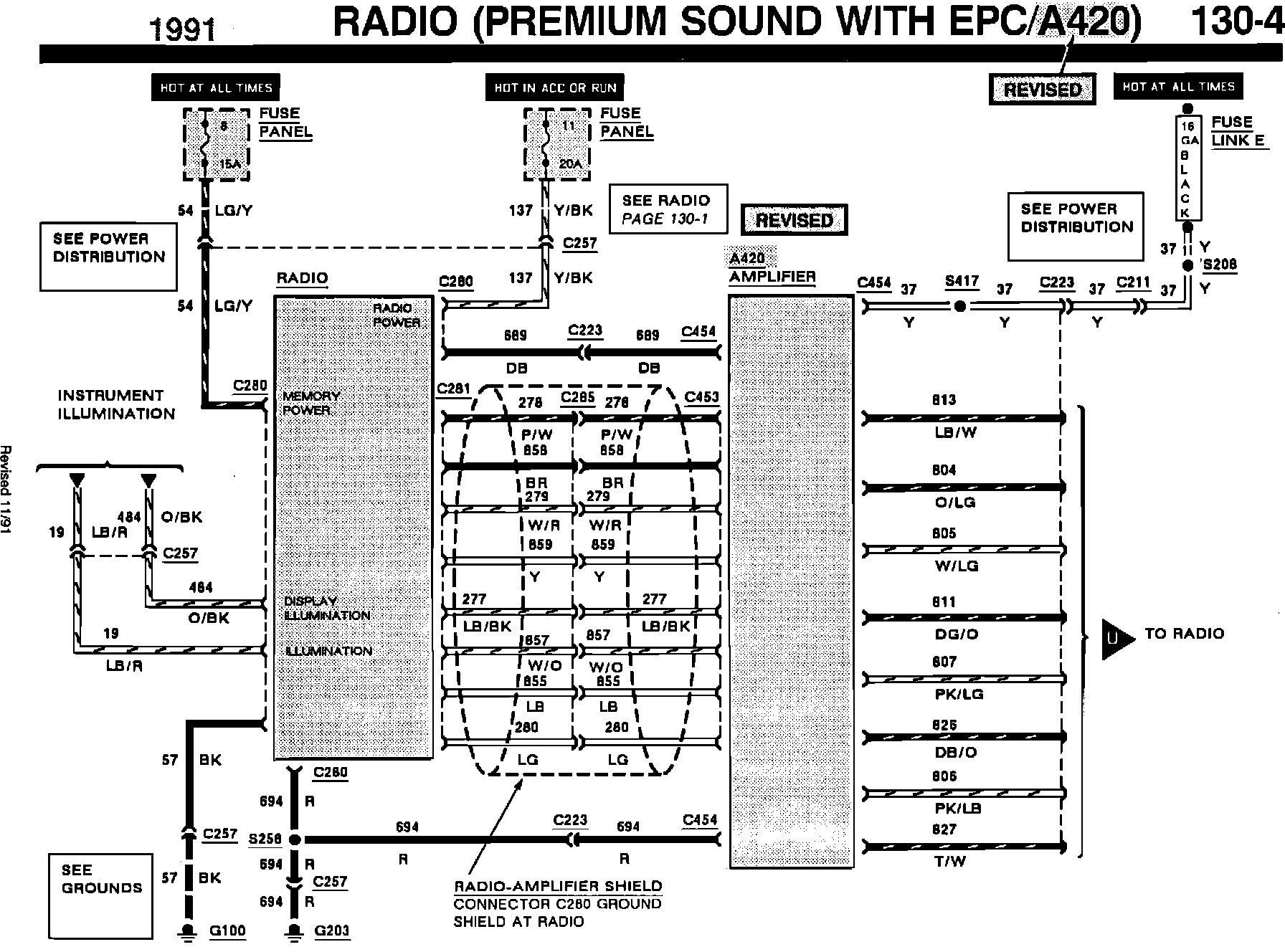

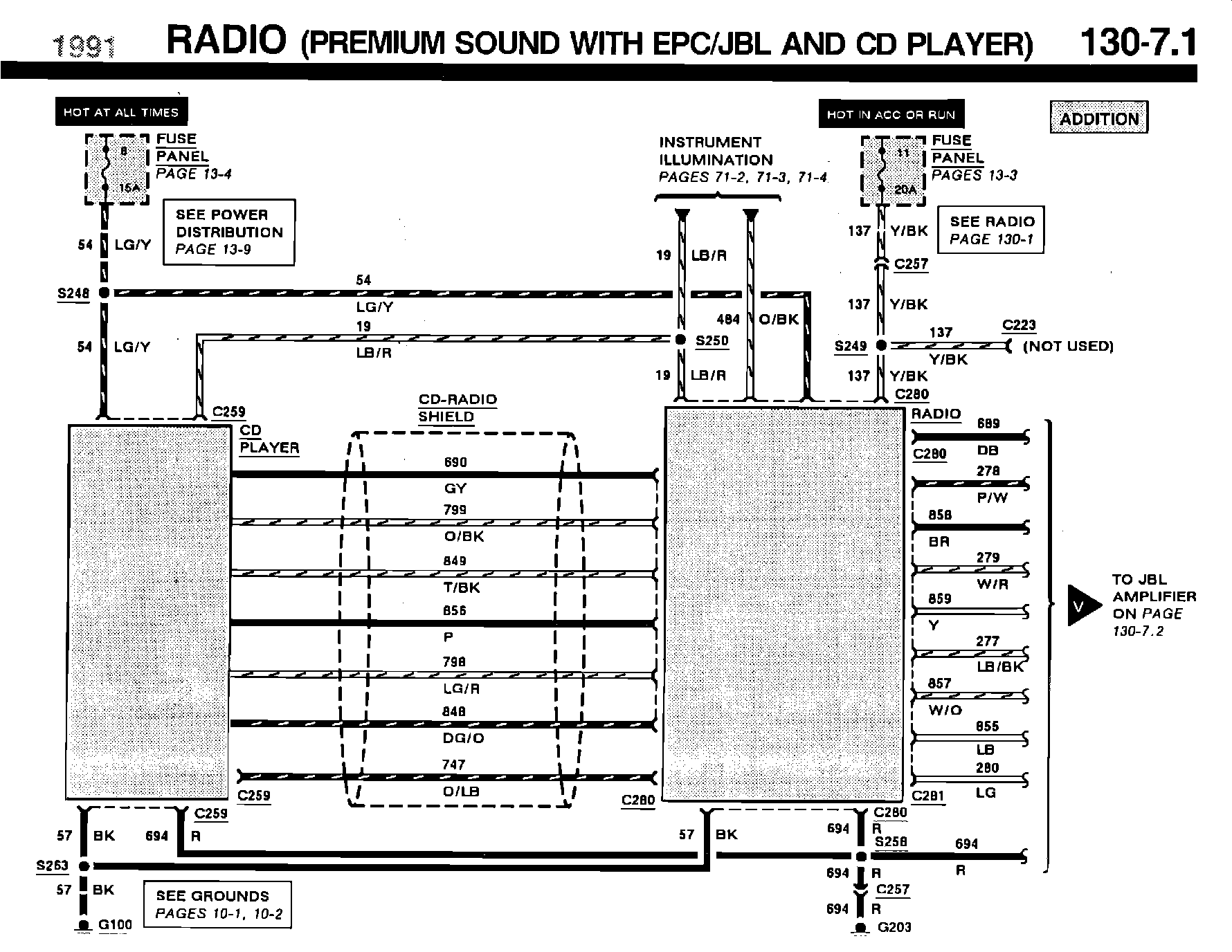

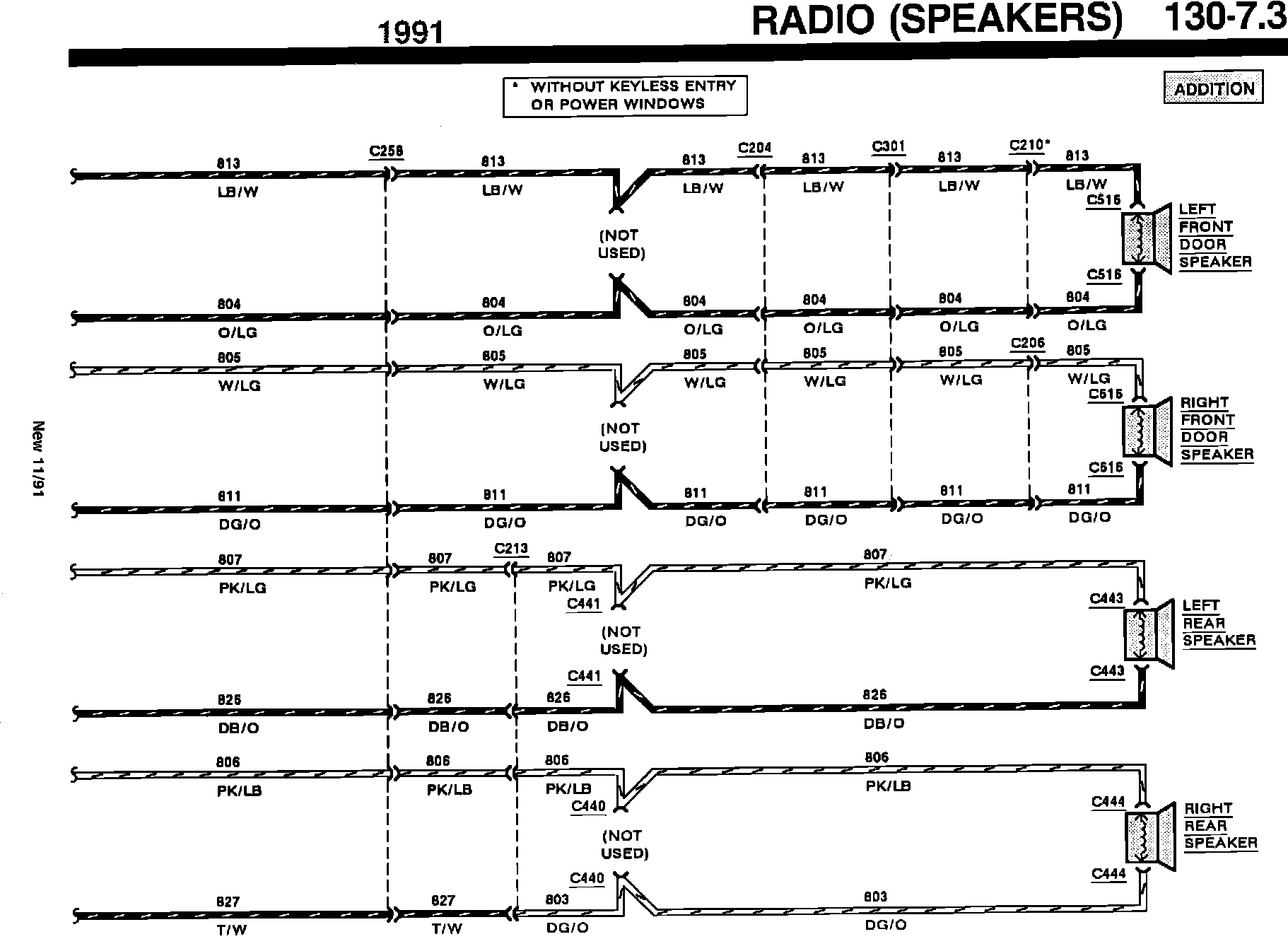

ISSUE: The Audio Systems illustrated on Pages 130-4, 5 and 6 of the 1991 Taurus/Sable EVTM are incorrect and require revision. Additionally, JBL Audio Sound System wiring diagrams did not appear in the 1991 Taurus/Sable EVTM and must be added.


ACTION: Refer to the images in this TSB article for the revised and added information.


OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000
