Home >> Ford >> 1991 >> Taurus V6-182 3.0L DOHC SHO >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> KT - Intake Air Control Valve (IAC) System >> KT - Testing Notes and Schematic

KT - Testing Notes and Schematic

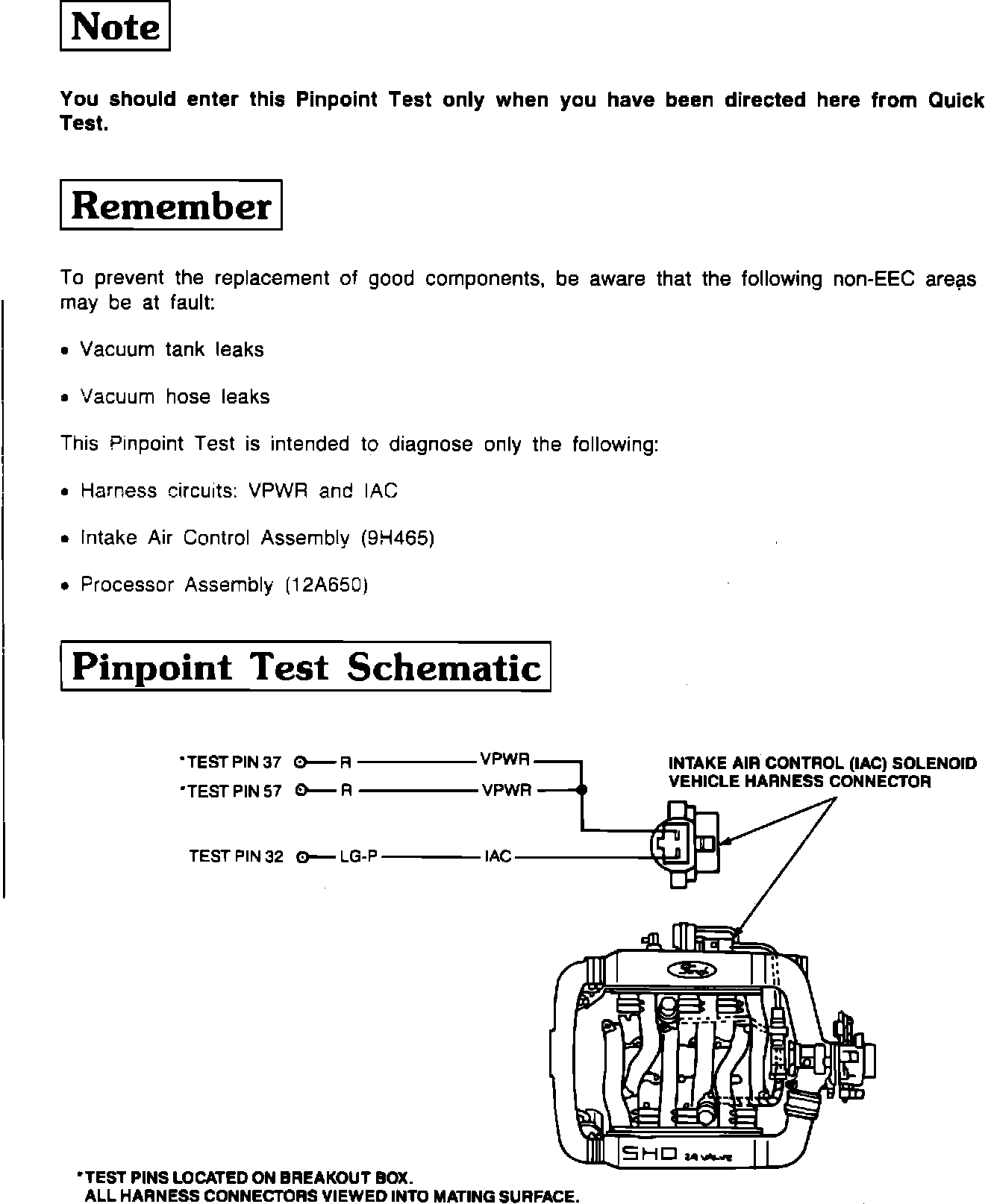

Pinpoint Test KT, Testing Notes And Schematic:
