Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>

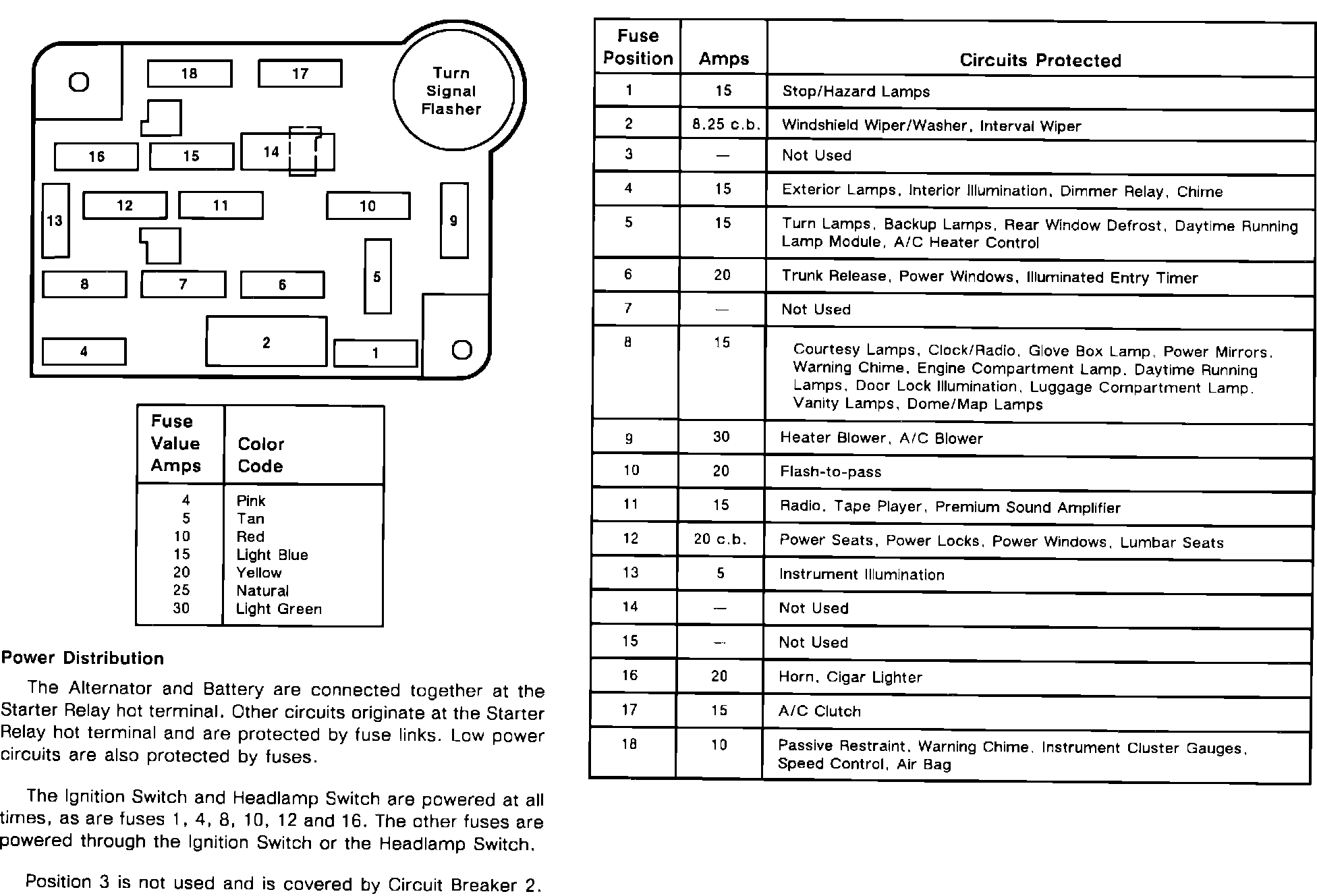

Fuse Panel
Fuse Panel
Fuse Panel / Circuit Protection:
