Instrument Panel Circuit Board Wiring
Instrument Panel Circuit Board Wiring

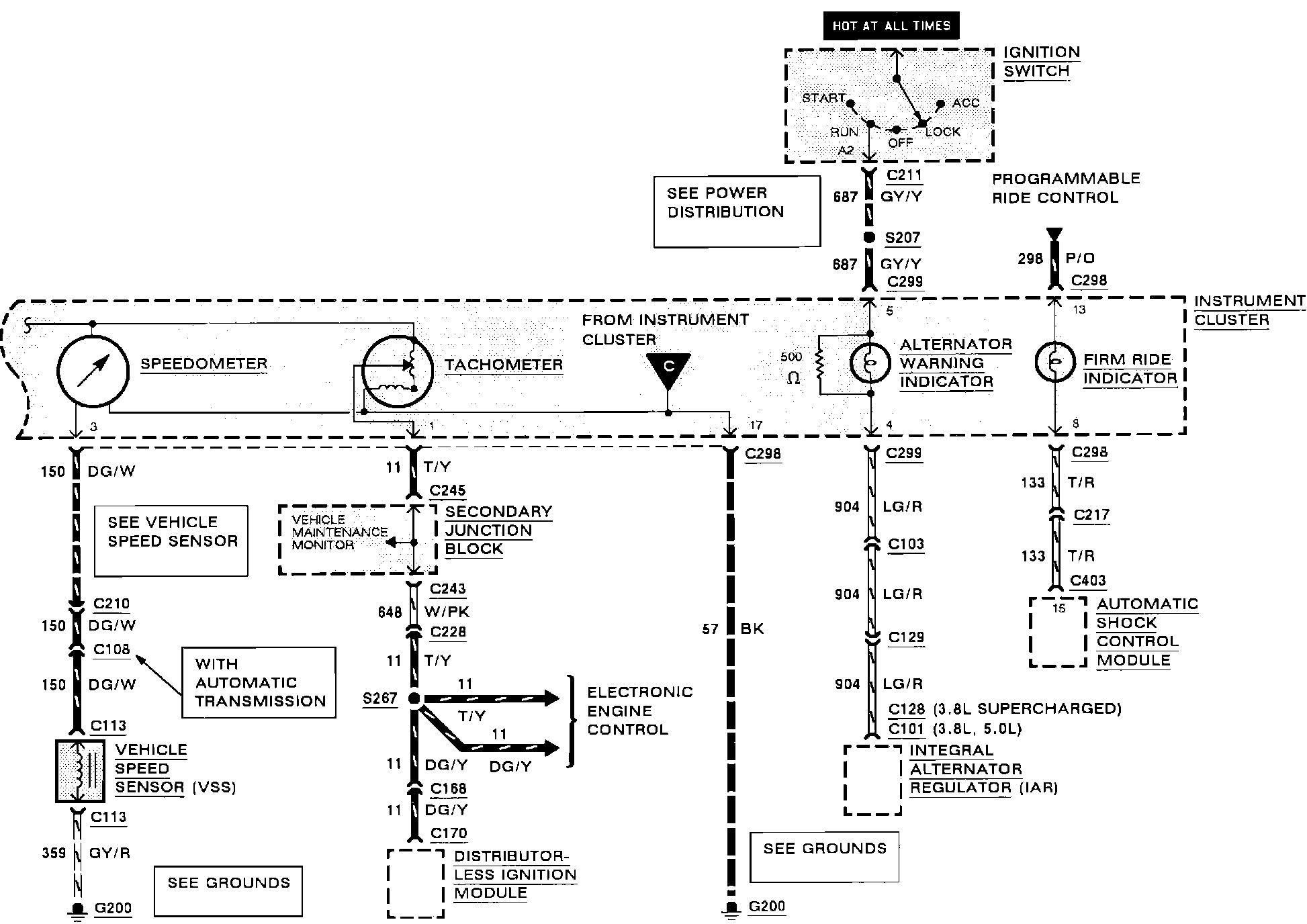

Instrument Panel (Performance):
Instrument Panel (Performance):
Instrument Panel (Performance):
Instrument Panel (Performance):
Instrument Panel (Performance):
