DL - PFE/DPFE Sensor; EVR Solenoid Testing
>>

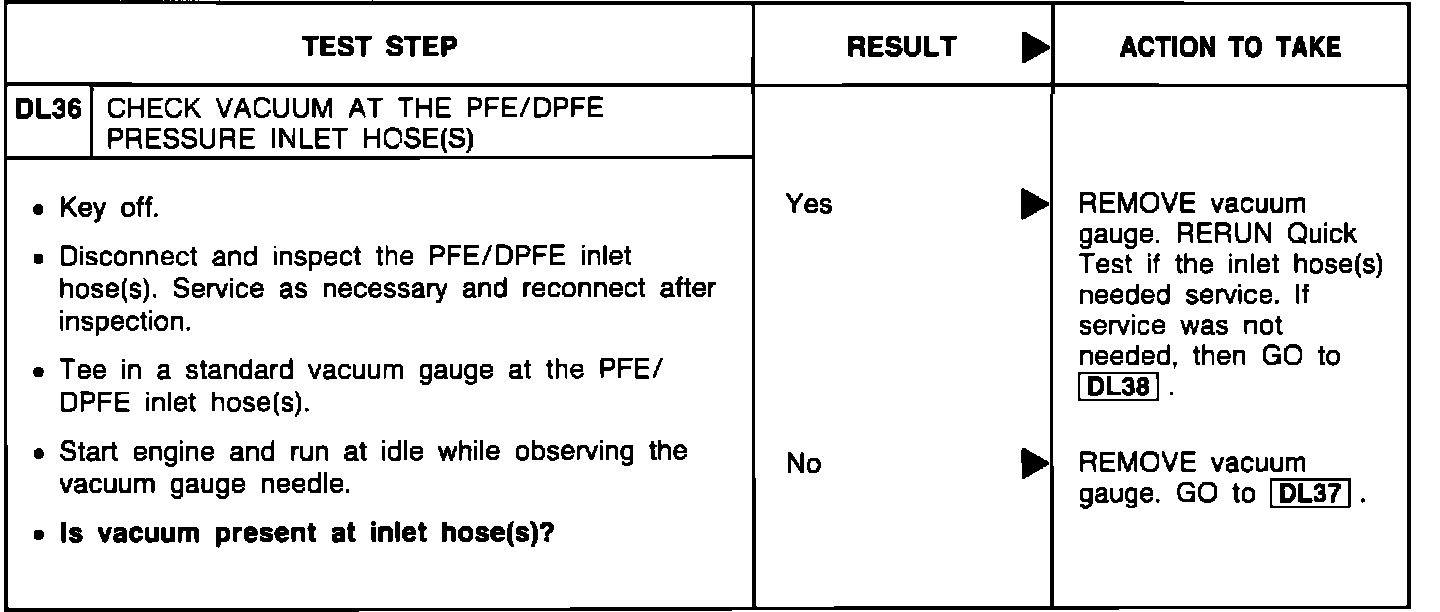

DL36 - Check Vacuum At the PFE/DPFE Pressure Inlet Hose(s)
DL36 - Check Vacuum At the PFE/DPFE Pressure Inlet Hose(s)
Pinpoint Test DL36:
