NA - TFI Ignition Diagnostic Monitor
>>
NA - Testing Schematic
>>
Remote
Remote

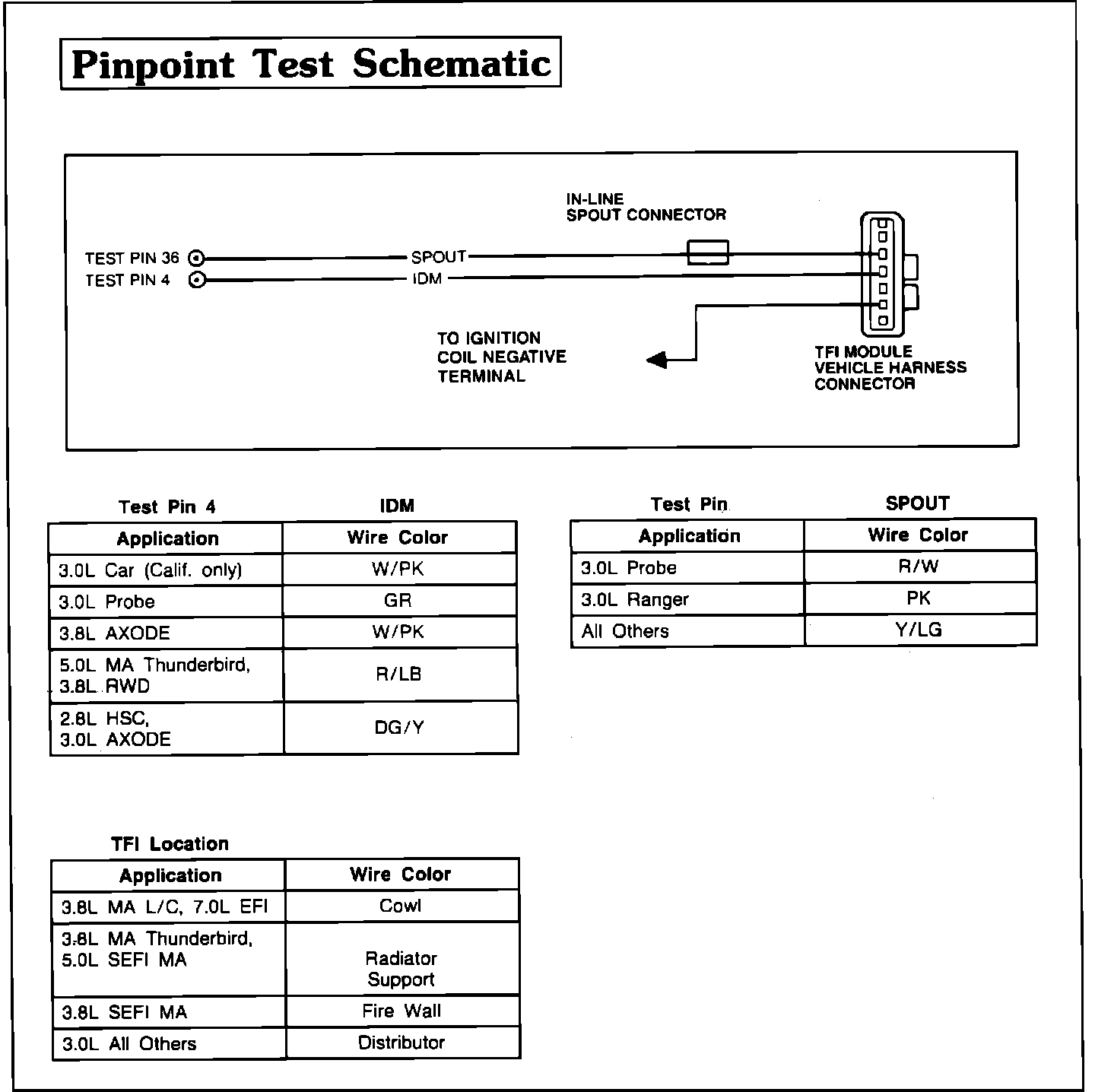

Pinpoint Test Schematic:
