NB - DIS Ignition Diagnostic Monitor
>>
NB8 - Check Ignition Module
NB8 - Check Ignition Module
*** Updated by TSB #9111B5 June 14, 1991

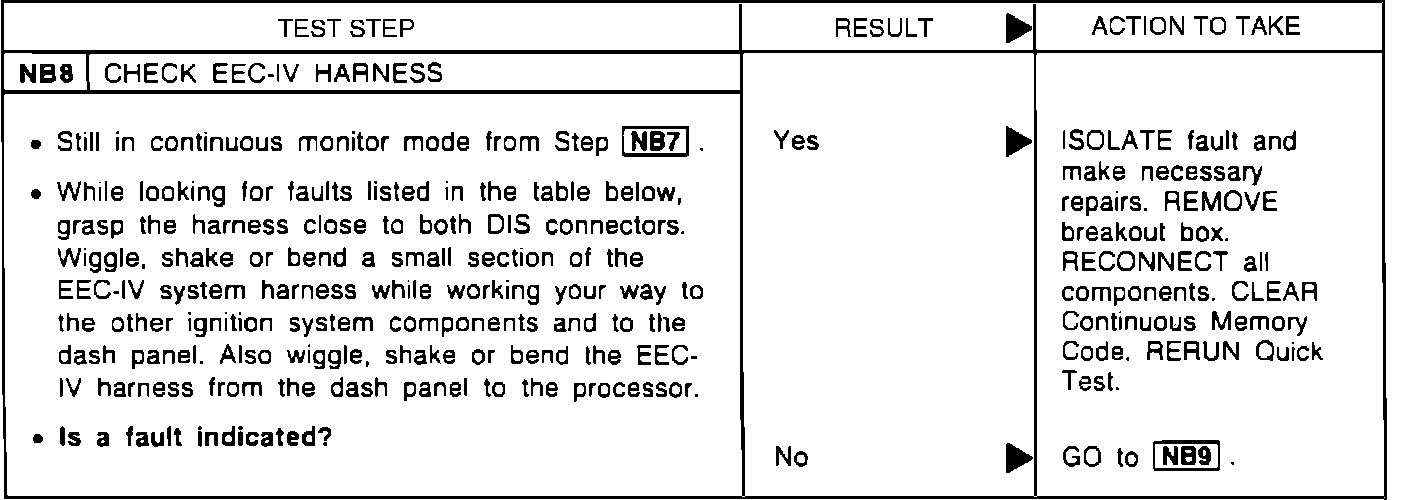

Pinpoint Test NB8:
