Exterior Lighting Relay
Exterior Lighting Relay

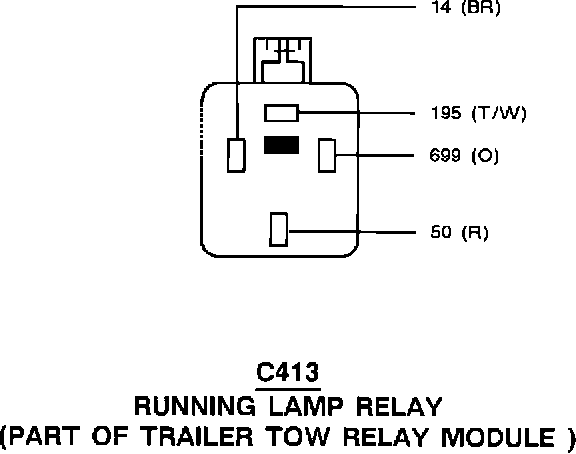

Running Lamp Relay (Part Of Trailer Tow Relay Module):
