Aerostar AWD V6-183 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
>>
Remote Headphone Module

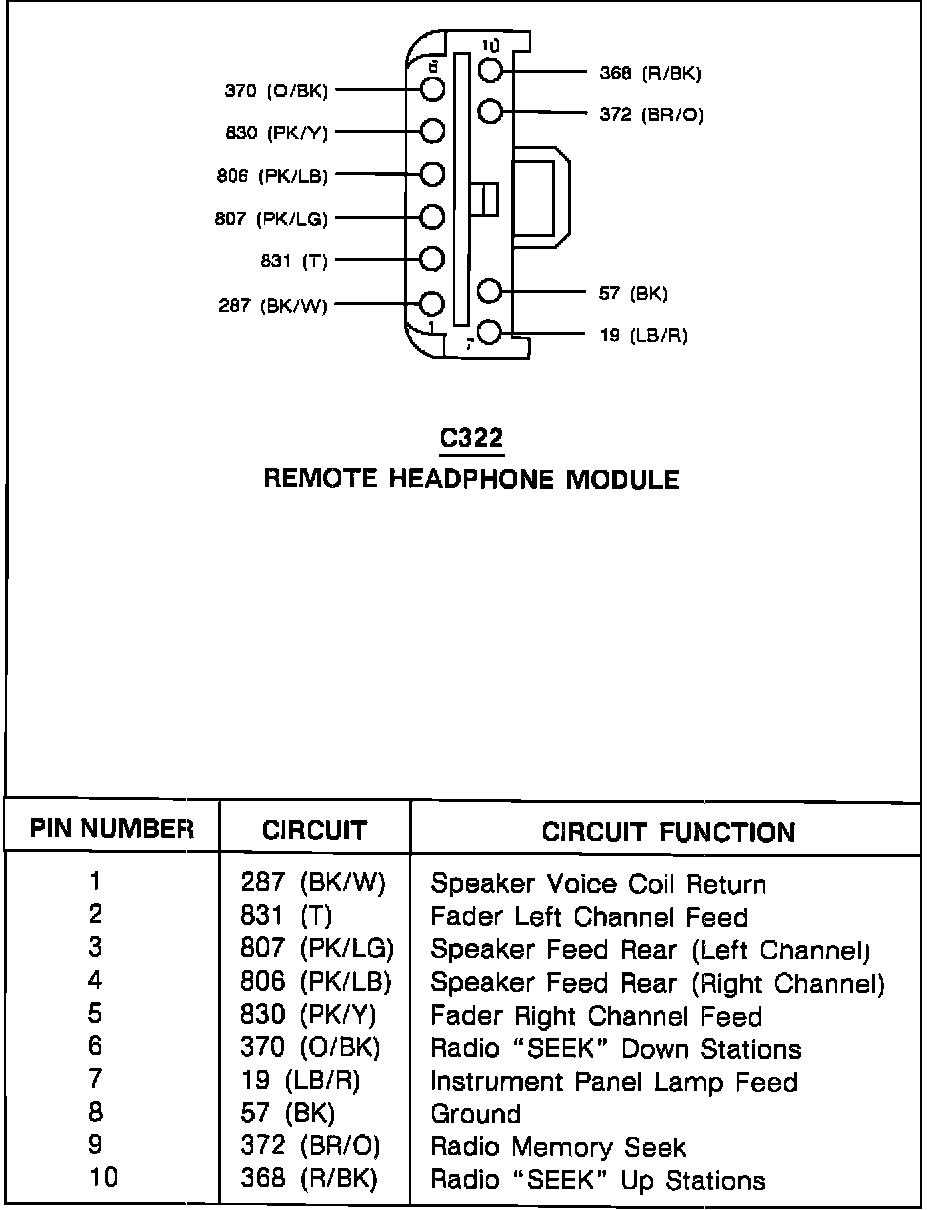

Remote Headphone Module
Remote Headphone Module:
