Aerostar AWD V6-183 3.0L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
>>
PSOM Module
PSOM Module

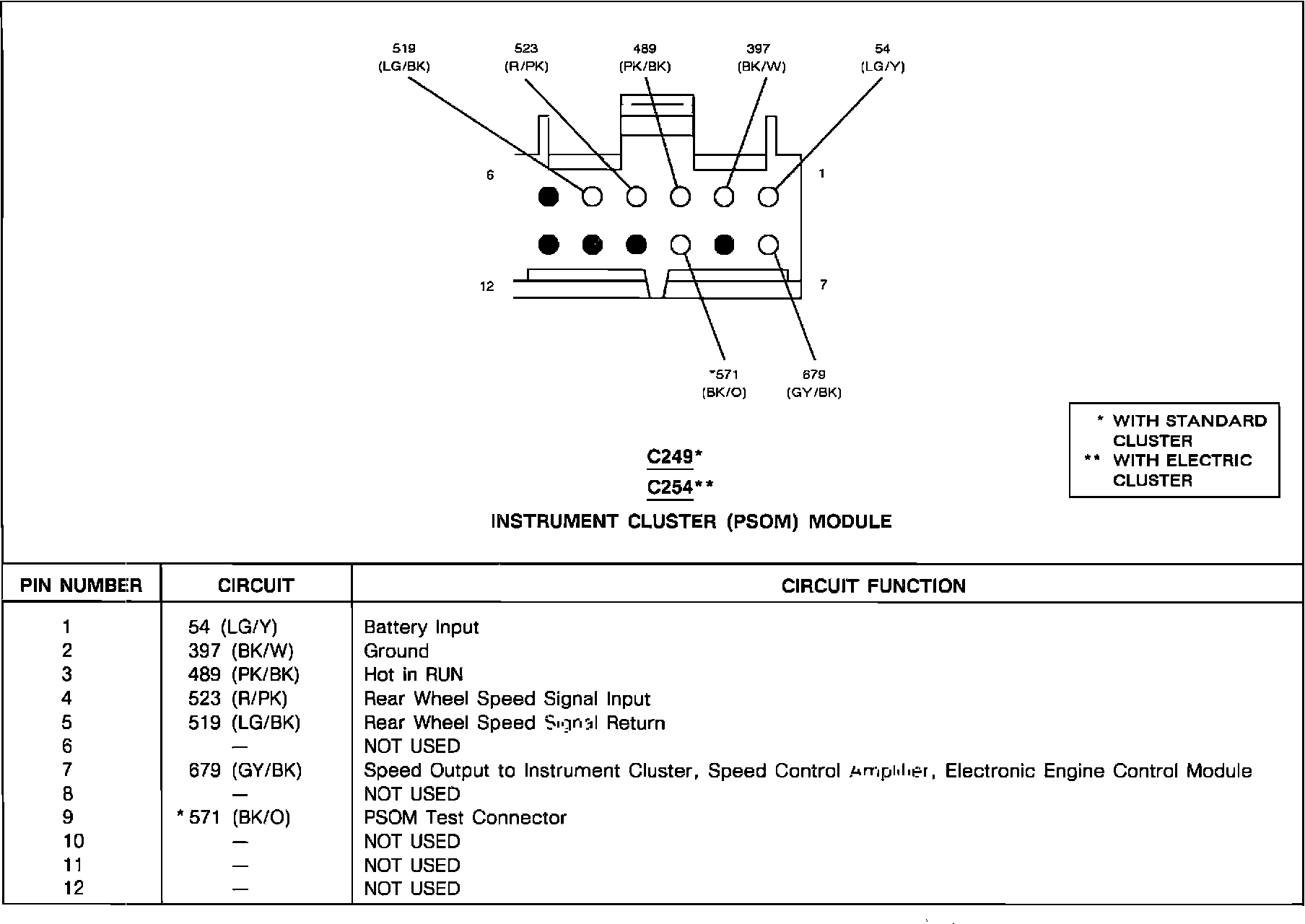

Instrument Cluster (PSOM) Module:
