Full Body Views

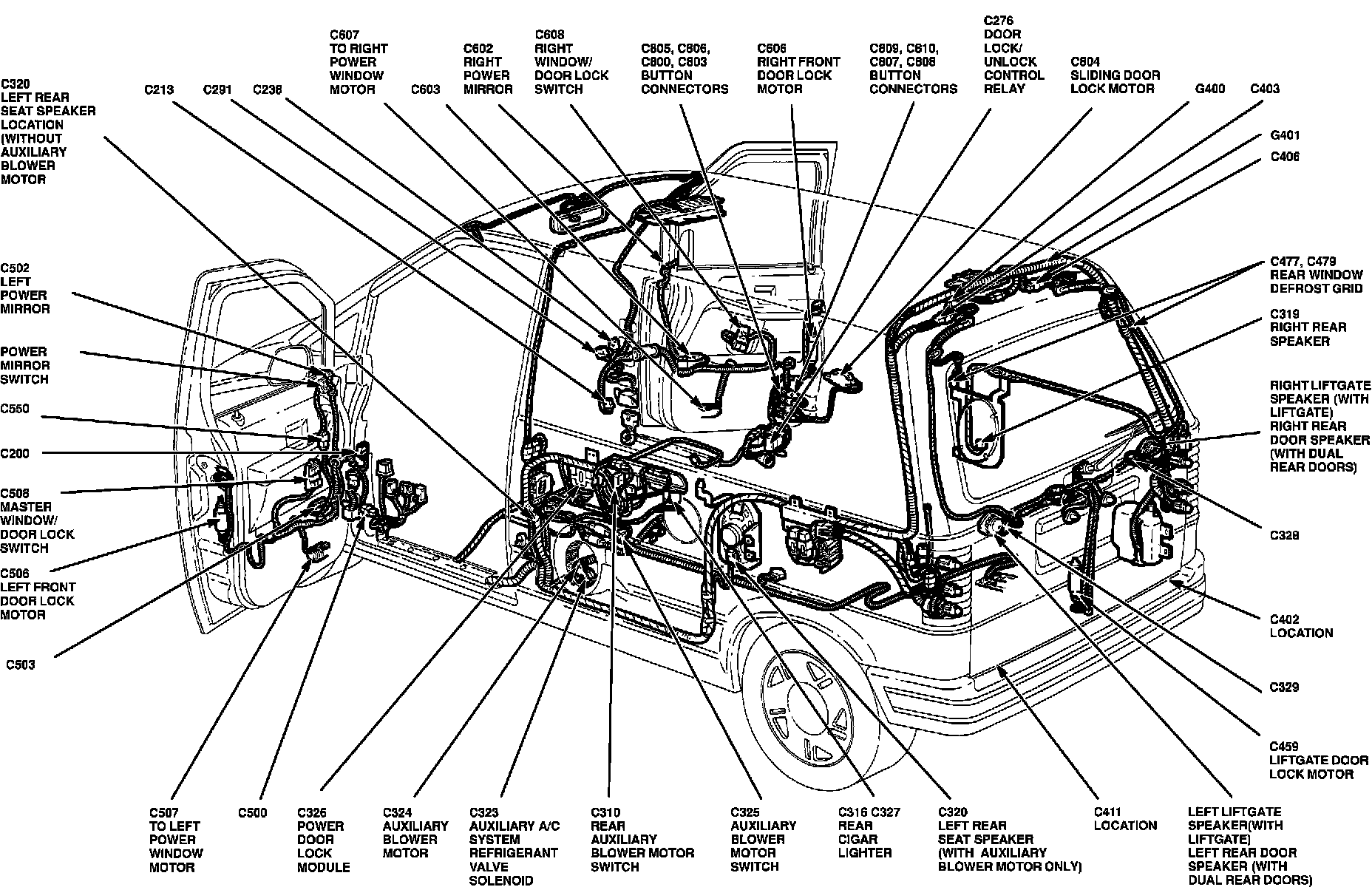

Component Location:

AUXILIARY A/C SYSTEM REFRIGERANT VALVE SOLENOID
AUXILIARY BLOWER MOTOR SWITCH
BUTTON CONNECTORS
CIGAR LIGHTER
DOOR LOCK/UNLOCK CONTROL RELAY
FRONT DOOR LOCK MOTOR
LIFTGATE DOOR LOCK MOTOR
LIFTGATE SPEAKER
MASTER WINDOW/DOOR LOCK SWITCH
POWER DOOR LOCK MODULE
POWER MIRROR
POWER MIRROR SWITCH
POWER WINDOW MOTOR
REAR DOOR SPEAKER
REAR SEAT SPEAKER
REAR WINDOW DEFROST GRID
SLIDING DOOR LOCK MOTOR
WINDOW/DOOR LOCK SWITCH

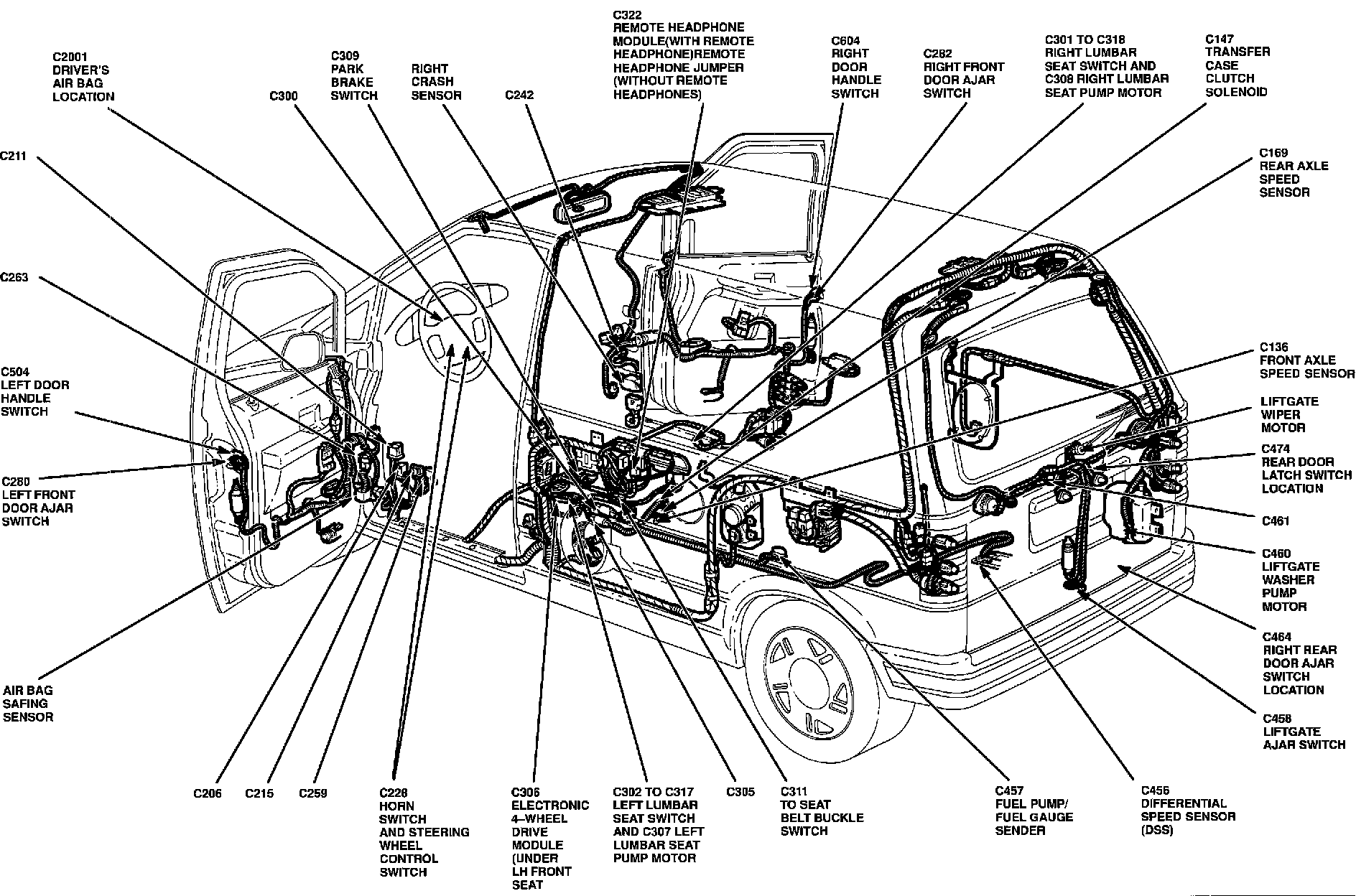

Component Location:

AIR BAG SAFING SENSOR
AXLE SPEED SENSOR
CRASH SENSOR
DIFFERENTIAL SPEED SENSOR (DSS)
DOOR AJAR SWITCH LOCATION
DOOR HANDLE SWITCH
DOOR LATCH SWITCH LOCATION
DRIVER'S AIR BAG LOCATION
ELECTRONIC 4-WHEEL DRIVE MODULE
FRONT DOOR AJAR SWITCH
FUEL PUMP/FUEL GAUGE SENDER
HORN SWITCH
LIFTGATE AJAR SWITCH
LIFTGATE WASHER PUMP MOTOR
LIFTGATE WIPER MOTOR
LUMBAR SEAT PUMP MOTOR
LUMBAR SEAT SWITCH
PARK BRAKE SWITCH
REMOTE HEADPHONE JUMPER
REMOTE HEADPHONE MODULE
SEAT BELT BUCKLE SWITCH
STEERING WHEEL CONTROL SWITCH
TRANSFER CASE CLUTCH SOLENOID

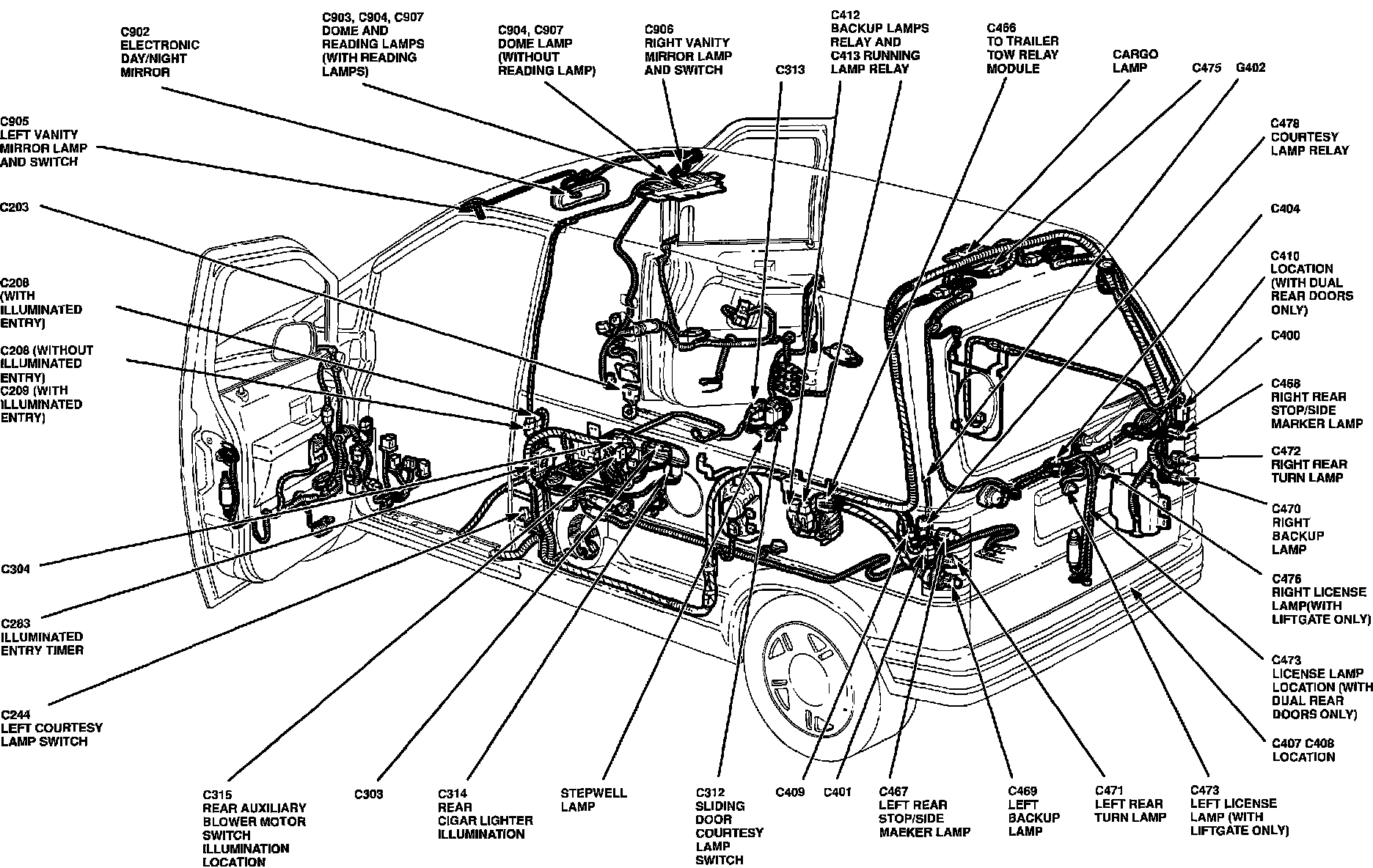

Component Location:

AUXILIARY BLOWER MOTOR SWITCH ILLUMINATION
BACKUP LAMP
BACKUP LAMPS RELAY
CARGO LAMP
CIGAR LIGHTER ILLUMINATION
COURTESY LAMP RELAY
DOME AND READING LAMPS
DOME LAMP
ELECTRONIC DAY/NIGHT MIRROR
ILLUMINATED ENTRY TIMER
LICENSE LAMP
LICENSE LAMP LOCATION
RUNNING LAMP RELAY
SLIDING DOOR COURTESY LAMP SWITCH
STEPWELL LAMP
STOP/SIDE MARKER LAMP
TRAILER TOW RELAY MODULE
TURN LAMP
VANITY MIRROR LAMP AND SWITCH
