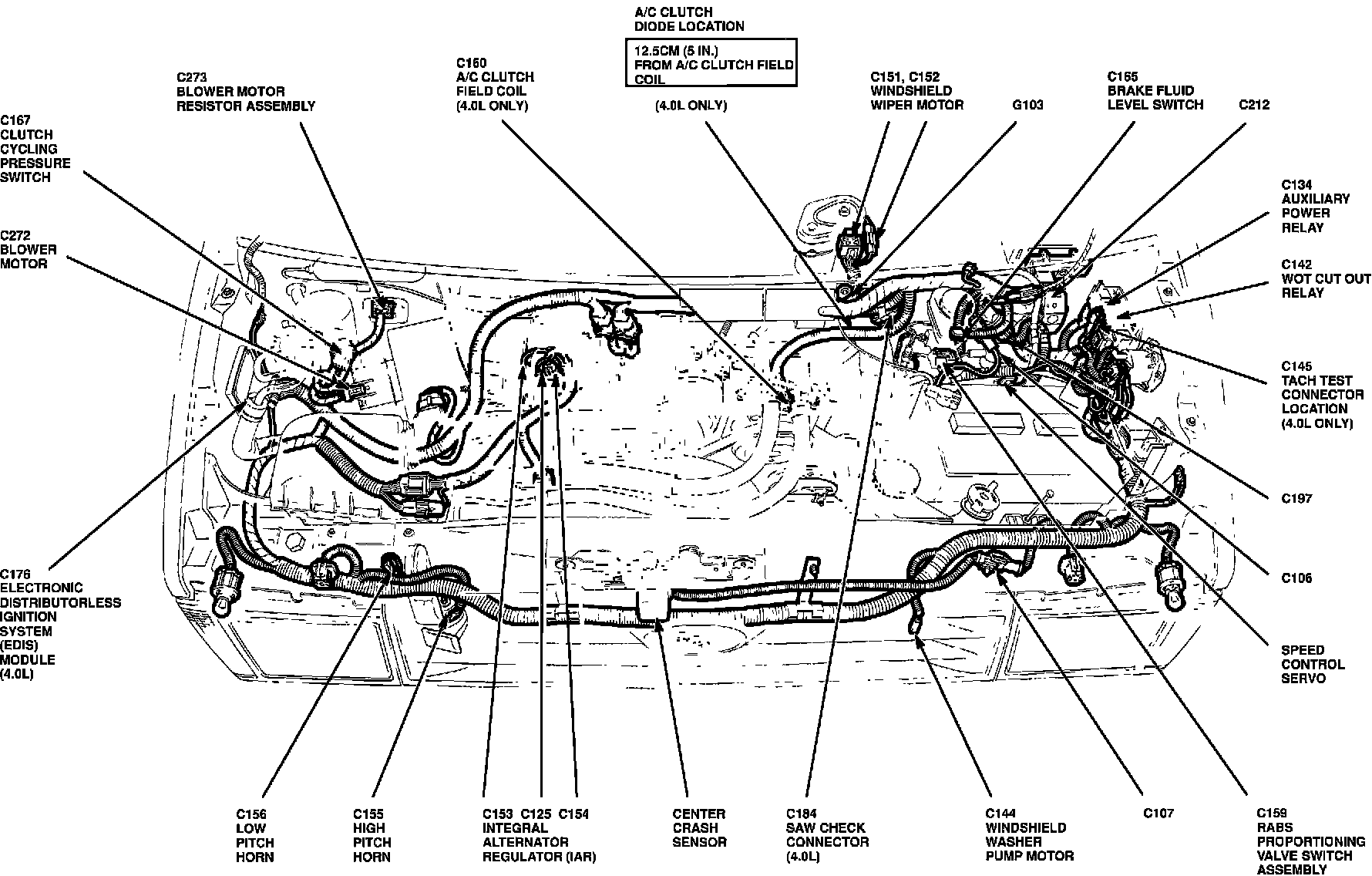

Connector Locations

AC CLUTCH DIODE LOCATION
A/C CLUTCH FIELD COIL
AUXILIARY POWER RELAY
BLOWER MOTOR
BLOWER MOTOR RESISTOR ASSEMBLY
BRAKE FLUID LEVEL SWITCH
CENTER CRASH SENSOR
CLUTCH CYCLING SWITCH
ELECTRONIC DISTRIBUTORLESS IGNITION SYSTEM (EDIS) MODULE
HIGH PITCH HORN
INTEGRAL ALTERNATOR REGULATOR (IAR)
LOW PITCH HORN
RABS PROPORTIONAL VALVE SWITCH ASSEMBLY
SAW CHECK CONNECTOR
SPEED CONTROL SERVO
TACH TEST CONNECTOR LOCATION
WINDSHIELD WASHER PUMP MOTOR
WINDSHIELD WIPER MOTOR

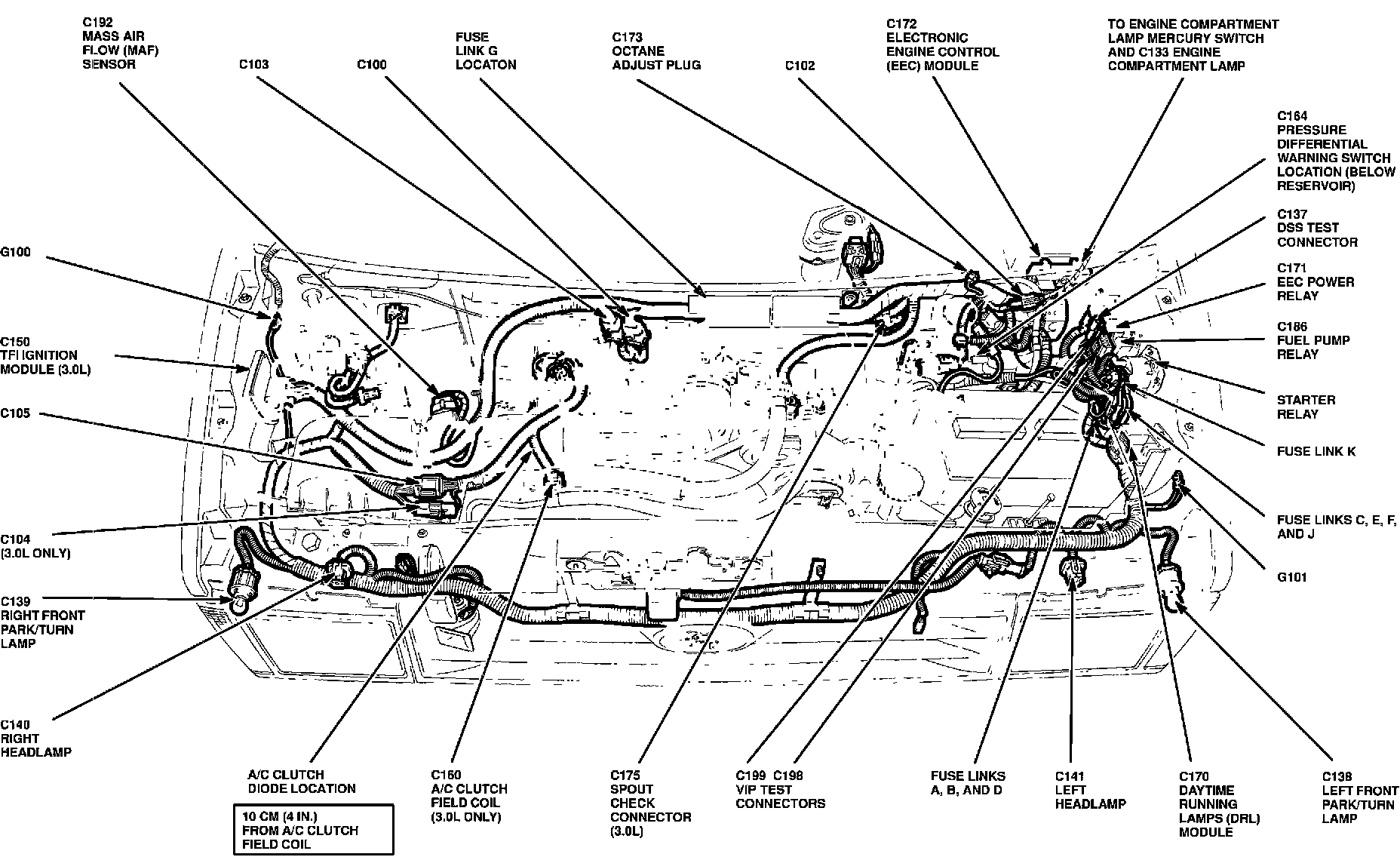

A/C CLUTCH DIODE LOCATION
A/C CLUTCH FIELD COIL
DAYTIME RUNNING LAMPS (DRL) MODULE
DSS TEST CONNECTOR
EEC POWER RELAY
ELECTRONIC ENGINE CONTROL (EEC) MODULE
FRONT PARK/TURN LAMP
FUEL PUMP RELAY
FUSE LINKS A, B, AND D
FUSE LINK G
FUSE LINK G, E, F, AND J
FUSE LINK K
LEFT HEADLAMP
MASS AIR FLOW (MAF) SENSOR
OCTANE ADJUST PLUG
PRESSURE DIFFERENTIAL WARNING SWITCH
RIGHT HEADLAMP
SPOUT CHECK CONNECTOR
STARTER RELAY
TFI IGNITION MODULE
VIP TEST CONNECTORS

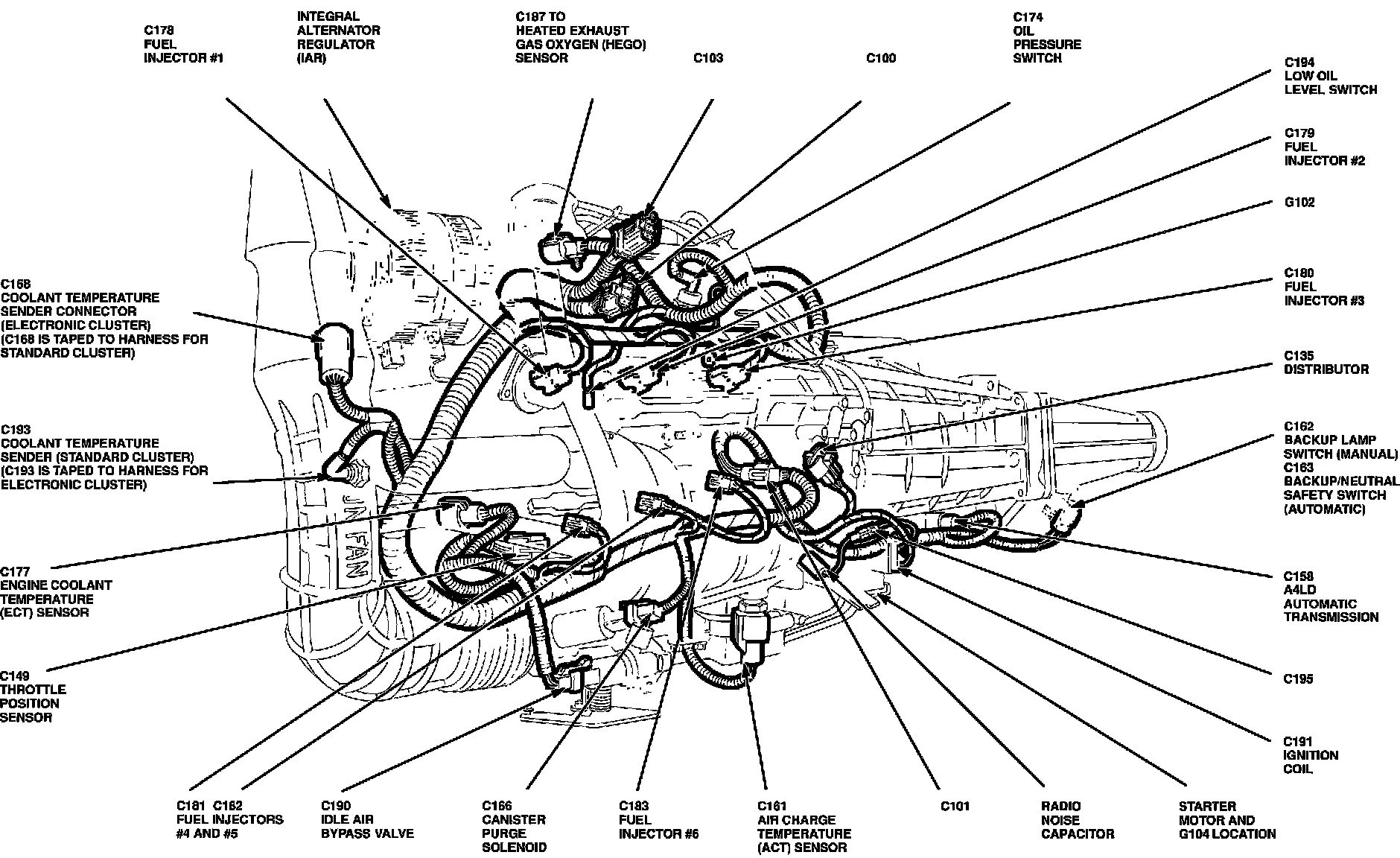

Component Location:

A4LD AUTOMATIC TRANSMISSION
AIR CHARGE TEMPERATURE (ACT) SENSOR
BACKUP LAMP SWITCH
BACKUP/NEUTRAL SAFETY SWITCH
CANISTER PURGE SOLENOID
DISTRIBUTOR
ENGINE COOLANT TEMPERATURE SENDER
FUEL INJECTORS
HEATED EXHAUST GAS OXYGEN (HEGO) SENSOR
IDLE AIR BYPASS VALVE
IGNITION COIL
INTEGRAL ALTERNATOR REGULATOR (IAR)
LOW OIL LEVEL SWITCH
OIL PRESSURE SWITCH
RADIO NOISE CAPACITOR
STARTER MOTOR AND LOCATION
THROTTLE POSITION SENSOR
