Power Window Switch



COMPONENT TESTING PROCEDURE

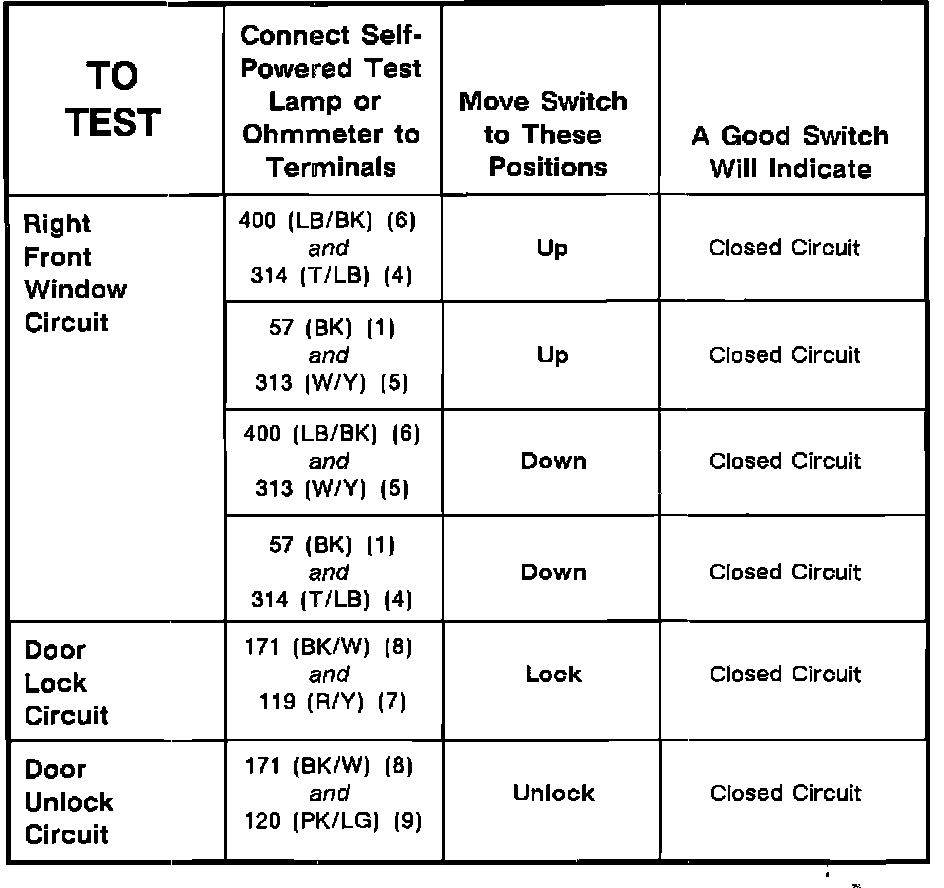

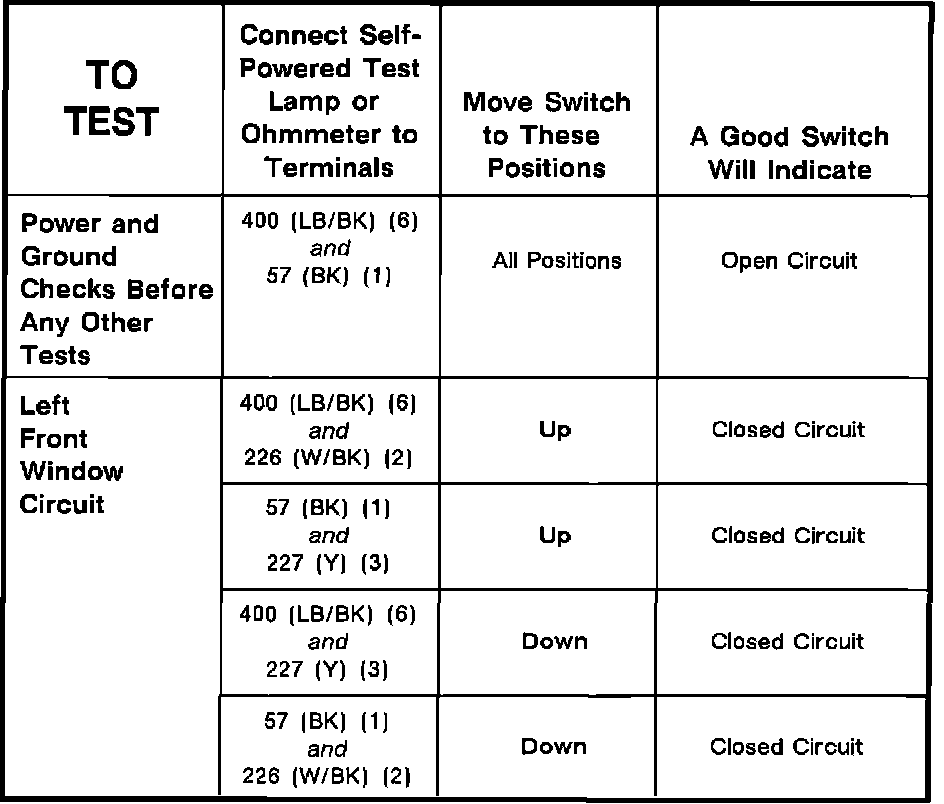

Component Testing Procedure:




Component Testing Procedure:

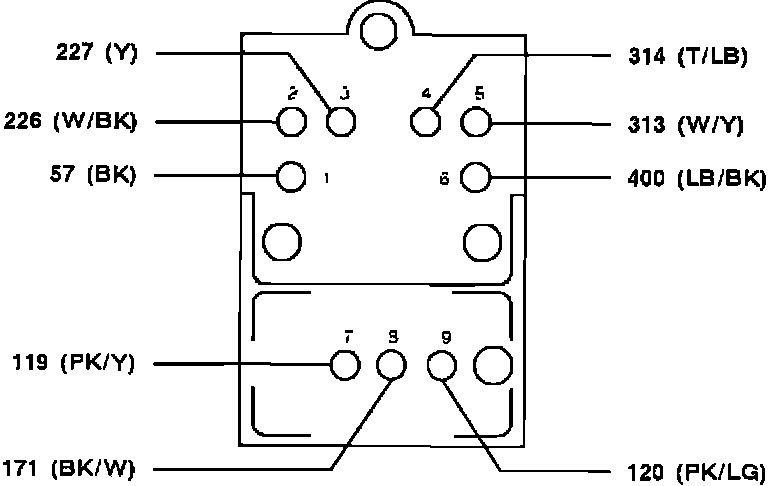

TERMINAL IDENTIFICATION


Terminal Locations:

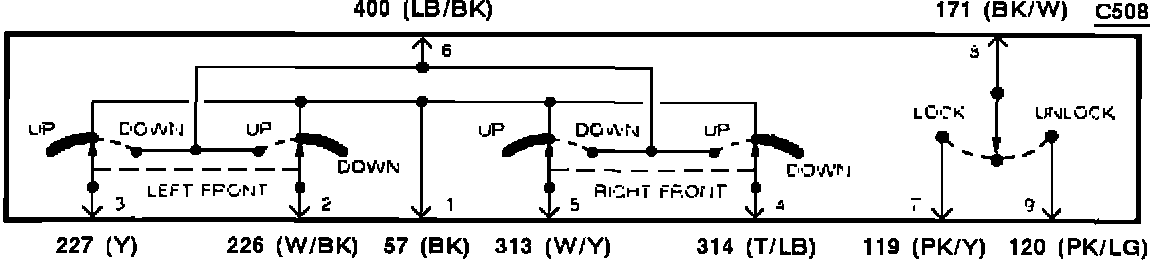

SCHEMATIC


Schematic:
