Control Assembly: Testing and Inspection

COMPONENT TESTING PROCEDURE

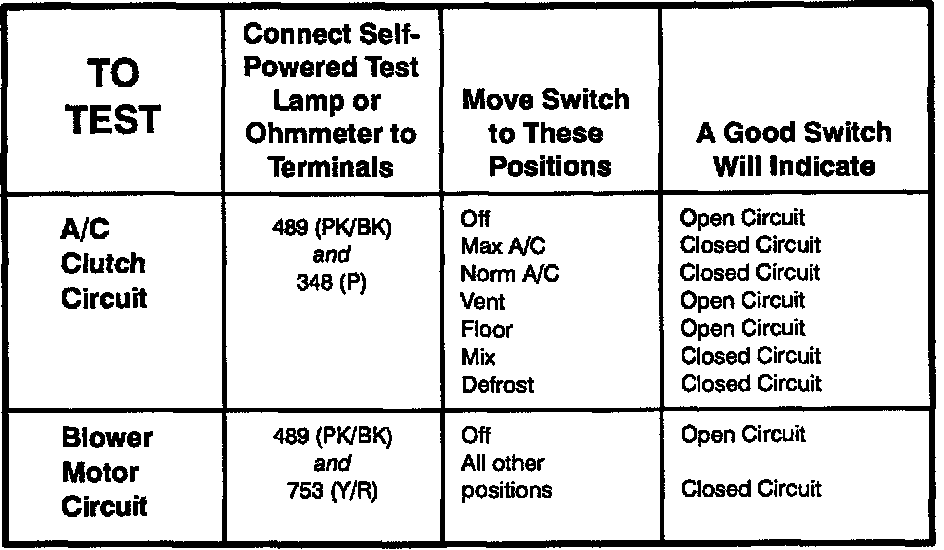

Component Testing Procedure:

TERMINAL IDENTIFICATION

Function Selector Switch - Terminal Locations:

SCHEMATIC

Schematic:
