Home >> Ford >> 1992 >> F 150 4WD Pickup V8-351 5.8L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Relays and Modules - Instrument Panel >> Audible Warning Device Control Module >> Diagrams

Audible Warning Device Control Module: Diagrams

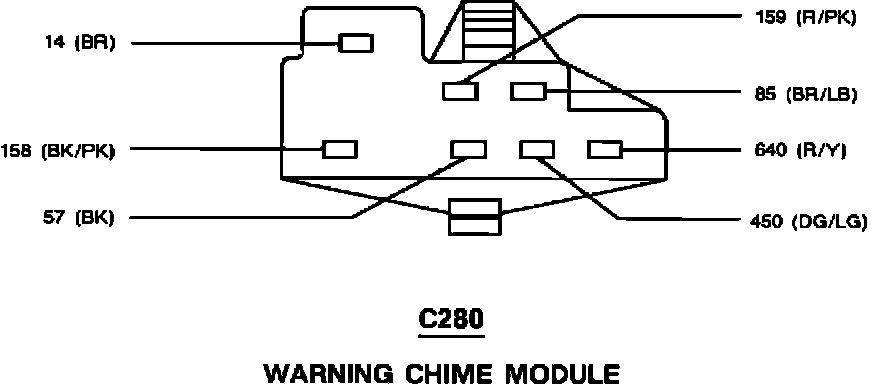

Connector Face/Pinout Charts:
